The Cisco® Catalyst® 9115 Series Wi-Fi 6 Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent.
Hyperconnectivity with steady performance in demanding environments. Exponential growth of Internet of Things (IoT) devices and next-generation applications. Advanced persistent security threats. All of these require a wireless network that provides resiliency and superior connectivity, integrated security with advanced classification and containment, and hardware and software innovations to automate, secure, and simplify networks. Updating your wireless infrastructure to one that will meet these needs is paramount for today’s digital business. The new generation of Cisco Catalyst 9100 Access Points, with high-performance Wi-Fi 6 (802.11ax) capabilities and innovations in RF performance, security, and analytics, enables end-to-end digitization and helps accelerate the rollout of business services by delivering beyond Wi-Fi.
The Cisco Catalyst 9115 Series Access Points are enterprise-class products that will address your current and future needs. They are the first step to updating your network to take better example of all of the features and benefits that Wi-Fi 6 provides.
● Wi-Fi 6 certifiable
● Three radios: 2.4 GHz (4x4), 5 GHz (4x4), and BLE
● OFDMA and MU-MIMO
● Multigigabit support
● Internal or external antenna
● Available with optional embedded wireless controller
Specifications
Antenna
Antenna connector type
RP-TNC
Antenna direction type
Omni-directional
Antenna type
Internal & external
Design
LED indicators
Status
Product colour
Grey
Features
2.4 GHz
Yes
5 GHz
Yes
Bluetooth
Yes
Bluetooth version
5.0
Cabling technology
10/100/1000Base-T(X)
Cyclic Shift Diversity (CSD)
Yes
Ethernet LAN data rates
100/1000/2500 Mbit/s
Maximal-Ratio Combining (MRC)
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Networking standards
IEEE 802.11ax
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Packaging content
Quantity per pack
1 pc(s)
Performance
Flash memory
1024 MB
Internal memory
2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
Power
Power over Ethernet (PoE)
Yes
Vendor information
Brand Name
Cisco
Warranty
1
Product Details
2026-01-13
New
Data sheet
Flash memory
1024 MB
2.4 GHz
Yes
5 GHz
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Ethernet-LAN-Datenraten
100/1000/2500 Mbit/s
Netzwerkstandards
IEEE 802.11ax
Stromversorgung über Ethernet (PoE)
Yes
Ethernet-LAN-Anschlüsse (RJ-45)
1
Antennenrichtungstyp
Omni-directional
Verkabelungstechnik
10/100/1000Base-T(X)
Anzahl der USB 2.0-Anschlüsse
1
Antennenanschlusstyp
RP-TNC
Antenna type
Internal & external
Bluetooth
Yes
LED-Anzeigen
Status
Bluetooth-Version
5.0
Brand Name
Cisco
Warranty
1
Betriebstemperatur (TT)
-20 - 50 °C
Lagertemperatur (TT)
-30 - 70 °C
Relative Luftfeuchtigkeit im Betrieb (HH)
10 - 90 %
Menge pro Packung
1 Stück(e)
Interner Speicher
2048 MB
Produktfarbe
Grey
Cyclic Shift Diversity (CSD)
Yes
Maximal-Ratio-Combining (MRC)
Yes
Specific References
MPN

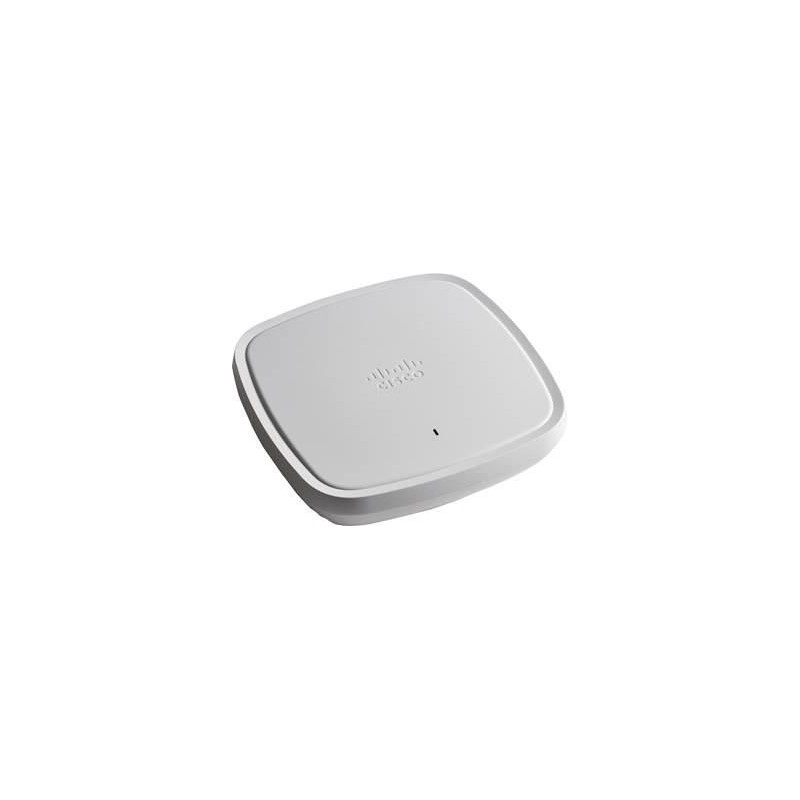

C9115AXE-EWC-E-RF
4x4 downlink MU-MIMO, 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45), USB 2.0, Indoor, challenging environments, with external antennas, with embedded wireless controller
