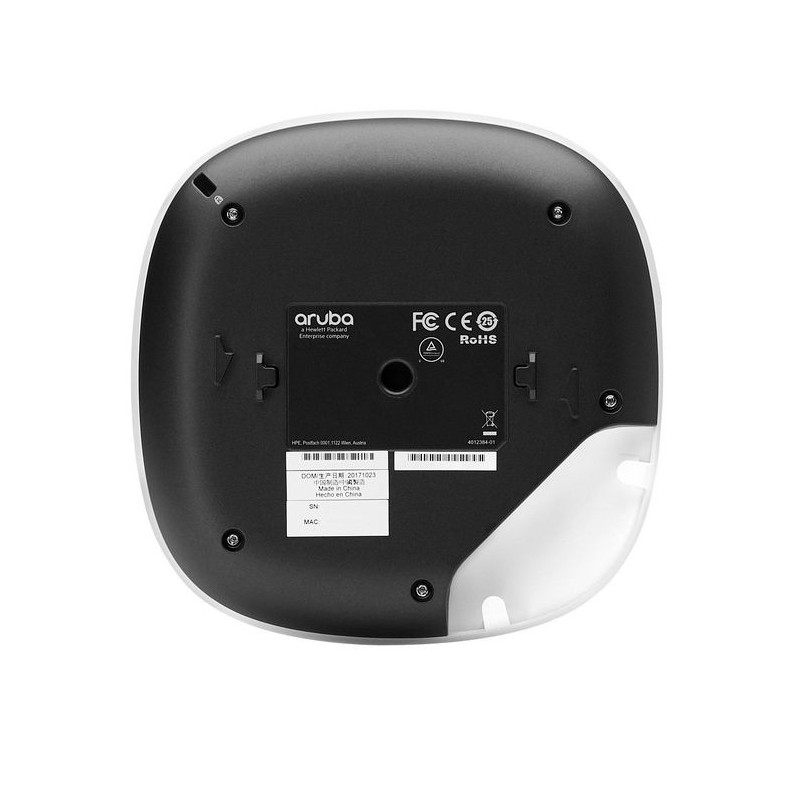

Aruba AP-303 (RW) Dual 2x2:2 MU-MIMO Radio Internal Antennas Unified Campus AP
CHF232.1
Tax included
CHF214.7 Tax excluded
Delivery in 4-5 days
Quantity
Last items in stock
1 Item

Description
The affordable 303 Series 802.11ac Wave 2 campus access points deliver high performance to medium density enterprise environments such as schools, retail branches, warehouses, hotels and enterprise offices, where the environment is cost sensitive. As a Unified AP, they can be operated with (ArubaOS mode) or without a controller (InstantOS mode).

The AP-303P includes a second Ethernet port with PoE out to daisy-chain the wired network to connect and power any network device such as IP camera, IoT gateway, or even a second access point. This feature results in reducing the cost and simplifying the installation of multiple devices by sharing switch ports and cabling. The AP-303P has integrated Zigbee radio for IoT connectivity.
 

With an integrated Bluetooth radio, the 303 APs can be used as an Aruba beacon for advanced location and indoor wayfinding, asset tracking, and proximity-based push notification services. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

Specifications

Antenna

Antenna direction typeOmni-directional
Antenna gain level (max)5.9 dBi
Antenna typeInternal
Antennas quantity2

Design

Cable lock slotYes
PlacementCeiling/Wall
Product colourWhite

Features

2.4 GHzYes
5 GHzYes
Ethernet LAN data rates10/100/1000 Mbit/s
Maximum data transfer rate1167 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
MIMOYes
MIMO typeMulti User MIMO
Modulation16-QAM/256-QAM/64-QAM/BPSK/CCK/QPSK
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Number of users256 user(s)
Spread spectrum methodDSSS/OFDM

Operational conditions

Operating relative humidity (H-H)5 - 93 %
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
USB connector typeMicro-USB

Power

Power consumption (max)11.5 W
Power over Ethernet (PoE)Yes

Security

Security algorithmsNot supported

Vendor information

Brand NameHewlett Packard Enterprise
Warranty1
Product Details
1 Item
Refurbished

Data sheet

2.4 GHz
Yes
5 GHz
Yes
Placement
Ceiling/Wall
MIMO
Yes
MIMO type
Multi User MIMO
Modulation
16-QAM/256-QAM/64-QAM/BPSK/CCK/QPSK
Ethernet-LAN-Datenraten
10/100/1000 Mbit/s
Netzwerkstandards
IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Stromversorgung über Ethernet (PoE)
Yes
Ethernet-LAN-Anschlüsse (RJ-45)
1
Antennen Menge
2
Antennenrichtungstyp
Omni-directional
Antennenverstärkungspegel (max.)
5.9 dBi
Maximum Datenübertragungsrate
1167 Mbit/s
Anzahl der USB 2.0-Anschlüsse
1
Antenna type
Internal
Sicherheitsalgorithmen
Not supported
Schlitz für Kabelschloss
Yes
Stromverbrauch (max.)
11.5 W
USB-Anschlusstyp
Micro-USB
Brand Name
Hewlett Packard Enterprise
Warranty
1
Betriebstemperatur (TT)
0 - 40 °C
Lagertemperatur (TT)
-40 - 70 °C
Relative Luftfeuchtigkeit im Betrieb (HH)
5 - 93 %
Produktfarbe
White
Anzahl der Nutzer
256 Benutzer
Maximum Datenübertragungsrate (2,4 GHz)
300 Mbit/s
Maximum Datenübertragungsrate (5 GHz)
867 Mbit/s
Spread-Spektrum-Methode
DSSS/OFDM

Specific References

EAN13
5715328048478
MPN
JZ320-61001-RFB
