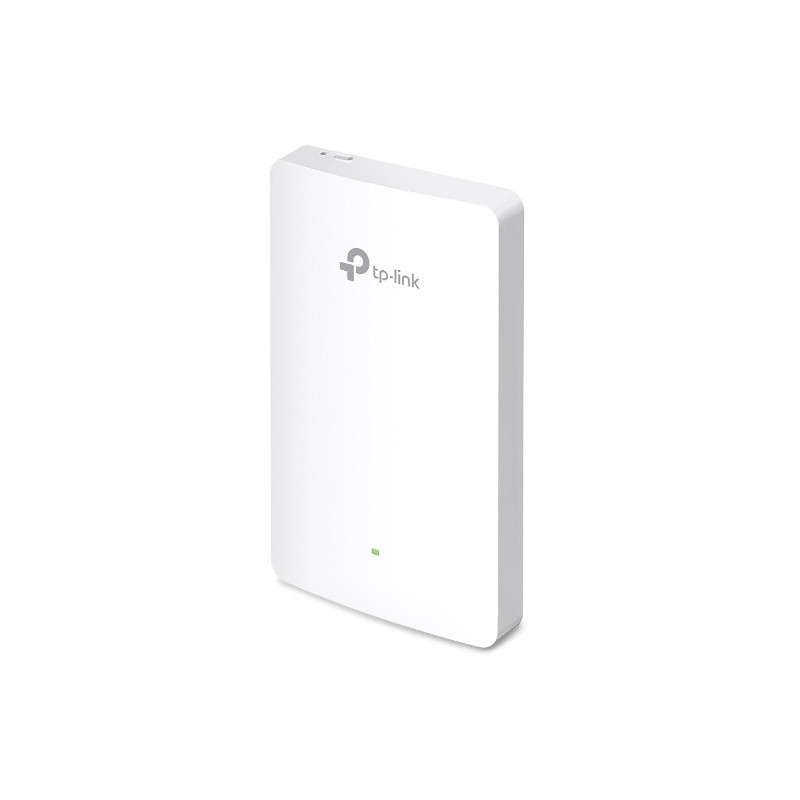

EAP615-WALL

Data sheet

Product color

White

USB 2.0 ports quantity

0

Ethernet LAN (RJ-45) ports

4

Ethernet LAN data rates

10,100,1000 Mbit/s

Harmonized System (HS) code

85176990

Width

5.63" (143 mm)

Height

0.787" (20 mm)

Certification

CE, FCC, RoHS

Depth

3.39" (86 mm)

Package weight

11.6 oz (330 g)

Package width

15.2" (385 mm)

Package depth

19.5" (495 mm)

Package height

8.27" (210 mm)

LED indicators

Power

On/off switch

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Maximum data transfer rate

1774 Mbit/s

Antenna type

Internal

Networking standards

Cabling technology

10/100/1000Base-T(X)

Security algorithms

WPA, WPA2, WPA3

Quality of Service (QoS) support

Yes

Reset button

Yes

Antennas quantity

4

Firmware upgradeable

Yes

2.4 GHz

Yes

5 GHz

Yes

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

Automatic channel selection

Yes

Rate limiting

Yes

Wireless isolation

Yes

Number of SSID supported

16

Power over Ethernet (PoE)

Yes

Placement

Wall

Antenna gain level (max)

4 dBi

6 GHz

No

Maximum data transfer rate (5 GHz)

1201 Mbit/s

MIMO

Yes

MIMO type

Multi User MIMO

VLAN support

Yes

Band steering

Yes

Airtime Fairness (ATF)

Yes

BeamForming

Yes

Transmitting power (CE)

20 dBm

Transmitting power (FCC)

21 dBm

Service Set Identifier (SSID) features

Multiple SSIDs

Access Control List (ACL)

Yes

Syslog

Yes

Remote Authentication Dial-In User Service (RADIUS)

Yes

Automatic channel scanning

Yes

Specific References

UPC

840030703607

EAN13

4897098683606

MPN

EAP615-WALL
