Description

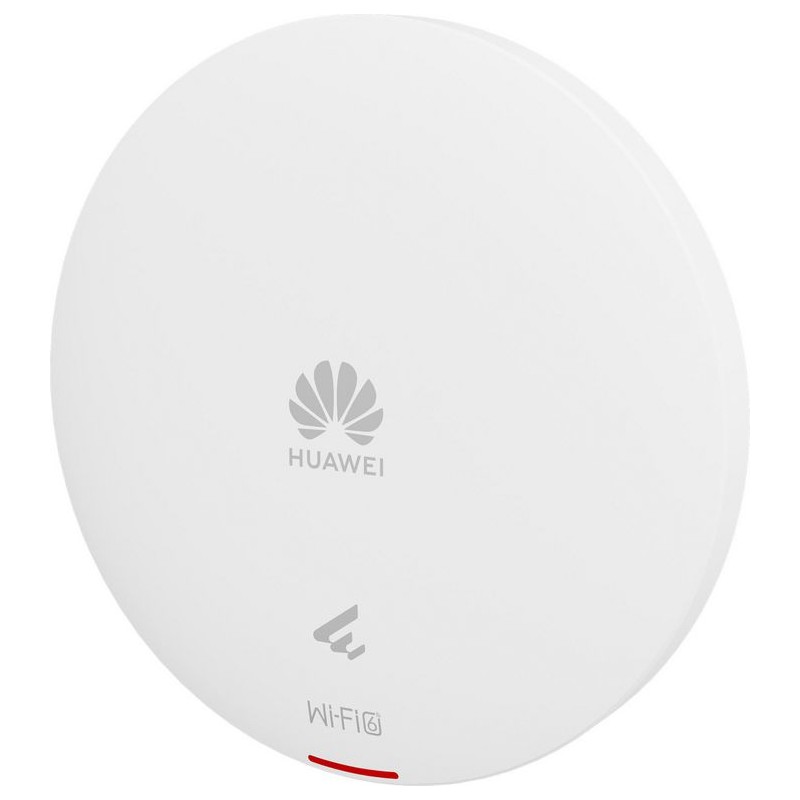

Huawei eKitEngine AP361 is an indoor access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard. It provides services simultaneously on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, achieving a maximum device rate of 1.775 Gbps. This AP features high bandwidth, high concurrency, and compact size, facilitating flexible deployment and saving customer investment. Such strengths make the AP a good fit for indoor coverage scenarios, such as small and micro enterprise workplaces, small- and medium-sized hospitals, commercial real estate, budget chain hotels, and primary and secondary schools.
- Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2), providing a maximum rate of 575 Mbps and 1.2 Gbps, respectively, and a rate of up to 1.775 Gbps for the device
- 1 x GE electrical port
- Built-in smart antenna: automatically adjusts the coverage direction and signal strength based on the intelligent switchover algorithm. Such capability enables the AP to flexibly adapt to the application environment changes, providing accurate and stable coverage as STAs move
- Working modes: Fit, Fat, and cloud management
- Deployment and O&M through the HUAWEI eKit app
Specifications
Antenna
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5 dBi |
| Antenna type | Internal |
Design
| LED indicators | Yes |
| Placement | Ceiling/Wall |
| Product colour | White |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Adaptive bandwidth management | Yes |
| Auto MDI/MDI-X | Yes |
| Automatic channel scanning | Yes |
| BeamForming | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Fast roaming | Yes |
| Frequency band | 2.4/5 GHz |
| Maximal-Ratio Combining (MRC) | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11d/IEEE 802.11e/IEEE 802.11g/IEEE 802.11h/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.11w/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Spread spectrum method | OFDMA |
| Tunnel forwarding | Yes |
| Virtual LAN features | SSID-based VLAN assignment |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| WLAN channel features | WLAN channel management/WLAN channel rate adjustment |
Management features
| Web-based management | Yes |
Operational conditions
| Operating altitude | -60 - 5000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Packaging content
| Number of products included | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Power consumption (max) | 8.8 W |
| Power over Ethernet (PoE) | Yes |
Protocols
| DHCP client | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL)/IPv6 source address validation improvement (SAVI) |
Security
| Access Control List (ACL) | Yes |
| Blacklist | Yes |
| DHCP snooping | Yes |
| Number of SSID supported | 6 |
| Security algorithms | 128-bit WEP/152-bit WEP/64-bit WEP/WPA2/WPA2-PSK/WPA3/WPA3-SAE |
| Whitelist | Yes |
| Wireless Intrusion Detection System (WIDS) | Yes |
| Wireless Intrusion Prevention System (WIPS) | Yes |
Technical details
| Compliance certificates | REACH/RoHS/WEEE |
Vendor information
| Brand Name | HUAWEI eKit |
| Warranty | 3 |
Product Details
50086871
266 Items
New
Data sheet
- Auto MDI/MDI-X
- Yes
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- Wi-Fi Multimedia (WMM)/(WME)
- Yes
- Placement
- Ceiling/Wall
- 6 GHz
- No
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Virtual LAN features
- SSID-based VLAN assignment
- BeamForming
- Yes
- Antenna features
- Integrated antenna
- DHCP client
- Yes
- Fast roaming
- Yes
- Dynamic Frequency Selection (DFS)
- Yes
- DHCP snooping
- Yes
- Webbasierte Verwaltung
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Netzwerkstandards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11d/IEEE 802.11e/IEEE 802.11g/IEEE 802.11h/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.11w/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3af
- Stromversorgung über Ethernet (PoE)
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- Antennenverstärkungspegel (max.)
- 5 dBi
- Maximum Datenübertragungsrate
- 1775 Mbit/s
- Anzahl der enthaltenen Produkte
- 1 Stück(e)
- Quality of Service (QoS)-Unterstützung
- Yes
- Schnellstartanleitung
- Yes
- Anzahl der USB 2.0-Anschlüsse
- 0
- Antenna type
- Internal
- Compliance certificates
- REACH/RoHS/WEEE
- LED-Anzeigen
- Yes
- Frequenzband
- 2.4/5 GHz
- Sicherheitsalgorithmen
- 128-bit WEP/152-bit WEP/64-bit WEP/WPA2/WPA2-PSK/WPA3/WPA3-SAE
- Betriebshöhe
- -60 - 5000 m
- Stromverbrauch (max.)
- 8.8 W
- VLAN-Unterstützung
- Yes
- Brand Name
- HUAWEI eKit
- Warranty
- 3
- Betriebstemperatur (TT)
- -10 - 50 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 95 %
- Menge pro Packung
- 1 Stück(e)
- Produktfarbe
- White
- Maximum Datenübertragungsrate (2,4 GHz)
- 575 Mbit/s
- Maximum Datenübertragungsrate (5 GHz)
- 1200 Mbit/s
- Anzahl der unterstützten SSIDs
- 6
- IPv4- und IPv6-Funktionen
- IPv4/IPv6 access-control list (ACL)/IPv6 source address validation improvement (SAVI)
- Cyclic Shift Diversity (CSD)
- Yes
- Maximal-Ratio-Combining (MRC)
- Yes
- Spread-Spektrum-Methode
- OFDMA
- Zyklische Verzögerungsdiversität (CDD)
- Yes
- Automatischer Kanalsuchlauf
- Yes
- Adaptive Bandbreitenverwaltung
- Yes
- Funktionen des WLAN-Kanals
- WLAN channel management/WLAN channel rate adjustment
- Tunnelweiterleitung
- Yes
- Schwarze Liste
- Yes
- Weiße Liste
- Yes
- Wireless Intrusion Detection System (WIDS)
- Yes
- Wireless Intrusion Prevention System (WIPS)
- Yes
Specific References
- EAN13
- 6901443451135
- MPN
- AP361
