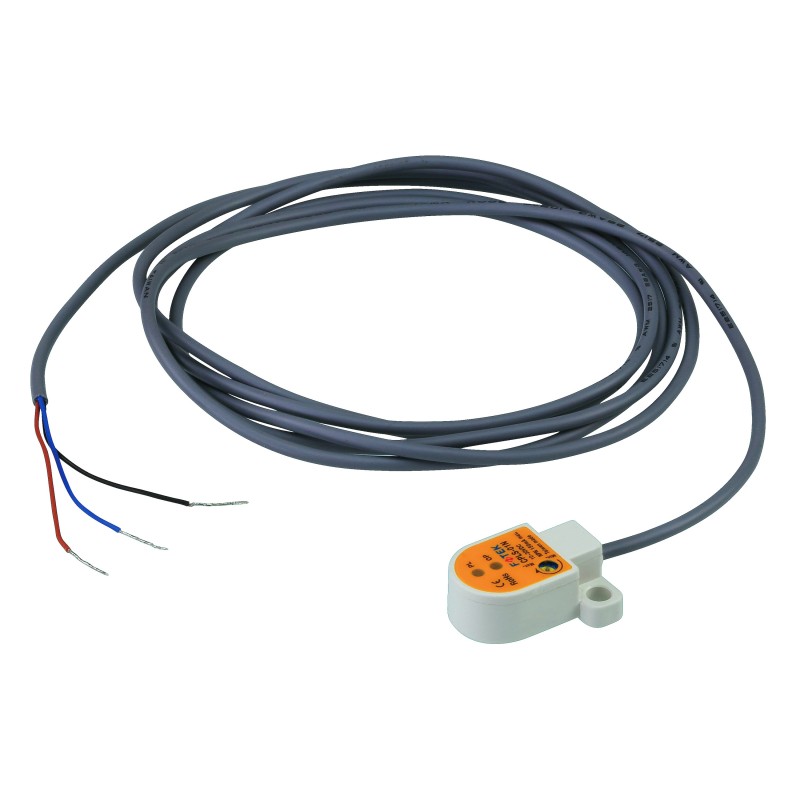

EA1540

The EA1540 Capacitive Leakage Sensor can automatically detect and notify users of any liquid in close proximity with the connected PDU. When any liquid is detected, the EA1540's beeper sounds, and its red LED lights up, calling for immediate attention and response, thereby effectively decreases the risks of damages to both the PDU and powered devices. It is ideal for PDU installation environments such as subway data centers located underground.

Suitable for a wide range of applications, the EA1540 features a compact and anti-interference design, allowing it to avoid external signals from affecting its normal operations while saving valuable space for critical work. Built with corrosion-resistant materials, it is adaptable even to hazardous environments.

The EA1540 is the perfect solution for those who need to ensure PDU’s daily operations and prevent any potential risks of device damages in advance.

ATEN EA1540. Product type: Sensor & alert system, Product color: Black, Gray, Connectivity technology: Wired. Power source type: DC, AC input voltage: 10 - 30 V, Nominal current output: 0.15 A. Package volume: 566.34 cm³, Package width: 3.35" (85 mm), Package depth: 4.33" (110 mm). Country of origin: Taiwan. Master (outer) case volume: 25485.16 cm³, Master (outer) case width: 15" (380 mm), Master (outer) case length: 5.51" (140 mm)

Product type	Sensor & alert system
Product color	Black, Gray
Connectivity technology	Wired
Housing material	Polypropylene (PP)
Insulation resistance	100 MΩ
AWG wire size	22
International Protection (IP) code	IP66
Power source type	DC
AC input voltage	10 - 30 V
Nominal current output	0.15 A
Power consumption	20 mA
Package volume	566.34 cm³
Package width	3.35" (85 mm)
Package depth	4.33" (110 mm)
Package height	1.77" (45 mm)
Package weight	2.76 lbs (1.25 kg)
Country of origin	Taiwan
Master (outer) case volume	25485.16 cm³
Master (outer) case width	15" (380 mm)
Master (outer) case length	5.51" (140 mm)
Master (outer) case height	18.9" (480 mm)
Master (outer) case weight	25.4 oz (720 g)
Quantity per master (outer) case	12 pc(s)
