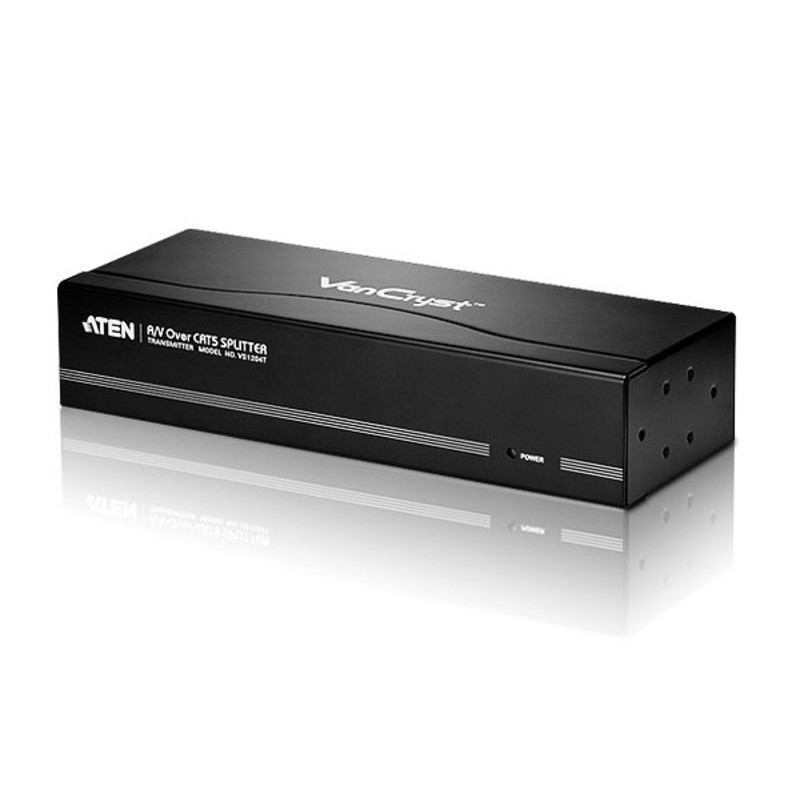

VS1204T-AT-G

Data sheet

Product color

Black

Quantity per pack

1 pc(s)

Ethernet LAN (RJ-45) ports

8

Weight

34.2 oz (970 g)

Harmonized System (HS) code

85176990

Maximum resolution

1920 x 1200 pixels

Width

2.96" (75.1 mm)

Height

1.73" (44 mm)

AC input voltage

5.3 V

Depth

7.87" (200 mm)

Package weight

2.4 lbs (1.09 kg)

Master (outer) case width

9.84" (250 mm)

Master (outer) case length

12.8" (325 mm)

Master (outer) case height

6.89" (175 mm)

Master (outer) case weight

13 lbs (5.9 kg)

Quantity per master (outer) case

5 pc(s)

Package width

2.32" (59 mm)

Package depth

9.41" (239 mm)

Package height

6.3" (160 mm)

LED indicators

Yes

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Number of displays supported

8

Manual

Yes

Housing material

Metal

Power consumption (typical)

7.04 W

Video port type

VGA

Maximum refresh rate

60 Hz

Master (outer) case net weight

10.7 lbs (4.85 kg)

Maximum operating distance

11811" (300 m)

Cable types supported

Cat5, Cat5e

Bandwidth

225 MHz

Rack mounting

Yes

Video ports quantity

2

Video out

VGA

Audio ports quantity

2

Specific References

EAN13

4710423777316

MPN

VS1204T-AT-G
