36761 - 832513

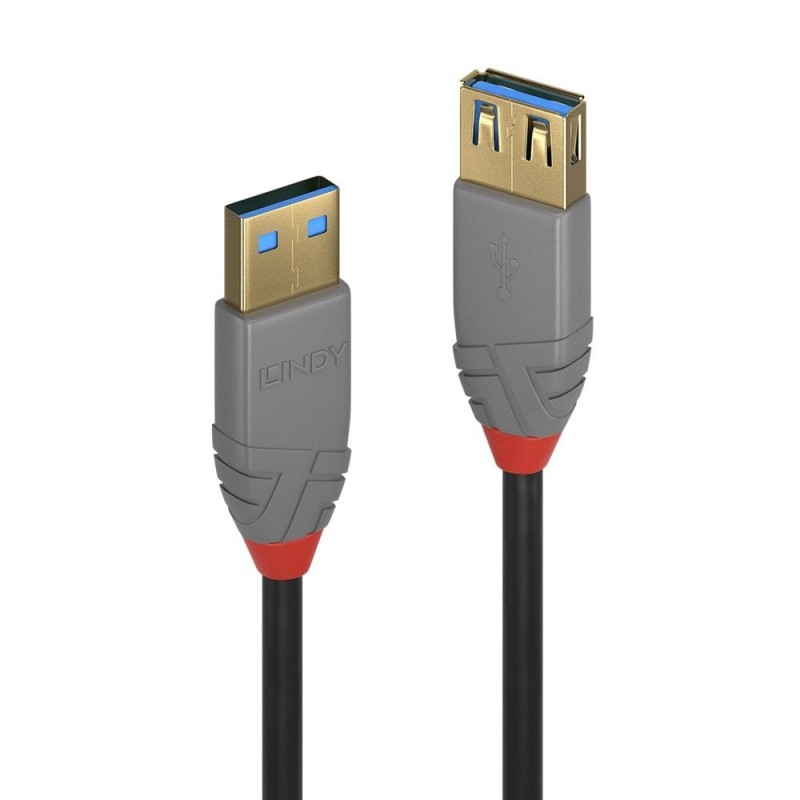

Lindy 36761, 39.4" (1 m), USB A, USB A, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black
Description
The Anthra Line USB 3.2 Type A to A Extension cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
Anthra Line USB 3.2 Type A to A Extension cables are available in the following lengths: 0.5m, 1m, 2m and 3m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Lindy 36761. Cable length: 39.4" (1 m). Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product color: Black
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
Anthra Line USB 3.2 Type A to A Extension cables are available in the following lengths: 0.5m, 1m, 2m and 3m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Lindy 36761. Cable length: 39.4" (1 m). Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product color: Black
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Product color | Black |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/28/30 |
| Connector material | Gold |
| Contact material | Copper |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Yes |
| Connector shield material | Aluminum |
| Connector housing material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 5000 Mbit/s |
| Maximum data transfer rate | 5 Gbit/s |
| Cable type | Round cable |
| Nominal attenuation | 0.5-5m: 0.5MHz-7.5GHz |
| Cable length | 39.4" (1 m) |
| Cable diameter | 0.217" (5.5 mm) |
| Bend radius (min) | 1.89" (4.8 cm) |
| Connector 1 dimensions (WxDxH) | 0.61 x 1.38 x 0.307" (15.5 x 35 x 7.8 mm) |
| Connector 2 dimensions (WxDxH) | 0.669 x 1.38 x 0.386" (17 x 35 x 9.8 mm) |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Sustainability certificates | UL ECOLOGO |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Compliance certificates | REACH, RoHS |
| Certification | RoHS, REACH, UL |
| Harmonized System (HS) code | 84733080 |
| Warranty period | 10 year(s) |
Product Details
832513
2429 Items
New
Data sheet
- Product color
- Black
- Quantity per pack
- 1 pc(s)
- Package type
- Polybag
- Cable length
- 39.4" (1 m)
- Connector 1
- USB A
- Connector 2
- USB A
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Harmonized System (HS) code
- 84733080
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Certification
- RoHS, REACH, UL
- Warranty period
- 10 year(s)
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- 0 - 60 °C
- USB version
- USB 3.2 Gen 1 (3.1 Gen 1)
- Maximum data transfer rate
- 5000 Mbit/s
5 Gbit/s - Cable type
- Round cable
- Sustainability certificates
- UL ECOLOGO
- Compliance certificates
- REACH, RoHS
- Connector contacts plating
- Gold
- AWG wire size
- 24/28/30
- Bend radius (min)
- 1.89" (4.8 cm)
- Conductor material
- Tinned copper
- Nominal attenuation
- 0.5-5m: 0.5MHz-7.5GHz
- Connector housing material
- Polyvinyl chloride (PVC)
- Connector material
- Gold
- Contact material
- Copper
- Cable diameter
- 0.217" (5.5 mm)
- Connector 1 dimensions (WxDxH)
- 0.61 x 1.38 x 0.307" (15.5 x 35 x 7.8 mm)
- Connector 2 dimensions (WxDxH)
- 0.669 x 1.38 x 0.386" (17 x 35 x 9.8 mm)
- Cable jacket material
- Polyvinyl chloride (PVC)
- Connector shielding
- Yes
- Connector shield material
- Aluminum
Specific References
- EAN13
- 4002888367615
- MPN
- 36761
