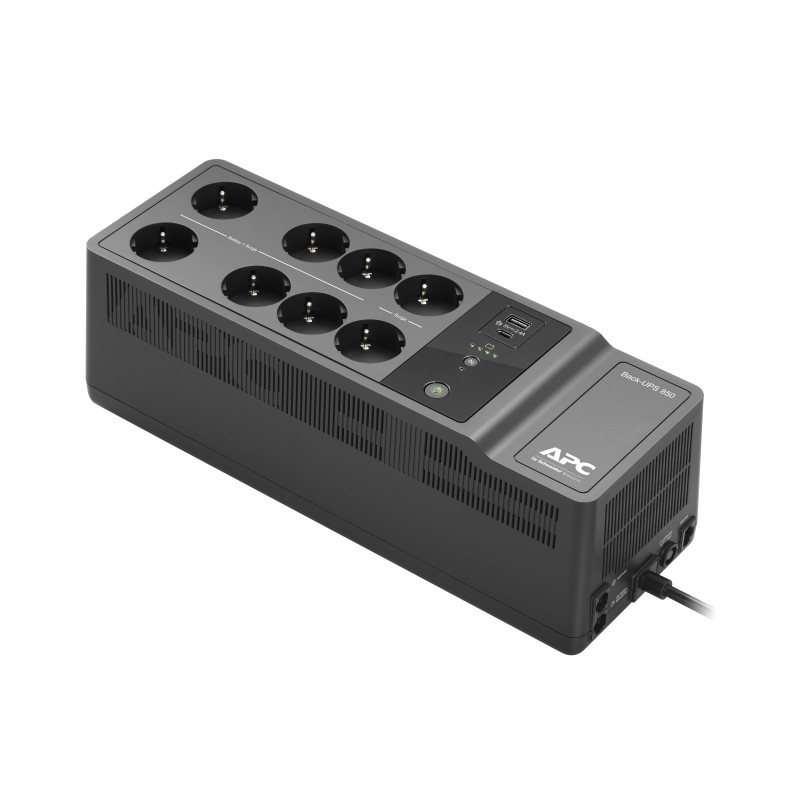

BE850G2-GR

Data sheet

Product color

Black

USB 2.0 ports quantity

2

Ethernet LAN (RJ-45) ports

0

Cable length

72" (1.83 m)

Weight

9.92 lbs (4.5 kg)

Harmonized System (HS) code

85078000

Output power

520 W

Connector(s)

Type F

Input frequency

47/63 Hz

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

93 Ah

Width

5.12" (130 mm)

Height

4.72" (120 mm)

Certification

REACH, CE, EAC

Depth

14.4" (365 mm)

Package weight

11 lbs (5 kg)

Master (outer) case weight

35.3 lbs (16 kg)

Package width

7.32" (186 mm)

Package depth

17.4" (441 mm)

Package height

7.48" (190 mm)

LED indicators

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Battery recharge time

16 h

USB connectivity

Yes

Sustainability certificates

Green Premium

Manual

Yes

AC outlets quantity

8 AC outlet(s)

Compliance certificates

RoHS

Maximum current

6 A

Output frequency

47/63 Hz

Operating altitude

0 - 35433.1" (0 - 900 m)

Non-operating altitude

0 - 4500 m

AC outlet types

Type F

Noise level

45 dB

Surge protection

Yes

UPS topology

Standby (Offline)

Output power capacity

0.85 kVA

Waveform

Sine

Output operation voltage (min)

220 V

Output operation voltage (max)

230 V

Automatic Voltage Regulation (AVR)

No

Surge energy rating

310 J

Audible alarm(s)

Yes

Typical backup time at full load

2 min

Typical backup time at half load

9 min

Battery life (max)

5 year(s)

Hot-swap battery

Yes

Automatic battery test

Yes

Input operation voltage (min)

220 V

Input operation voltage (max)

230 V

Number of type F outputs

8

Cold start

Yes

Formfaktor

Compact

Surge protection features

Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone

Audible alarm modes

Alarm when on battery, Low battery alarm, Overload alarm

Specific References

UPC

731304347286

EAN13

0731304347286

MPN

BE850G2-GR
