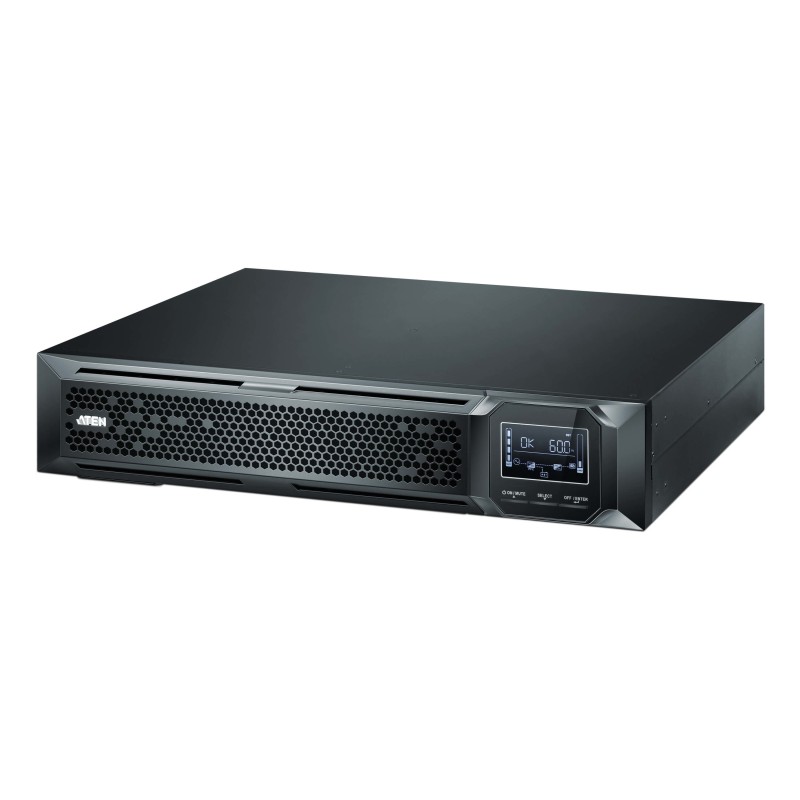

OL3000HV-AT-G - OL3000HV-AT-G
ATEN OL3000HV-AT-G, Double-conversion (Online), 3 kVA, 3000 W, Sine, 110 V, 300 V
Description
The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions
ATEN OL3000HV-AT-G. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 72 V. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Certification: CE RoHS
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions
ATEN OL3000HV-AT-G. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 72 V. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Certification: CE RoHS
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 3000 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Response time | 4 ms |
| Efficiency | 90% |
| Efficiency (ECO mode) | 96% |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Noise level | 50 dB |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 72 V |
| Number of battery cells | 6 |
| Number of batteries supported | 6 |
| Typical backup time at full load | 2.96 min |
| Typical backup time at half load | 10.1 min |
| Battery recharge time | 3 h |
| Charging current | 2 A |
| Cold start | Yes |
| Form factor | Rackmount/Tower |
| Product color | Black |
| Rack capacity | 2U |
| Cooling type | Active |
| Built-in fan | Yes |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CE RoHS |
| Cables included | Output power cable, Power load cable, RS-232, USB cable |
| Manual | Yes |
| Width | 17.2" (438 mm) |
| Depth | 3.46" (88 mm) |
| Height | 24.8" (630 mm) |
| Weight | 60.8 lbs (27.6 kg) |
| Package width | 3.46" (88 mm) |
| Package depth | 17.2" (438 mm) |
| Package height | 24.8" (630 mm) |
| Package weight | 76.7 lbs (34.8 kg) |
| Master (outer) case net weight | 60.8 lbs (27.6 kg) |
| Harmonized System (HS) code | 85078000 |
| Master (outer) case width | 23.6" (600 mm) |
| Master (outer) case length | 29.9" (760 mm) |
| Master (outer) case height | 9.45" (240 mm) |
| Master (outer) case weight | 76.7 lbs (34.8 kg) |
| Quantity per master (outer) case | 1 pc(s) |
Product Details
OL3000HV-AT-G
2026-03-09
New
Data sheet
- Product color
- Black
- USB 2.0 ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- Weight
- 60.8 lbs (27.6 kg)
- Harmonized System (HS) code
- 85078000
- Output power
- 3000 W
- Input frequency
- 40/70 Hz
- Serial ports quantity
- 1
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of battery cells
- 6
- Battery capacity
- 9 Ah
- Width
- 17.2" (438 mm)
- Height
- 24.8" (630 mm)
- Certification
- CE
RoHS - Depth
- 3.46" (88 mm)
- Battery voltage
- 72 V
- Package weight
- 76.7 lbs (34.8 kg)
- Format
- Rackmount/Tower
- Master (outer) case width
- 23.6" (600 mm)
- Master (outer) case length
- 29.9" (760 mm)
- Master (outer) case height
- 9.45" (240 mm)
- Master (outer) case weight
- 76.7 lbs (34.8 kg)
- Quantity per master (outer) case
- 1 pc(s)
- Package width
- 3.46" (88 mm)
- Package depth
- 17.2" (438 mm)
- Package height
- 24.8" (630 mm)
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 50 °C
- Operating relative humidity (H-H)
- 20 - 90%
- Storage relative humidity (H-H)
- 10 - 95%
- Cables included
- Output power cable, Power load cable, RS-232, USB cable
- Efficiency
- 90%
- Battery recharge time
- 3 h
- Cooling type
- Active
- Rack capacity
- 2U
- USB port
- Yes
- Manual
- Yes
- AC outlets quantity
- 9 AC outlet(s)
- Number of batteries supported
- 6
- Response time
- 4 ms
- Master (outer) case net weight
- 60.8 lbs (27.6 kg)
- AC outlet types
- C13 coupler, C19 coupler
- Built-in fan
- Yes
- Power plug
- C20 coupler
- Noise level
- 50 dB
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 3 kVA
- Waveform
- Sine
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Typical backup time at full load
- 2.96 min
- Typical backup time at half load
- 10.1 min
- USB port type
- USB Type-B
- RS-232 ports
- 1
- Serial interface type
- RS-232
- Input operation voltage (min)
- 110 V
- Input operation voltage (max)
- 300 V
- Efficiency (ECO mode)
- 96%
- Crest factor
- 3:1
- ECO mode
- Yes
- Serial interface
- Yes
- Charging current
- 2 A
- Cold start
- Yes
Specific References
- EAN13
- 4719264647994
- MPN
- OL3000HV-AT-G
