RTL10B1-F2AE0X0000A6

A VERSATILE RUGGED TABLET PLATFORM RUGGED TO THE CORE
The Zebra L10 rugged platform, formerly manufactured by Xplore Technologies, offers a variety of tablet configurations and a shared accessory ecosystem that sets a new standard in office, vehicle and field-based computing.

Whether your mobile workers prefer a slate tablet (XSLATE L10), a tablet with a rigid-handle and built-in barcode reader option (XPAD L10), or a 2-in-1 laptop/tablet with a full-featured keyboard (XBOOK L10), the functional flexibility of the Zebra L10 ensures that your workers have the right computing tool for their job. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computer platform.

GET THROUGH TASKS FASTER
With more CPU options than ever, you’re guaranteed that the performance-driven L10 rugged tablet platform will be the right fit for your organization and budget, whatever your operating system. For Windows, choose between three different 8th Generation Intel Core-Series processors or an Intel Pentium-series processor. Add a PCIe solid state drive (SSD) for an extra speed boost. For Android, the Qualcomm Snapdragon 660 gives you power and performance to spare. The L10 is available with a range of RAM and storage options for every business and agency application.

EXPAND YOUR USAGE CAPABILITIES
The L10 combines latest-generation NFC, Bluetooth, 802.11ac Wi-Fi, GPS and 4G LTE mobile broadband technologies to provide uninterrupted connectivity. And each L10 rugged tablet can be equipped with workflow specific tools needed for nearly any application. This includes an optional true serial or HDMI-in port, UHF RFID reader (AEI), and built-in bar code reader (XPad only). RJ-45 jacks and multiple USB ports are standard on all models. Front facing and 13 MP rear facing cameras capture images and video, while built-in microphones support VoIP collaboration.

USE IT VIRTUALLY ANYWHERE
The L10 platform defines a new standard of rugged tablets. It is rated for a 6 ft. drop and is subjected to a raft of MIL-STD-810G tests. It maintains its IP65 rating even with the port doors open. It can be used in cold storage, blowing dust, or driving rain. With daylight or sunlight viewable reinforced glass displays and an active digitizer option, your screen will be easy to read wherever you use it. Plus, the optional 5 pass-through antennas means it's ideal for mounting in vehicles of all types.

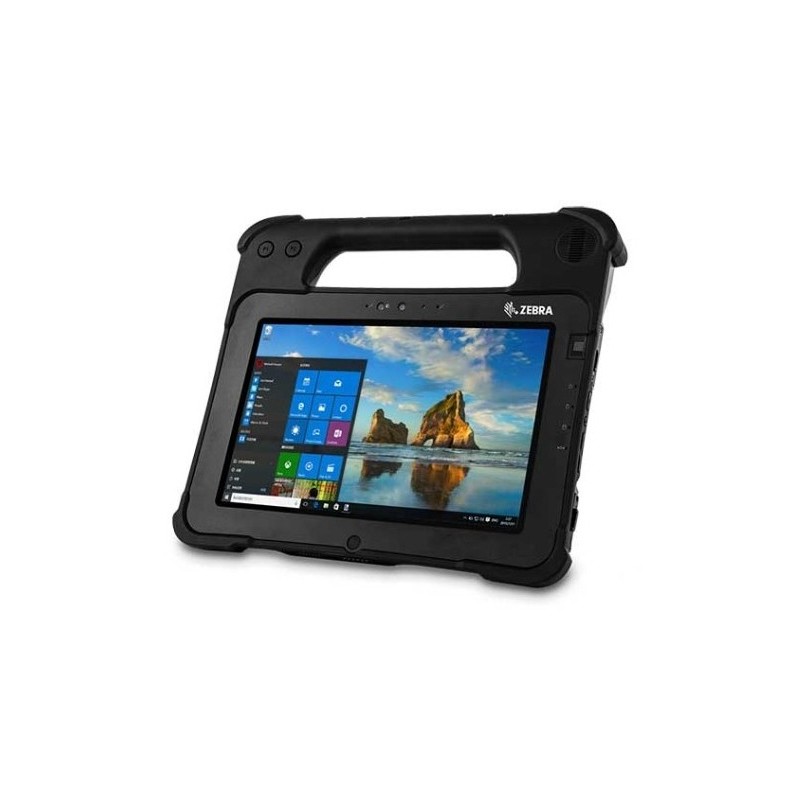

Zebra XPAD L10. Display diagonal: 10.1", Display resolution: 1920 x 1200 pixels. Internal storage capacity: 128 GB. Processor frequency: 2.2 GHz, Processor family: Snapdragon, Processor model: 660. Internal memory: 4 GB. Rear camera resolution (numeric): 13 MP, Front camera resolution (numeric): 5 MP. Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Assisted GPS (A-GPS). Card reader integrated. Weight: 3.09 lbs (1.4 kg). Operating system installed: Android 8.0. Product color: Black

Display diagonal	10.1"
Display resolution	1920 x 1200 pixels
Display brightness	1000 cd/m²
Display glass type	Gorilla Glass
Native aspect ratio	16:10
Processor family	Snapdragon
Processor model	660
Processor frequency	2.2 GHz
Processor cores	8
Internal memory	4 GB
Internal memory type	LPDDR4-SDRAM
Internal storage capacity	128 GB
Card reader integrated	Yes
Storage media	eMMC
Compatible memory cards	SDXC
Graphics card family	Adreno
Built-in speaker(s)	Yes
Built-in microphone	Yes
Rear camera type	Single camera
Rear camera resolution (numeric)	13 MP
Front camera	Yes
Rear camera	Yes
Rear camera flash	Yes
Front camera resolution (numeric)	5 MP
Mobile network connection	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Mobile network generation	4G
Bluetooth	Yes
Bluetooth version	5.0
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Near Field Communication (NFC)	Yes
USB 2.0 ports quantity	2
Combo headphone/mic port	Yes
Form factor	Slate
Product color	Black
Device type	Mobile tablet
Position location	Yes
Assisted GPS (A-GPS)	Yes
Accelerometer	Yes
Ambient light sensor	Yes
Gyroscope	Yes
Electronic compass	Yes
Trusted Platform Module (TPM)	Yes
Fingerprint reader	Yes
Platform	Android
Operating system installed	Android 8.0
Battery life (max)	26 h
International Protection (IP) code	IP65
Sustainability certificates	ENERGY STAR
Width	11.1" (280.8 mm)
Depth	0.866" (22 mm)
Height	10.1" (255.9 mm)
Weight	3.09 lbs (1.4 kg)
Compliance certificates	RoHS
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	3 - 95%
Operating altitude	0 - 600000" (0 - 15240 m)
Operating vibration	40 G
Harmonized System (HS) code	84713000
