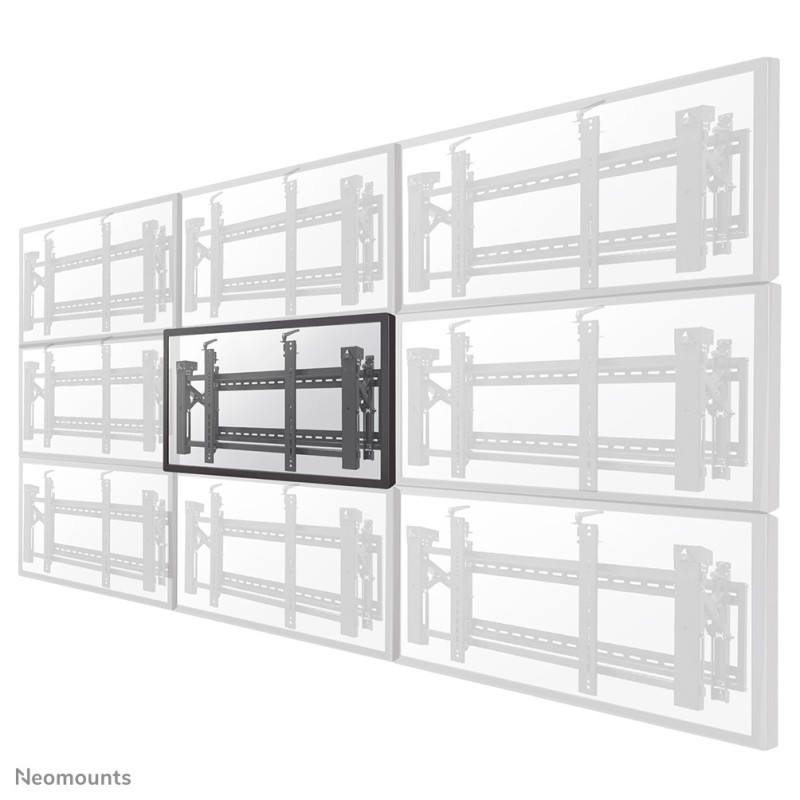

The Neomounts wall mount, model LED-VW2000BLACK is a fixed wall mount for flat screens up to 75" (191 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 14 to 30 centimetres. This wall mount is specially made to be used in video walls. The screen easily can be pulled out.
Neomounts LED-VW2000BLACK is suitable for flat screens up to 75" (191 cm). The weight capacity of this product is 70 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
Create a clean design videowall presentation with the Neomounts LED-VW2000BLACK videowall mount solution!
- Pop-out Video Wall Mount - Pop-out function allows quick release for access - Lateral shift brackets enable fast alignment - Micro-adjustment at 8 points for seamless display alignment and level - Lock and unlock switch knob help to lock/release display out of the pop-out module - Kickstand provides 12° of tilt for easy cable management and maintenance - Anti-theft design for additional security (require for a padlock) - Protects displays by removing the possibility of accidental pop-outs via the plastic locking pieces.
All installation material is included with the product.
Neomounts LED-VW2000BLACK. Maximum weight capacity: 154.3 lbs (70 kg), Minimum screen size: 32", Maximum screen size: 75", Minimum VESA mount: 7.87 x 7.87" (200 x 200 mm), Maximum VESA mount: 23.6 x 15.7" (600 x 400 mm). Tilt angle range: 0 - 12°. Product color: Black
Number of displays supported
1
Maximum screen size
75"
Mounting type
Wall
Maximum weight capacity
154.3 lbs (70 kg)
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount
23.6 x 15.7" (600 x 400 mm)
Minimum screen size
32"
Panel mounting interface
200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,350 x 350,400 x 200
Tilt angle range
0 - 12°
Distance to the wall (min)
2.2" (5.6 cm)
Distance to the wall (max)
8.46" (21.5 cm)
Product color
Black
Type
Fixed floor stand
Housing material
Steel
Accepts padlock
Yes
Weight
28.2 lbs (12.8 kg)
Package width
7.87" (200 mm)
Package depth
20.1" (510 mm)
Package height
40.6" (1030 mm)
Package weight
30.2 lbs (13.7 kg)
Country of origin
China
Master (outer) case net weight
30.2 lbs (13.7 kg)
Harmonized System (HS) code
7326909890
Quantity per EUR-pallet
11 pc(s)
Quantity per master (outer) case
1 pc(s)
Master (outer) case width
40.6" (1030 mm)
Master (outer) case length
20.1" (510 mm)
Master (outer) case height
7.87" (200 mm)
Master (outer) case weight
35.9 lbs (16.3 kg)
Quantity per master (outer) case
1 pc(s)
Package net weight
30.2 lbs (13.7 kg)
Product Details
2025-12-22
New
Data sheet
Type
Fixed floor stand
Product color
Black
Weight
28.2 lbs (12.8 kg)
Harmonized System (HS) code
7326909890
Country of origin
China
Package weight
30.2 lbs (13.7 kg)
Maximum weight capacity
154.3 lbs (70 kg)
Master (outer) case width
40.6" (1030 mm)
Master (outer) case length
20.1" (510 mm)
Master (outer) case height
7.87" (200 mm)
Master (outer) case weight
35.9 lbs (16.3 kg)
Quantity per master (outer) case
1 pc(s)
1 pc(s)
Package width
7.87" (200 mm)
Package depth
20.1" (510 mm)
Package height
40.6" (1030 mm)
Number of displays supported
1
Housing material
Steel
Maximum screen size
75"
Quantity per EUR-pallet
11 pc(s)
Mounting type
Wall
Tilt angle range
0 - 12°
Minimum screen size
32"
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount
23.6 x 15.7" (600 x 400 mm)
Panel mounting interface
200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,350 x 350,400 x 200
