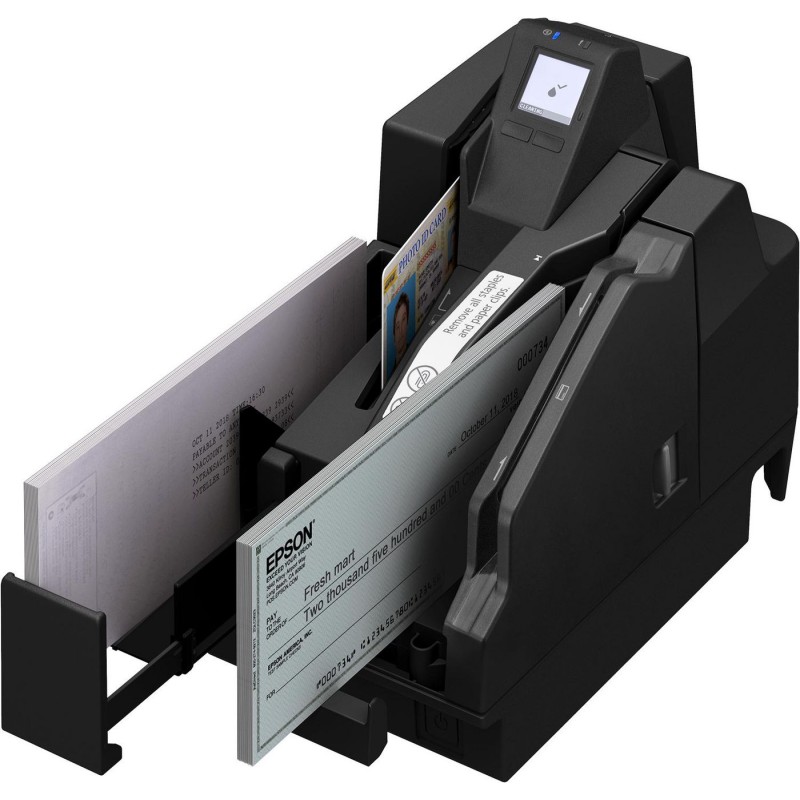

Truly multifunctional In addition to its advanced cheque-scanning features, the TM-S2000II-MJ also offers two-sided, 24-bit color ID scanning and an inkjet printer for cashier cheque filling.
Easy to use This easy to use and maintain cheque scanner also features, advanced self-diagnostics and an intuitive LCD display that keeps the user informed of the device status at all times, and communicates when interventions are needed.
More than just cheque scanning In addition to supporting the traditional financial markets, the TM-S2000II-MJ also serves other niche markets such as restaurant vouchers and pharmacy prescriptions - speeding up processing times and eliminating unnecessary human intervention.
StylishDesign Black version fits seamlessly into most environments. Efficient MSR design for improved usability. Compact design - small footprint.
Epson TM-S2000II-MJ. Maximum scan size: 4.32 x 10" (109.7 x 255 mm), Optical scanning resolution: 300 x 300 DPI, ID card resolutions: 200 x 200,300 x 300,600 x 600. Scanner type: Business card scanner, Product color: Black. Sensor type: CIS, Scan file formats: BMP, JPEG, TIFF, Mean time between failures (MTBF): 180000 h. Standard input capacity: 100 sheets, Auto document feeder (ADF) input capacity: 100 sheets. Scanning media types supported: Plain paper, Plastic Card, Card thickness (max): 0.00787" (0.2 mm), Plastic card media weight: 60 - 120 g/m²
Maximum scan size
4.32 x 10" (109.7 x 255 mm)
Optical scanning resolution
300 x 300 DPI
Duplex scanning
Yes
Color scanning
Yes
Grayscale levels
256
ID card resolutions
200 x 200,300 x 300,600 x 600
Scanner throughput
130 dpm
Scanner type
Business card scanner
Built-in display
Yes
Product color
Black
Sensor type
CIS
Scan file formats
BMP, JPEG, TIFF
Mean cycles between failures (MCBF)
4940000
Mean time between failures (MTBF)
180000 h
Built-in MICR
Yes
MICR font set
CMC-7, E-13B
Built-in OCR
Yes
Standard input capacity
100 sheets
Auto document feeder (ADF) input capacity
100 sheets
Scanning media types supported
Plain paper, Plastic Card
ID-card slot
Yes
ID-cards (ISO/IEC 7810) compliant
Yes
Card thickness (max)
0.00787" (0.2 mm)
Plastic card media weight
60 - 120 g/m²
Maximum scan width
4.72" (12 cm)
Maximum scan length
9.25" (23.5 cm)
USB port
Yes
USB version
2.0
USB connector type
USB Type-A
Standard interfaces
USB 2.0
Power supply type
DC
Output voltage
24 V
Width
6.57" (167 mm)
Depth
16.1" (410 mm)
Height
8.11" (206 mm)
Weight
9.04 lbs (4.1 kg)
Quantity per pack
1 pc(s)
Package width
9.84" (250 mm)
Package depth
15.7" (400 mm)
Package height
11.6" (295 mm)
Package weight
12.4 lbs (5.62 kg)
Cables included
USB
Quick start guide
Yes
AC adapter included
Yes
Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-20 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 85%
Scan speed (max)
1000 mm/sec
Scan speed (ID card)
118 mm/sec
Safety
TÜV (EN62368-1)
Print technology
Inkjet
Maximum media length
9.25" (23.5 cm)
Media thickness
0.08 - 0.2 mm
Printing height
2" (5.08 cm)
Endorsement printing
Yes
Character structure
Font A: 12 x 24, Font B: 9 x 17
Maximum text length per line
169 characters
Certification
CE, EN55024, EN55032 Class A, Directive 2014/30/EU
Quantity per pallet
63 pc(s)
Country of origin
China
Pallet weight
0 oz (0 g)
Pallet length
47.2" (120 cm)
Pallet width
31.5" (80 cm)
Pallet height
87" (2.21 m)
Quantity per pallet layer
9 pc(s)
Quantity per pallet layer (UK)
12 pc(s)
Quantity per pallet (UK)
84 pc(s)
Pallet weight (UK)
0 oz (0 g)
Pallet length (UK)
47.2" (120 cm)
Pallet width (UK)
39.4" (100 cm)
Pallet height (UK)
87" (2.21 m)
Harmonized System (HS) code
84716070
Print head life
6000 million shots/nozzle
Product Details
2026-03-09
New
Data sheet
Product color
Black
Quantity per pack
1 pc(s)
Weight
9.04 lbs (4.1 kg)
Harmonized System (HS) code
84716070
Power supply type
DC
Output voltage
24 V
Width
6.57" (167 mm)
Height
8.11" (206 mm)
Country of origin
China
Certification
CE, EN55024, EN55032 Class A, Directive 2014/30/EU
