RWM09U56WH

Product Dimensions: 600 x 560 x 512mm
Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded alminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.
Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.

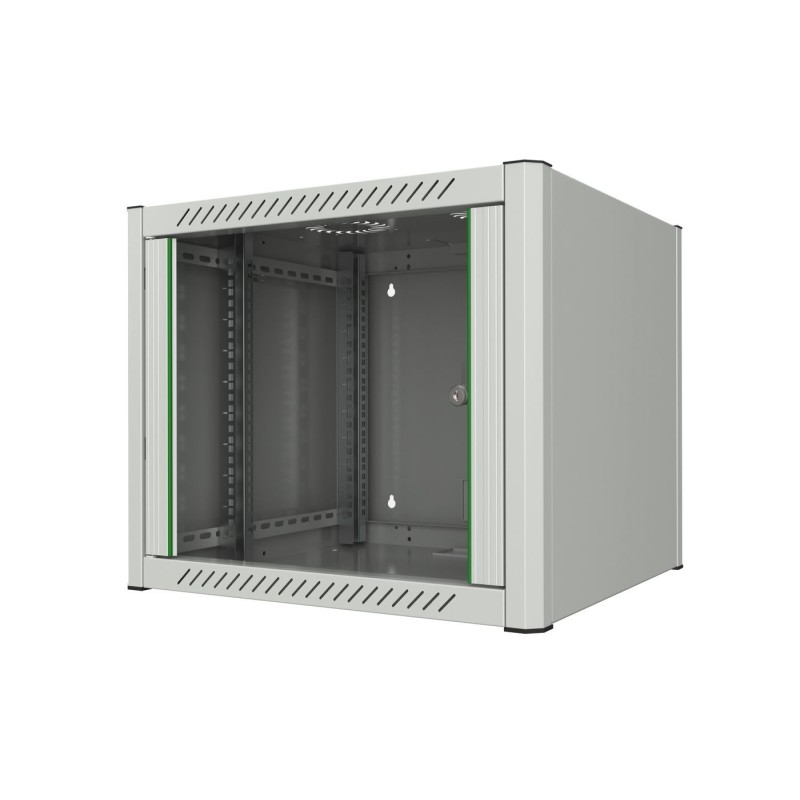

Lanview RWM09U56WH. Type: Wall mounted rack, Rack capacity: 9U, International Protection (IP) code: IP20. Weight: 47.6 lbs (21.6 kg). Product color: White

Rack capacity	9U
Type	Wall mounted rack
Product color	White
Material	Steel
Frame type	Closed
Front door construction	Glass/Steel
Cooling type	Passive
Mounting hole shape	Round
International Protection (IP) code	IP20
Size (imperial)	19"
Width	23.6" (600 mm)
Depth	22" (560 mm)
Height	19.9" (506 mm)
Weight	47.6 lbs (21.6 kg)
Package width	25.2" (640 mm)
Package depth	24.4" (620 mm)
Package height	20.5" (520 mm)
Package weight	49.6 lbs (22.5 kg)
