Reference: ST3450857SS
Brand: Seagate
ST3450857SS _ RFB
Seagate Cheetah 450GB 3.5, 450 GB, 15000 RPM, 16 MB, 3.5", SAS
CHF241.6
tax incl.
CHF223.5
tax excl.
In stock
CHF520.8
tax incl.
CHF481.8
tax excl.
In stock
Description

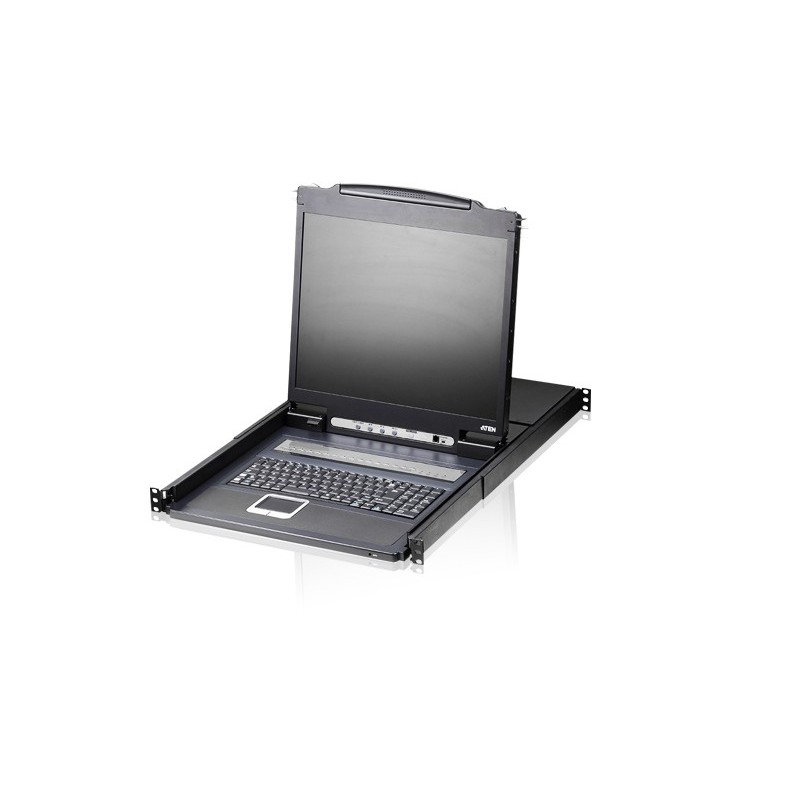

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.
The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
ATEN CL1308N. Display diagonal: 19", Display resolution: 1280 x 1024 pixels, Display: LCD. Keyboard port type: PS/2, Mouse port type: USB, Video port type: VGA. Keyboard language: Nordic, Keyboard layout: QWERTY. Power consumption (typical): 22 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 19" (483 mm), Height: 1.73" (44 mm), Depth: 27.1" (689.2 mm)
The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
ATEN CL1308N. Display diagonal: 19", Display resolution: 1280 x 1024 pixels, Display: LCD. Keyboard port type: PS/2, Mouse port type: USB, Video port type: VGA. Keyboard language: Nordic, Keyboard layout: QWERTY. Power consumption (typical): 22 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 19" (483 mm), Height: 1.73" (44 mm), Depth: 27.1" (689.2 mm)
| Display diagonal | 19" |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.0116 x 0.0116" (0.294 x 0.294 mm) |
| Display type | TFT |
| Response time | 5 ms |
| Supported resolutions | 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B |
| Rack capacity | 1U |
| Material | Metal, Plastic |
| Product color | Black |
| Hot-Plug support | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Built-in KVM switch | Yes |
| KVM switch ports quantity | 8 |
| Maximum resolution | 1920 x 1200 pixels |
| Rack mounting | Yes |
| Console port | SPHD-18 |
| Number of computers controlled | 128 |
| LED indicators | Yes |
| Push button | Yes |
| Compliance certificates | RoHS |
| VGA (D-Sub) ports quantity | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | USB |
| Video port type | VGA |
| Keyboard language | Nordic |
| Keyboard layout | QWERTY |
| Hot keys | Yes |
| Power consumption (typical) | 22 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Width | 19" (483 mm) |
| Height | 1.73" (44 mm) |
| Depth | 27.1" (689.2 mm) |
| Weight | 27.8 lbs (12.6 kg) |
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Product Details
2026-07-03
New
Data sheet
- Product color
- Black
- Windows operating systems supported
- Yes
- VGA (D-Sub) ports quantity
- 8
- Weight
- 27.8 lbs (12.6 kg)
- Display diagonal
- 19"
- Display resolution
- 1280 x 1024 pixels
- Hot-Plug support
- Yes
- Maximum resolution
- 1920 x 1200 pixels
- Width
- 19" (483 mm)
- Height
- 1.73" (44 mm)
- Keyboard layout
- QWERTY
- Keyboard language
- Nordic
- Depth
- 27.1" (689.2 mm)
- Display type
- TFT
- Material
- Metal, Plastic
- Mac operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Hot keys
- Yes
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Display brightness
- 250 cd/m²
- Cables included
- AC, KVM
- Input current
- 1 A
- Rack capacity
- 1U
- Display
- LCD
- Manual
- Yes
- Power consumption (typical)
- 22 W
- Compliance certificates
- RoHS
- Keyboard port type
- PS/2
- Mouse port type
- USB
- Video port type
- VGA
- Response time
- 5 ms
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 160°
- Pixel pitch
- 0.0116 x 0.0116" (0.294 x 0.294 mm)
- On Screen Display (OSD)
- Yes
- Quick installation guide
- Yes
- Console port
- SPHD-18
- Rack mounting
- Yes
- Number of computers controlled
- 128
- Rack mount kit
- Yes
- Supported resolutions
- 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2B - Push button
- Yes
- Built-in KVM switch
- Yes
- KVM switch ports quantity
- 8
- AC adapter input voltage
- 100 - 240 V
- AC adapter frequency
- 50/60 Hz
Specific References
- EAN13
- 5711783159971
- MPN
- CL1308N-ATA-2XK06DNG
