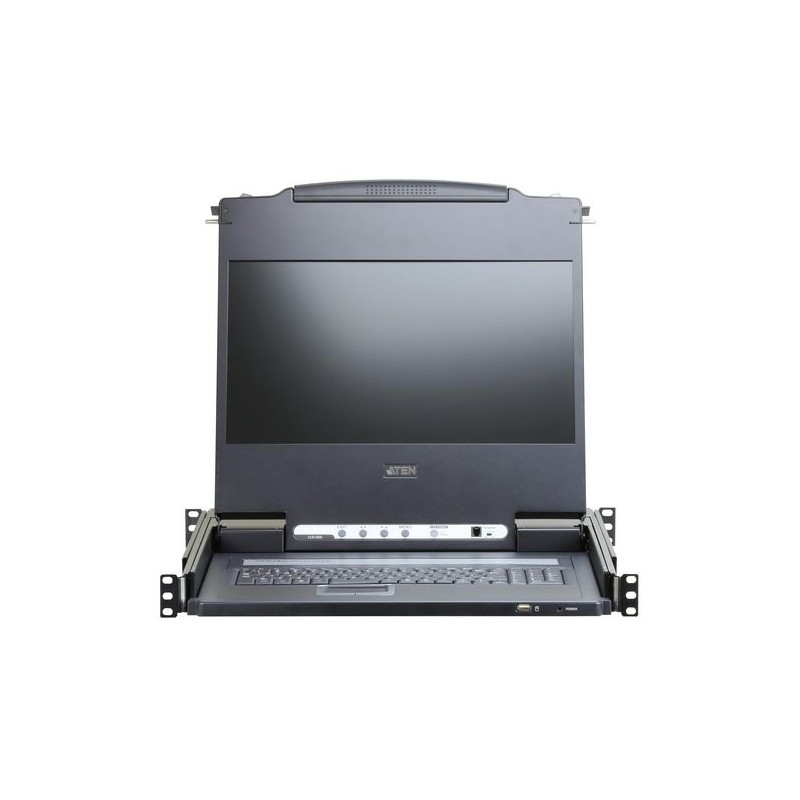

CL6700MW-ATA-2XK06FG - CL6700MW
Single Rail LCD Console (USB, HDMI / DVI / VGA), FR KB
Description
The CL6700 features an integrated 17.3" (CL6700MW) or 19” (CL6700N) LED-backlit LCD panel, a full keyboard, and a touchpad in a 1U rack-mountable sliding housing with audio support. The CL6700 LCD KVM console provides front end access to compatible KVM switches utilizing space with a module that closes flat and slides into the rack.
The CL6700MW supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. For added convenience, the 17.3" full HD console features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard, USB mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel.
While the CL6700MW supports multiple video interfaces, the CL6700N is a dedicated front end sliding console for compatible DVI KVM switches. The CL6700N supports DVI video input and provides ports for the second KVM console (USB keyboard, USB mouse and DVI or VGA monitor) on the rear panel. Both of the CL6700MW and CL6700N include two mini stereo ports for connecting audio speakers.
Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL6700 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
The CL6700MW supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. For added convenience, the 17.3" full HD console features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard, USB mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel.
While the CL6700MW supports multiple video interfaces, the CL6700N is a dedicated front end sliding console for compatible DVI KVM switches. The CL6700N supports DVI video input and provides ports for the second KVM console (USB keyboard, USB mouse and DVI or VGA monitor) on the rear panel. Both of the CL6700MW and CL6700N include two mini stereo ports for connecting audio speakers.
Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL6700 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with a 17.3” LED-backlit widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation with a 1U high system rack (CL6700MW)
- Supports an external console with USB / DVI / VGA / HDMI connectors
- Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
Specifications
Display
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 800:1 |
| Display | LCD |
| Display brightness | 250 cd/m² |
| Display diagonal | 17.3 " |
| Display resolution | 1920 x 1080 pixels |
| Display type | TFT |
| Pixel pitch | 0.1989 x 0.1989 mm |
| Response time | 16 ms |
| Supported resolutions | up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B |
| Viewing angle, horizontal | 170 ° |
| Viewing angle, vertical | 170 ° |
Keyboard
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Keyboard language | French |
| Keyboard layout | AZERTY |
| Keyboard number of keys | 105 |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| Cables included | AC/KVM |
| Manual | Yes |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
Ports & interfaces
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| DVI connector type | DVI-D |
| DVI input ports | 1 |
| DVI output ports | 1 |
| I/O ports | 1x RJ-11/2x HDMI |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB 2.0 Type-A ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Power
| AC (power) in | Yes |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1 A |
| Power consumption (typical) | 19.4 W |
System requirements
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Technical details
| Built-in KVM switch | Yes |
| Compliance certificates | RoHS |
| Console port | HDMI/VGA/DVI/USB/3.5mm |
| Hot-Plug support | Yes |
| LED indicators | Yes |
| Material | Metal |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 1 |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 0 - 80 % |
| Product colour | Black |
| Push button | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
Vendor information
| Brand Name | Aten |
| Warranty | 2 |
Product Details
CL6700MW
2 Items
New
Data sheet
- Response time
- 16 ms
- DVI connector type
- DVI-D
- Bildschirmhelligkeit
- 250 cd/m²
- Pixelabstand
- 0.1989 x 0.1989 mm
- Gestellmontage
- Yes
- Konsolenport
- HDMI/VGA/DVI/USB/3.5mm
- Betrachtungswinkel horizontal
- 170 °
- Betrachtungswinkel, vertikal
- 170 °
- Kontrastverhältnis (typisch)
- 800:1
- Rack-Montage-Kit
- Yes
- Ein / Aus Schalter
- Yes
- Compliance certificates
- RoHS
- Anzeige
- LCD
- LED-Anzeigen
- Yes
- Handbuch
- Yes
- Kabel enthalten
- AC/KVM
- Stromverbrauch (typisch)
- 19.4 W
- Maximum Auflösung
- 1920 x 1200 Pixel
- Tastaturbelegung
- AZERTY
- Eingangsstrom
- 1 A
- Hot-Plug-Unterstützung
- Yes
- Hotkeys
- Yes
- Schnellinstallationsanleitung
- Yes
- Unterstützte Mac-Betriebssysteme
- Yes
- Anzeigetyp
- TFT
- Bildschirmauflösung
- 1920 x 1080 Pixel
- Diagonale anzeigen
- 17.3 "
- Seitenverhältnis
- 16:9
- Keypad number of keys
- 105
- Anzahl der kontrollierten Computer
- 1
- Anzahl der USB 2.0 Typ-B-Anschlüsse
- 1
- Mausanschlusstyp
- USB
- Typ des Tastaturanschlusses
- USB
- Rack-Kapazität
- 1U
- Tastatursprache
- French
- Anzahl der VGA (D-Sub) Anschlüsse
- 2
- Brand Name
- Aten
- Warranty
- 2
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -20 - 60 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 80 %
- Unterstützte Linux-Betriebssysteme
- Yes
- Unterstützte Windows-Betriebssysteme
- Yes
- Produktfarbe
- Black
- Material
- Metal
- Eingangsspannung des Netzteils
- 100 - 240 V
- 3,5 mm (1/8 Zoll) heraus
- Yes
- 3,5 mm (1/8 Zoll) Zoll
- Yes
- I/O-Ports
- 1x RJ-11/2x HDMI
- Eingebauter KVM-Switch
- Yes
- Netzadapterfrequenz
- 50/60 Hz
- Anzahl der USB 2.0 Typ-A-Anschlüsse
- 3
- Eingebautes Touchpad
- Yes
- Supported resolutions
- up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B
- Push button
- Yes
- DVI-Ausgangsports
- 1
- DVI-Eingänge
- 1
- AC (power) in
- Yes
Specific References
- EAN13
- 4710469343889
- MPN
- CL6700MW-ATA-FG
