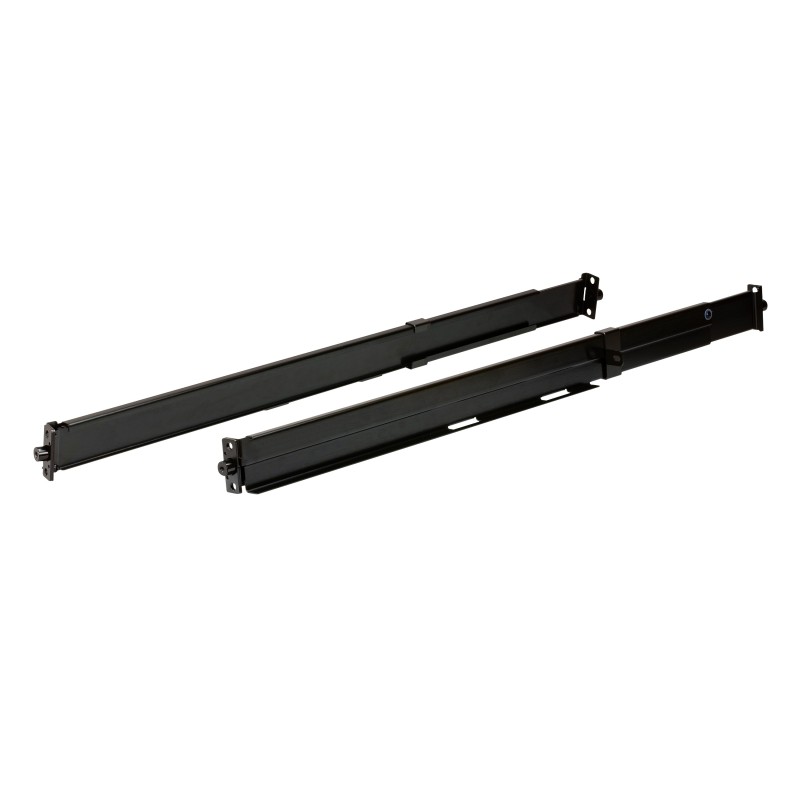

2K-0002

The ATEN 2-in-1U Mounting Kit allows you to combine the CL3800/CL3700/CL3100 LCD KVM Console with a rack KVM switch in 1U of space, which helps users save space for a more convenient and flexible working environment.

To meet users’ needs, ATEN offers two options of 2-in-1U Mounting Kit: the 2K-0001 (rack KVM switch option) / 2K-0007 (KVM over IP switch option), a Standard Installation that calls for at least two people to rack mount, and the 2K-0002, an Easy Installation accessory enabling one person to rack mount, which streamlines the rack mounting process.

Combining LCD KVM Console, rack KVM switch with the 2-in-1U Mounting Kit, users can enjoy ideal workstations with work space efficiency, limited space is no more a problem!

Note: Please refer to Datasheet on the Support and Downloads page for more information on the applicable rack depth and the compatibility between LCD KVM consoles and KVM switches.

ATEN 2K-0002. Type: Mounting kit, Product color: Black, Rack capacity: 1U. Mounting depth (min): 30.7" (78 cm), Mounting depth (max): 41.3" (105 cm), Weight: 3.53 lbs (1.6 kg). Quantity per pack: 1 pc(s), Package width: 4.41" (112 mm), Package depth: 27.7" (703 mm). Screw type: M4*6, M3*5. Master (outer) case net weight: 17.6 lbs (8 kg), Master (outer) case width: 17.4" (442 mm), Master (outer) case length: 28.6" (727 mm)

Type	Mounting kit
Product color	Black
Rack capacity	1U
Compatibility	CL3800/CL3700/CL3100
Mounting depth (min)	30.7" (78 cm)
Mounting depth (max)	41.3" (105 cm)
Weight	3.53 lbs (1.6 kg)
Quantity per pack	1 pc(s)
Package width	4.41" (112 mm)
Package depth	27.7" (703 mm)
Package height	3.23" (82 mm)
Package weight	4.1 lbs (1.86 kg)
Mounting kit	Yes
Quick installation guide	Yes
Screws included	Yes
Screw type	M4*6, M3*5
Number of screws	15
Master (outer) case net weight	17.6 lbs (8 kg)
Master (outer) case width	17.4" (442 mm)
Master (outer) case length	28.6" (727 mm)
Master (outer) case height	5.39" (137 mm)
Master (outer) case weight	23.1 lbs (10.5 kg)
Quantity per master (outer) case	5 pc(s)
Harmonized System (HS) code	85389099
