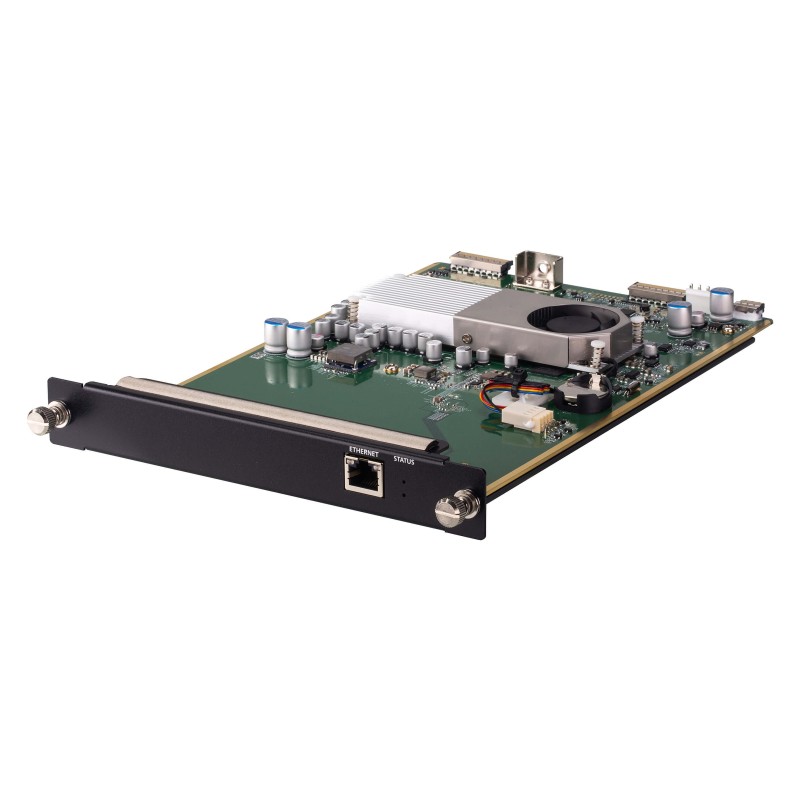

VW-CPU

The VW-CPU can be installed in the ATEN VW3620 36 x 20 Modular 4K Video Wall Processor, which features two CPU board slots. The upper slot is running as the primary by default. Each VW-CPU is equipped with an individual 10/100/1000Base-T LAN port and controller card which enables efficient transmission and management of data. VW-CPU comes hot-standby that standby CPU will automatically backup and switch as primary to resume the logic workings and IO control from the previous stopped when the primary CPU shuts down. It can take over the primary system operation immediately to guarantee easy maintenance of interface via Web GUI without shutting down the current display on the video wall. Consequently, VW-CPU supports redundancy to ensure uninterrupted operation for any mission-critical video wall applications.

ATEN VW-CPU. Product color: Black, Green, Housing material: Metal, Number of fans: 1 fan(s). Ethernet LAN data rates: 10,100,1000 Mbit/s. Width: 10.7" (271 mm), Depth: 7.6" (193 mm), Height: 1.08" (27.4 mm)

Product color	Black, Green
Housing material	Metal
Built-in fan	Yes
Number of fans	1 fan(s)
Fan location	Top
Heat dissipation	9.95 BTU/h
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
RJ-45 ports quantity	1
Operating temperature (T-T)	0 - 40 °C
Width	10.7" (271 mm)
Depth	7.6" (193 mm)
Height	1.08" (27.4 mm)
Weight	27.5 oz (780 g)
