Reference: ST3450857SS
Brand: Seagate

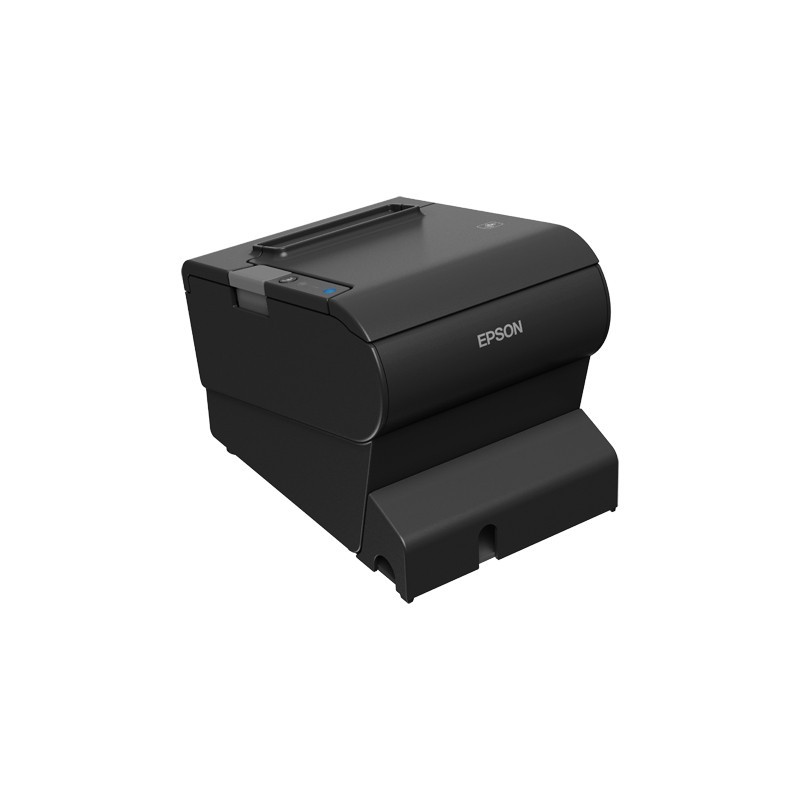

Epson TM-T88VI-iHub, Direct thermal, POS printer, 180 x 180 DPI, 350 mm/sec, 0.0555 x 0.155" (1.41 x 3.93 mm), 18 cpi
| Print technology | Direct thermal |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 350 mm/sec |
| Character size | 0.0555 x 0.155" (1.41 x 3.93 mm) |
| Character density | 18 cpi |
| Printing characters | Text, Graphic, Barcode |
| Character sets | ANK |
| Maximum roll diameter | 3.27" (8.3 cm) |
| Supported paper width | 80 mm |
| Media thickness | 0.05 - 0.08 mm |
| Connectivity technology | Wired |
| USB port | Yes |
| Serial interface | Yes |
| USB 2.0 ports quantity | 4 |
| USB connector | USB Type-B |
| Serial interface type | RS-232 |
| Near Field Communication (NFC) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Standard interfaces | NFC, RS-232, USB 2.0 |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Mean time between failures (MTBF) | 350000 h |
| Cutter | Yes |
| Half-cutter | Yes |
| Autocutter durability | 3 million cuts |
| Built-in processor | Yes |
| Processor family | Cortex-A5 |
| Processor frequency | 0.384 GHz |
| Print head life | 200 km |
| Country of origin | China |
| Mounting position | Horizontal/Vertical |
| Wall mountable | Yes |
| Ribbon life | 20 million characters |
| Built-in sensors details | Paper Near End Sensor, Cover Open Sensor, Papier-Sensor |
| Certification | CE, EN55024, EN55032 Class A, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11 |
| Product color | Black |
| Power source type | AC |
| AC input voltage | 24 V |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Pre-installed software | Device Data Notification, Server Direct Print, Webserver, ePOS-Device, ePOS-Display, ePOS-Print |
| Width | 5.71" (145 mm) |
| Depth | 7.68" (195 mm) |
| Height | 5.83" (148 mm) |
| Weight | 3.53 lbs (1.6 kg) |
| Quantity per pack | 1 pc(s) |
| Package width | 7.68" (195 mm) |
| Package depth | 9.45" (240 mm) |
| Package height | 9.25" (235 mm) |
| Package weight | 5.78 lbs (2.62 kg) |
| AC adapter included | Yes |
| Column capacity | 58/80 |
| Pallet weight (UK) | 0 oz (0 g) |
| Harmonized System (HS) code | 84433210 |
| Quantity per master (outer) case | 4 pc(s) |
| Master (outer) case width | 15.7" (400 mm) |
| Master (outer) case length | 19.3" (490 mm) |
| Master (outer) case height | 10" (255 mm) |
| Master (outer) case weight | 0 oz (0 g) |
| Quantity per pallet | 128 pc(s) |
| Quantity per pallet layer | 16 pc(s) |
| Pallet width | 31.5" (80 cm) |
| Pallet length | 47.2" (120 cm) |
| Pallet height | 5.91" (15 cm) |
| Pallet weight | 0 oz (0 g) |
| Quantity per pallet (UK) | 192 pc(s) |
| Quantity per pallet layer (UK) | 24 pc(s) |
| Pallet width (UK) | 39.4" (100 cm) |
| Pallet length (UK) | 47.2" (120 cm) |
| Pallet height (UK) | 5.91" (15 cm) |
| Paper dimensions | 58 / 80 |
| Mean cycles between failures (MCBF) | 70000000 |
| Lifetime | 20000000 lines |
| Print head life | 200.000.000 Impulse |
