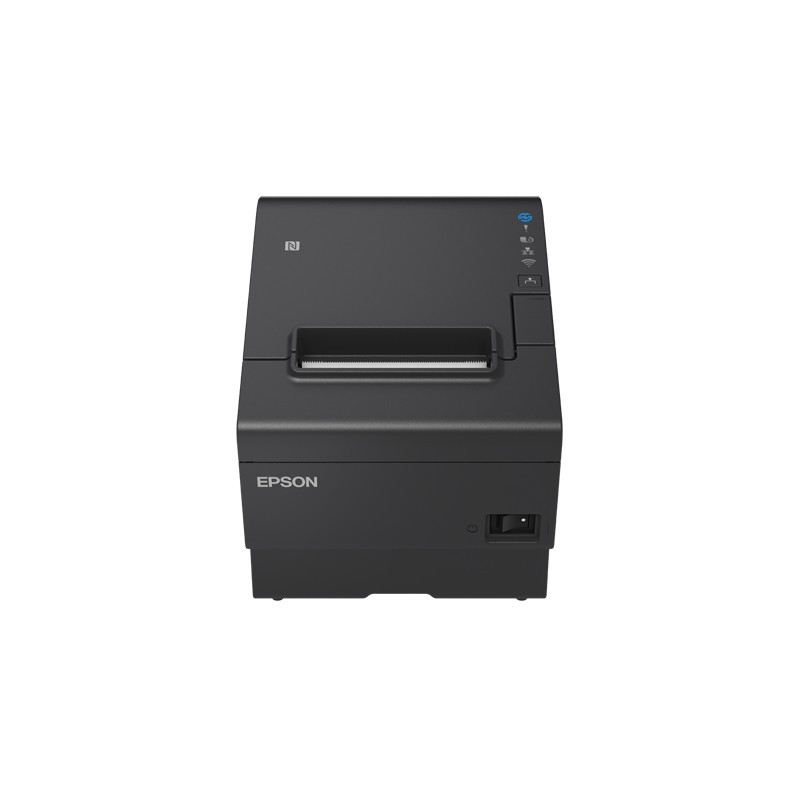

C31CJ57152 - W126364545

Data sheet

Type

POS printer

Product color

Black

Quantity per pack

1 pc(s)

Connectivity technology

Wired & Wireless

Ethernet LAN

Yes

Weight

3.75 lbs (1.7 kg)

Harmonized System (HS) code

84433210

Maximum resolution

180 x 180 DPI

Width

5.71" (145 mm)

Height

5.83" (148 mm)

Country of origin

Philippines

AC input voltage

24 V

Certification

CE

Depth

7.68" (195 mm)

Package weight

5.95 lbs (2.7 kg)

Package width

7.68" (195 mm)

Package depth

9.25" (235 mm)

Package height

10.2" (260 mm)

USB connector type

USB Type-A / USB Type-B

Operating temperature (T-T)

5 - 45 °C

Storage temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Print technology

Thermal

Power consumption

28600 mA

USB port

Yes

Power consumption (standby)

1.4 W
1400 mA

Pallet weight

0 oz (0 g)

Quantity per pallet

112 pc(s)

Lifetime

20000000 lines

Quantity per pallet (UK)

168 pc(s)

Mean time between failures (MTBF)

360000 h

Wall mountable

Yes

Sound pressure level (printing)

52 dB

Power consumption (printing)

28.6 W

Near Field Communication (NFC)

Yes

Print speed

500 mm/sec

Buffer size

4 KB

Pallet weight (UK)

0 oz (0 g)

Pre-installed software

Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print

Optional connectivity

Wireless LAN

Maximum roll diameter

3.27" (8.3 cm)

Sound pressure level (standby)

52 dB

Media thickness

48 - 80 mm

Integrated sensors

Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor

Supported paper width

80 mm

Character size

0.0555 x 0.133" (1.41 x 3.39 mm)

Printing characters

Text, Graphic, Barcode, 2D barcode

Character sets

ANK

Autocutter durability

3 million cuts

Paper save function

Yes

Print head life

200 km

Mounting position

Horizontal/Vertical

Column capacity

42/56

Mean cycles between failures (MCBF)

70000000

Specific References

EAN13

8715946697192

MPN

C31CJ57152
