Description

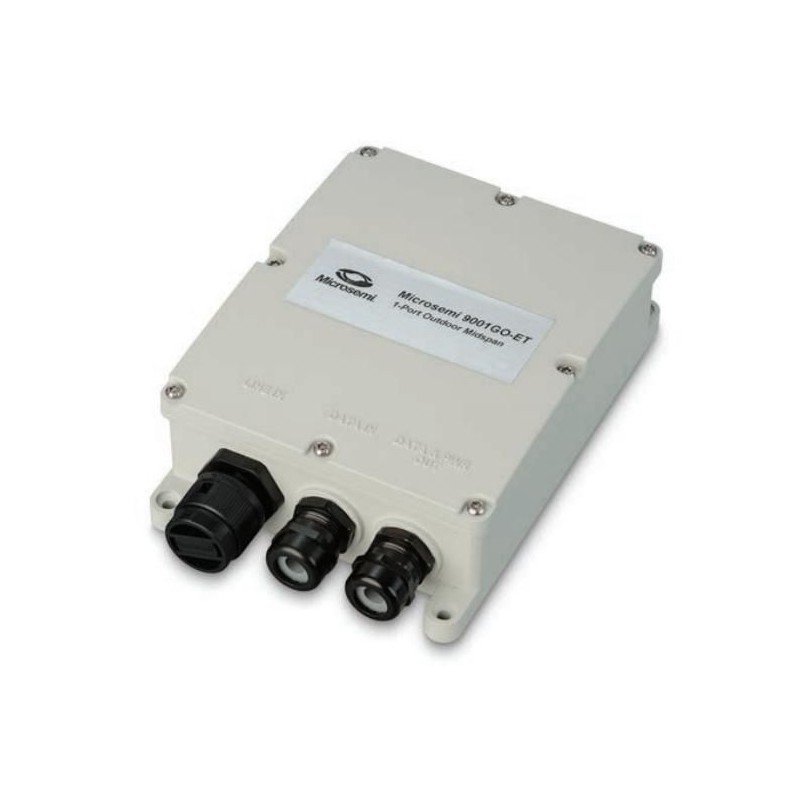

PD-9001GO-ET Midspan
Microsemi’s PD-9001GO-ET Power over Ethernet (PoE) single-port midspan offers a cost-effective, IEEE 802.3atcompliant solution for outdoor installations, guaranteeing 30 W of power and ensuring safe and reliable operation of any standard PoE data terminal in outdoor environments. It allows wireless LAN access points, security network cameras, and other IP terminals to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9001GO-ET also offers surge protection for both the AC and the PoE ports, ensuring the indoor equipment is protected from outdoor surges.
Microsemi’s PD-9001GO-ET Power over Ethernet (PoE) single-port midspan offers a cost-effective, IEEE 802.3atcompliant solution for outdoor installations, guaranteeing 30 W of power and ensuring safe and reliable operation of any standard PoE data terminal in outdoor environments. It allows wireless LAN access points, security network cameras, and other IP terminals to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9001GO-ET also offers surge protection for both the AC and the PoE ports, ensuring the indoor equipment is protected from outdoor surges.
- Outdoor rated: IP67
- Extended temperature range –40 °C to 65 °C
- One part number for worldwide use (AC connector)
- IEEE 802.3at standard-compliant—30 W
- Supports 10/100/1000 Mbps data rates
- Plug and play installation (installer does not have to open unit)
- Supports both IEEE 802.3af and IEEE 802.3at powered devices
- Includes integrated surge protection
Specifications
Certificates
| Certification | IP67, FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024, EN61000-4-5 Class 5, (6 kV CM/DM), VCCI, UL/IEC/EN 60950-1, UL60950-22, NEMA 250, level 4X ASTM B-117, CE |
| Compliance certificates | RoHS/WEEE |
Features
| Pin assignment & polarity | 7/8 (–) 4/5 (+) |
| Surge protection | Yes |
Network
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 149 °F |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Input current | 1 A |
| Input frequency | 50/60 Hz |
| Input voltage | 100-240 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) voltage | 54 V |
Vendor information
| Brand Name | MicroSemi |
| Warranty | 1 |
Product Details
2026-03-19
New
Data sheet
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Netzwerkstandards
- IEEE 802.3af/IEEE 802.3at
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- Ethernet-Schnittstellentyp
- Gigabit Ethernet
- Eingangsspannung
- 100-240 V
- Compliance certificates
- RoHS/WEEE
- Eingangsfrequenz
- 50/60 Hz
- Zertifizierung
- IP67, FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024, EN61000-4-5 Class 5, (6 kV CM/DM), VCCI, UL/IEC/EN 60950-1, UL60950-22, NEMA 250, level 4X ASTM B-117, CE
- Eingangsstrom
- 1 A
- Überspannungsschutz
- Yes
- Brand Name
- MicroSemi
- Warranty
- 1
- Betriebstemperatur (TT)
- -40 - 149 °F
- Lagertemperatur (TT)
- -40 - 85 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 0 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 95 %
- Power over Ethernet (PoE)-Spannung
- 54 V
- Power over Ethernet (PoE)-Stromversorgung pro Port
- 30 W
- Pinbelegung & Polarität
- 7/8 (–) 4/5 (+)
Specific References
- MPN
- PD-9001GO-ET/AC
