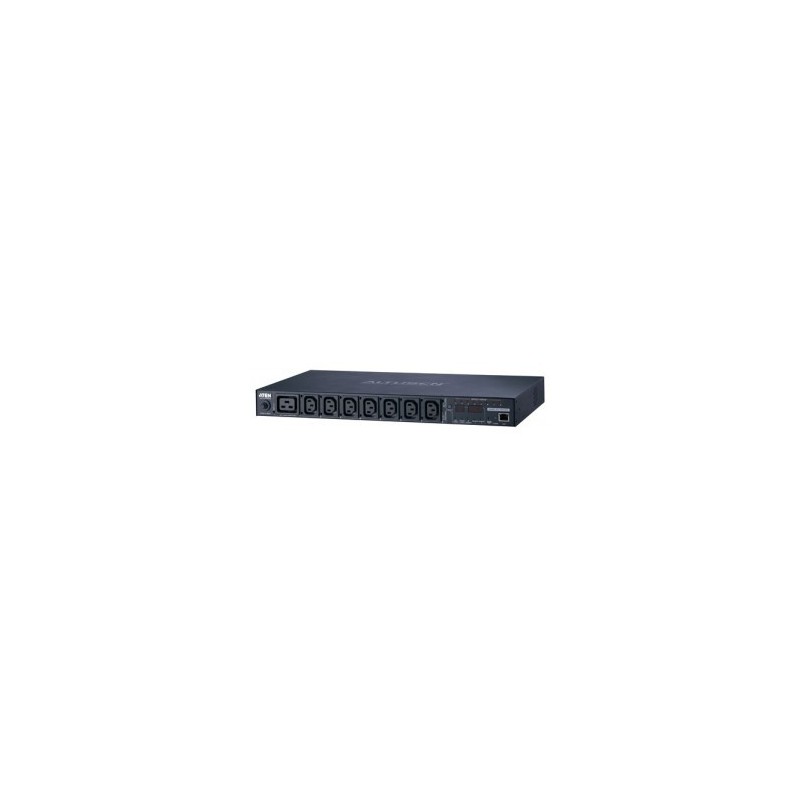

PE6208G-ATB-G

Features

Power Distribution
- Space saving 1U rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 digit 7-segment front panel LED shows Current / IP Address
- Remote users can monitor outlet status via web pages on their browsers
- Safe shutdown support
- Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker

Remote Access
- Remote power control via TCP/IP and a built in 10/100 Ethernet port
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
- eco PDU Power Management software – eco Sensors
- Supports SNMP Manager V3

Operation
- Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
- Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser-based user interface
- Multibrowser support (IE, Firefox, Chrome, Safari)
- RTC support to keep the timer running during times of no power.
- Supports up to 8 user and 1 administrator accounts

Management
- Power status measurement at the PDU or Outlet level
- LED indicators for current and IP address at the PDU device level
- Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
- Current and voltage threshold setting
- Naming support for outlets
- User outlet access assignment on an outlet-by-outlet basis.
- Event logging and syslog support
- Upgradeable firmware
- Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian

Security
- Power status measurement at the PDU or
- Two-level password security
- Strong security features include password protection and advanced encryption technologies – 128 bit SSL
- Remote authentication support: RADIUS

eco Sensors Energy Management Software
- Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Remote real-time power outlet management*
- Remote real-time environment sensor monitoring
- Plotting/Monitoring of all PE devices
- Exceed threshold alert through SMTP and Syslog
- Power Analysis Report

Package Contents

- 1x PE6208 Power Distribution Unit
- 1x Power Cord
- 1x Rack Mount Kit
- 1x Software CD
- 1x User Instructions

ATEN PE6208G. PDU types: Monitored, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 8 AC outlet(s), Power plug: C20 coupler. LED indicators: LAN, Link, Power, Status. Monitoring: Current. Nominal input voltage: 100-240 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz

PDU types	Monitored
Rack capacity	1U
Mounting	Horizontal
Housing material	Metal
Product color	Black
AC outlets quantity	8 AC outlet(s)
Power plug	C20 coupler
Ethernet LAN (RJ-45) ports	1
LED indicators	LAN, Link, Power, Status
Monitoring	Current
Nominal input voltage	100-240 V
Maximum current	16 A
AC input frequency	50 - 60 Hz
Nominal output voltage	100-240 V
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	8.63" (219.3 mm)
Depth	17" (432.4 mm)
Height	1.73" (44 mm)
Weight	6.15 lbs (2.79 kg)
