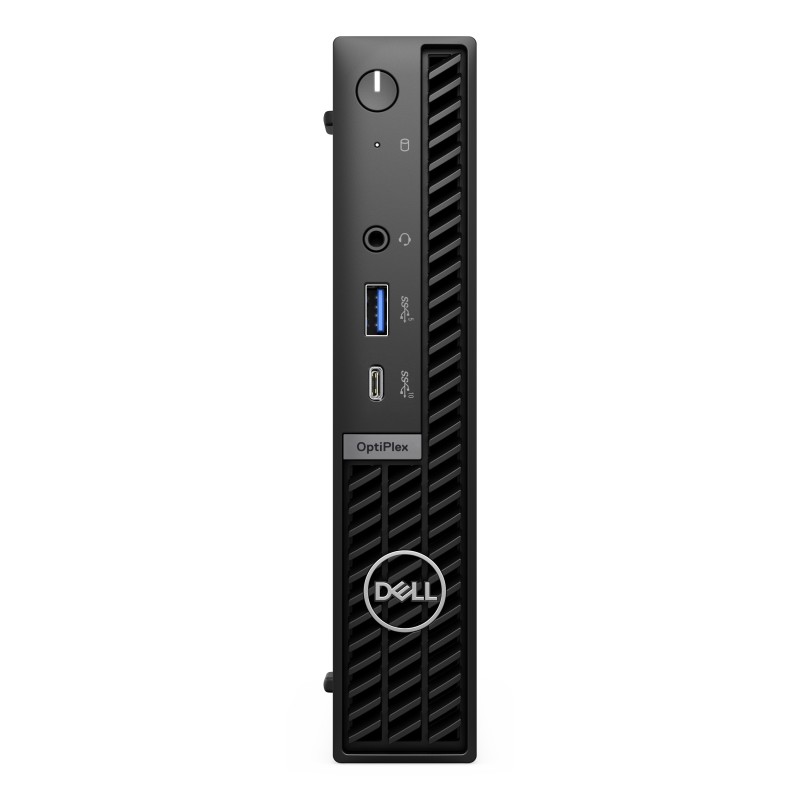

JX05H

Data sheet

Product color

Black

SSD capacity

512 GB

SSD form factor

M.2

NVMe

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI ports quantity

1

DisplayPorts quantity

1

Combo headphone/mic port

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Cable lock slot

Yes

Optical drive type

No

Processor manufacturer

Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Wi-Fi

Yes

Internal memory

16 GB

Internal memory type

DDR5-SDRAM

Processor family

Intel® Core™ i5

Processor cores

14

Processor model

i5-14500T

Processor threads

20

Processor boost frequency

4.8 GHz

Processor cache

24 MB

Processor cache type

Smart Cache

Memory channels

Single-channel

On-board graphics card

Yes

Width

1.42" (36 mm)

Height

7.17" (182 mm)

M.2 SSD size

2230 (22 x 30 mm)

Depth

7.01" (178 mm)

Processor generation

Intel® Core™ i5 (14th gen)

Discrete graphics card

No

On-board graphics card model

Intel UHD Graphics 770

Discrete graphics card model

Not available

Product type

Mini PC

HDMI version

1.4b

DisplayPort version

1.4a

DC-in jack

Yes

Power supply

90 W

Power cable length

70.9" (1.8 m)

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

5 - 95%

Storage media

SSD

Compatible memory cards

Not supported

Built-in speaker(s)

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Wi-Fi standards

802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)

Operating system installed

Windows 11 Pro

Cables included

AC

Antenna type

2x2

Maximum internal memory

64 GB

Market positioning

Business

Sustainability certificates

TCO, ENERGY STAR, EPEAT Climate +

Sustainability compliance

Yes

PowerShare

Yes

Number of USB ports with PowerShare support

1

Intel® vPro™ Platform Eligibility

Yes

Thunderbolt 3 ports quantity

0

Cable lock slot type

Kensington

Chassis type

MFF

Operating shock

40 G

Number of speakers

1

Memory layout

1 x 16 GB

Operating altitude

-598.4 - 120000" (-15.2 - 3048 m)

Non-operating altitude

-598.4 - 420000" (-15.2 - 10668 m)

Operating vibration

0.26 G

Performance cores

6

Efficient cores

8

Performance-core base frequency

1.7 GHz

Efficient-core base frequency

1.2 GHz

Processor base power

35 W

Maximum turbo power

92 W

Password protection

Yes

Motherboard chipset

Intel Q670

Placement supported

Horizontal/Vertical

Number of processors installed

1

Total storage capacity

512 GB

Number of SSDs installed

1

SSD interface

PCI Express 4.0

On-board graphics card family

Intel® UHD Graphics

Display included

No

Audio chip

Realtek ALC3204

Doesn't contain

PVC/BFR

Trial software

Activate Your Microsoft 365 For A 30 Day Trial

RAID support

No

Number of processors supported

1

Memory slots

2x SO-DIMM

Number of storage drives installed

1

Operating system architecture

64-bit

Water cooling system

No

Non-operating vibration

1.37 G

Non-operating shock

105 G

Trusted Platform Module (TPM)

Yes

Power supply input voltage

100 - 240 V

WLAN controller model

Intel Wi-Fi 6E AX211

Performance-core Max Turbo Frequency

4.8 GHz

Efficient-core Max Turbo Frequency

3.4 GHz

Trusted Platform Module (TPM) version

2.0

Power supply input frequency

50/60 Hz

Total SSDs capacity

512 GB

On-board GPU manufacturer

Intel

Total carbon footprint (kg of CO2e)

90.5

WLAN controller manufacturer

Intel

Number of rear USB ports

4

Number of front USB ports

2

Keyboard included on selected markets

Dell KB216 Multimedia-Tastatur, schwarz - Deutsch (QWERTZ)

Carbon emissions, manufacturing (kg of CO2e)

59.368

Carbon emissions, logistics (kg of CO2e)

2.353

Carbon emissions, energy usage (kg of CO2e)

28.3265

Carbon emissions, end-of-life (kg of CO2e)

0.543

PAIA version

GaBi version 1, 2024

Operating system language

German, Dutch, English, French, Italian

SSD performance class

35

Maximum on-board graphics card resolution

7680 x 4320 pixels

Number of front audio ports

1

Number of rear audio ports

0

Specific References

EAN13

5397184802274

MPN

JX05H
