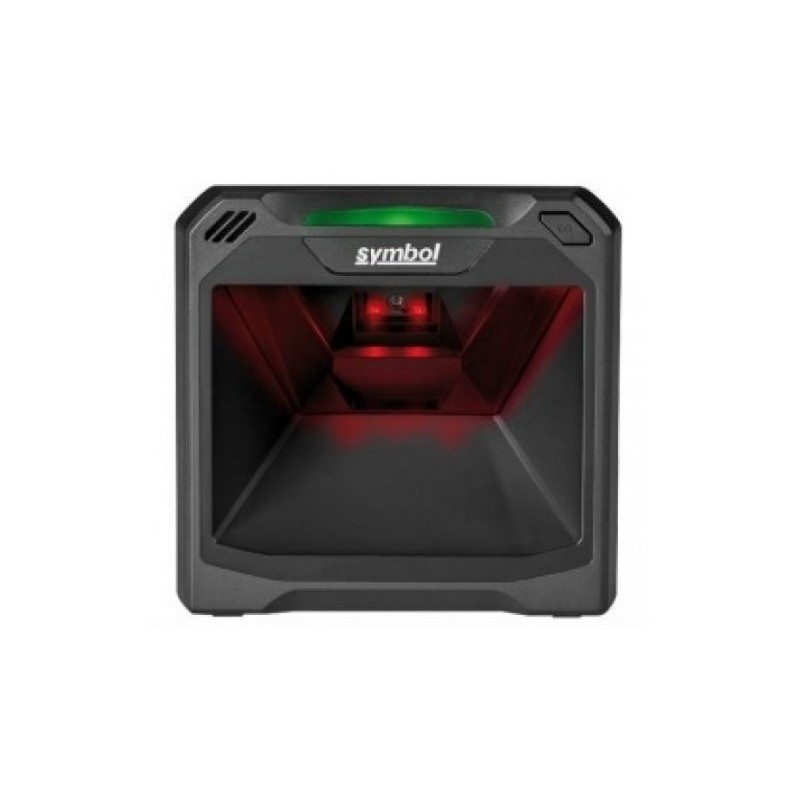

DS7708-SR4R0110ZCE - LS7708-BENR0100UR

EASY TO DEPLOY, HIGH PERFORMANCE, ON-COUNTER SCANNING
When it comes to on-counter scanning, the DS7708 offers a feature set that puts it at the top of its class for performance, ease of deployment and total cost of ownership. No matter what barcodes appear at your POS, the DS7708 can scan them all; 1D, 2D, printed and electronic.

With its compact design, the DS7708 can easily be installed in even the most space constrained checkout lanes. And extraordinary durability minimizes costs and protects uptime, maximizing device lifecycle and your return on investment.

LARGEST FIELD OF VIEW AND OMNI-DIRECTIONAL SCANNING FOR SCANNING SIMPLICITY
A field of view that is over 50 percent larger than competitive 2D imagers enables easy capture of bar codes, regardless of where they are located on an item. Scanning is truly second nature. No need to orient an item to capture the bar code.

IMAGE CAPTURE SUPPORT EXPANDS FUNCTIONALITY AND INCREASES VALUE
The DS7708 offers additional data capture features to further streamline your business processes. Workers can take a picture of a check, driver’s license or I.D. card to meet store requirements or industry regulations in a split second.

PRZM INTELLIGENT IMAGING TECHNOLOGY FOR NEXT GENERATION SCANNING PERFORMANCE
Resets the bar for 2D imaging by improving decode performance and dramatically improving the user experience, user productivity, throughput and customer wait times.

Motorola DS7708. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232. Product color: Black, International Protection (IP) code: IP52. Power source type: DC, Input voltage: 5 V, Power consumption: 480 mA. Weight: 17.6 oz (500 g), Width: 5.87" (149 mm), Depth: 3.82" (97 mm)

Type	Fixed bar code reader
Scanner type	1D/2D
Sensor type	LED
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Motion tolerance (cm/s)	254
Connectivity technology	Wired
Standard interfaces	RS-232
Product color	Black
International Protection (IP) code	IP52
Built-in display	No
Power source type	DC
Input voltage	5 V
Power consumption	480 mA
Weight	17.6 oz (500 g)
Width	5.87" (149 mm)
Depth	3.82" (97 mm)
Height	5.63" (143 mm)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 85%
Harmonized System (HS) code	84716070
