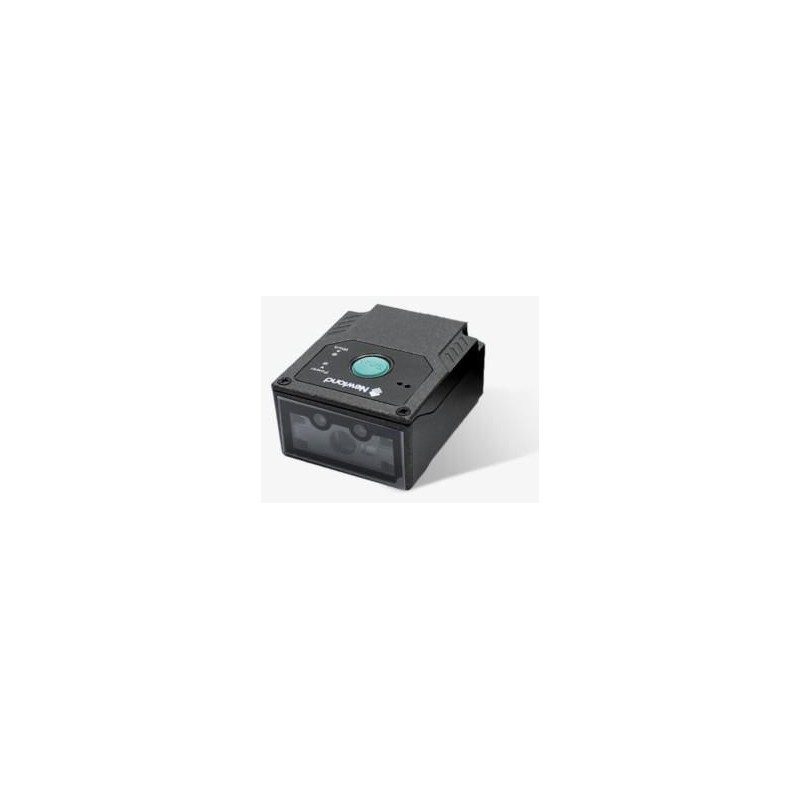

NLS-FM430L-U
  • NLS-FM430L-U

NLS-FM430L-U

Newland
2D Mega Pixel Fixed Mounted Reader with 2 mtr. USB extension cable, Laser Aimer, white light & IR sensor. (Barracuda)
CHF137.3
Tax included
CHF127.0 Tax excluded
Delivery in 4-5 days
Quantity
In stock
35 Items

Description
2D Mega Pixel Fixed Mounted Reader with 2 mtr. USB extension cable.
Laser Aimer, white light & IR sensor. (Barracuda)
___________________________________________________________

it allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users
The new FM430 Barracuda is Newland’s most aggressive and efficient fixed mount scanner to date, making it a strong all-round solution. It’s equipped with a megapixel camera that scans virtually any 1D and 2D barcode with impressive speed and ease. On top of that, its programming, IR sensor and light sensor help keep users moving, even in low light conditions. The combination of these features is what makes the device really knock the socks off similar scanners in the industry. It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users.

Megapixel camera.
The FM430 Barracuda is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small ones, with impressive speed and ease.

Snappy, also in less than perfect conditions.
A combination of the IR sensor and the light sensor helps to keep workers moving, even in low light conditions. Its strong, white light ensures barcodes are always well lit.

Handsfree or manual scanning.
Companies looking for automatic scanning to relieve manual labor can set up the FM430 Barracuda for handsfree scanning. Alternatively, a manual trigger button can be used if preferred.

Intelligent programming.
The sensors of the FM430 Barracuda automatically adjust the brightness of supplementary lighting based on the light that reflects off the barcode. This also makes it an optimal solution for scanning from mobile phone screens. Depending on the application, the scanner can be set to optimally read from close and long distance.

Reliable outdoor use.
With an IP rating of 54, this fixed mount scanner can be placed in a housing and used outdoors without worrying about dust or moisture.

Bright laser aimer (optional).
The FM430 Barracuda is available with a red cross laser that makes scanning easy and intuitive, even for the most inexperienced users.

Application scenarios.
Self-service kiosks used in e-commerce, express delivery services, access control, loyalty, mobile payment, events ticket redemption, gaming cash outs, postal services, transport boarding passes, parking ticket machines, production line.

Specifications

Operational conditions

Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-40 - 70 °C

Performance

BuzzerYes
CertificationFCC B, CE EMC B, IEC60825, IEC62471, KC
International Protection (IP) codeIP54
LED indicatorsYes
Product colourBlack

Ports & interfaces

Connectivity technologyWired
Standard interfacesRS-232

Power

Input voltage5 V
Power consumption276.8 mA
Power source typeUSB

Scanning

2D (matrix & stacked) barcodes supportedAztec Code/Data Matrix/MaxiCode/Micro QR Code/MicroPDF417/PDF417/QR Code
Linear (1D) barcodes supportedCodabar/Code 11/Code 128/Code 39/Code 93/EAN 128/EAN-13/EAN-8/Industrial 2 of 5/ITF-14/MSI/Plessey/U.P.C.
Pitch reading angle-55 - 55 °
Scanner type1D/2D
Sensor typeCMOS
Tilt reading angle-55 - 55 °
TypeFixed bar code reader
Yaw reading angle0 - 360 °

Technical details

Compliance certificatesRoHS
Sustainability certificatesRoHS

Vendor information

Brand NameNewland
Warranty5
Product Details
35 Items
New

Data sheet

Internationaler Schutzcode (IP)
IP54
Eingangsspannung
5 V
Tilt reading angle
-55 - 55 °
Compliance certificates
RoHS
LED-Anzeigen
Yes
Sensorart
CMOS
Konnektivitätstechnologie
Wired
Zertifizierung
FCC B, CE EMC B, IEC60825, IEC62471, KC
Stromquellentyp
USB
Nachhaltigkeitszertifikate
RoHS
Standardschnittstellen
RS-232
Energieverbrauch
276.8 mA
Typ
Fixed bar code reader
Brand Name
Newland
Warranty
5
Betriebstemperatur (TT)
-20 - 60 °C
Lagertemperatur (TT)
-40 - 70 °C
Relative Luftfeuchtigkeit im Betrieb (HH)
5 - 95 %
Produktfarbe
Black
Scannertyp
1D/2D
2D-Barcodes (Matrix und gestapelt) werden unterstützt
Aztec Code/Data Matrix/MaxiCode/Micro QR Code/MicroPDF417/PDF417/QR Code
Gier-Lesewinkel
0 - 360 °
Lineare (1D) Barcodes werden unterstützt
Codabar/Code 11/Code 128/Code 39/Code 93/EAN 128/EAN-13/EAN-8/Industrial 2 of 5/ITF-14/MSI/Plessey/U.P.C.
Summer
Yes

Specific References

EAN13
5706998315496
MPN
NLS-FM430L-U
