VIGI_NVR1008H-8MP

Security Never Shuts Down

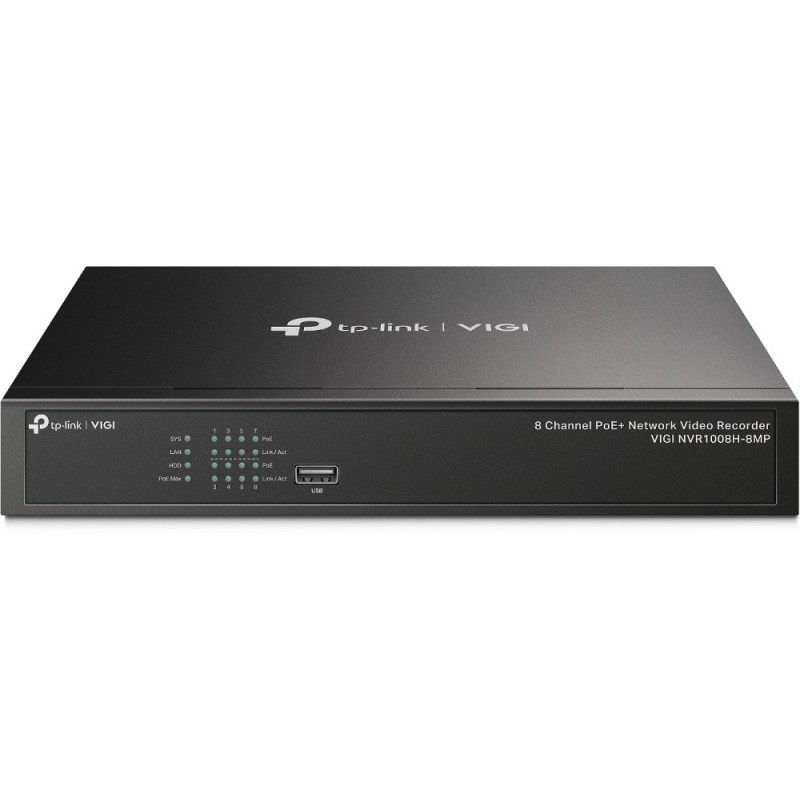

VIGI NVR1008H-8MP 8 Channel PoE+ Network Video Recorder

Every angle all on one screen.
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle.

Dedicated 8 PoE+ ports (113 W budget) for simplified IP camera deployment.
Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

Reviewing footage is faster than ever.
8-Channel Simultaneous Playback
Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

Security for every hour and every day.
24/7 Continuous Recording
Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.

Keep an eye on things even when you are on the move.
Remote Monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.

Flexible installation gives you more convenience.
Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk.

Greet your visitors before they enter.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

TP-Link VIGI NVR1008H-8MP. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 1080p, 2160p. Maximum storage capacity: 10 TB, HDD interface: SATA. Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP. Product color: Black. Power consumption (typical): 4.82 W, Output current: 2.43 A, Output voltage: 53.5 V

Video input channels	8 channels
Maximum resolution	3840 x 2160 pixels
Alarm input channels	8
Alarm output channels	1
Video recording modes	720p, 1080p, 2160p
Supported resolutions	3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Video formats supported	H.264, H.264+, H.265, H.265+
Input bandwidth	80 Mbit/s
Output bandwidth	60 Mbit/s
Wi-Fi	No
Number of HDDs installed	0
HDD capacity	0 GB
Maximum storage capacity	10 TB
HDD interface	SATA
Ethernet LAN (RJ-45) ports	1
HDMI output	Yes
HDMI ports quantity	1
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	2
Audio RCA inputs	1
Audio RCA outputs	1
Supported network protocols	TCP/IP, DHCP, DNS, NTP, UPnP
LED indicators	Yes
Product color	Black
Power consumption (typical)	4.82 W
Output current	2.43 A
Output voltage	53.5 V
Total Power over Ethernet (PoE) budget	119 W
Operating temperature (T-T)	-10 - 55 °C
Width	11.6" (294 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Package width	9.84" (250 mm)
Package depth	15.7" (400 mm)
Package height	3.15" (80 mm)
Package weight	4.63 lbs (2.1 kg)
