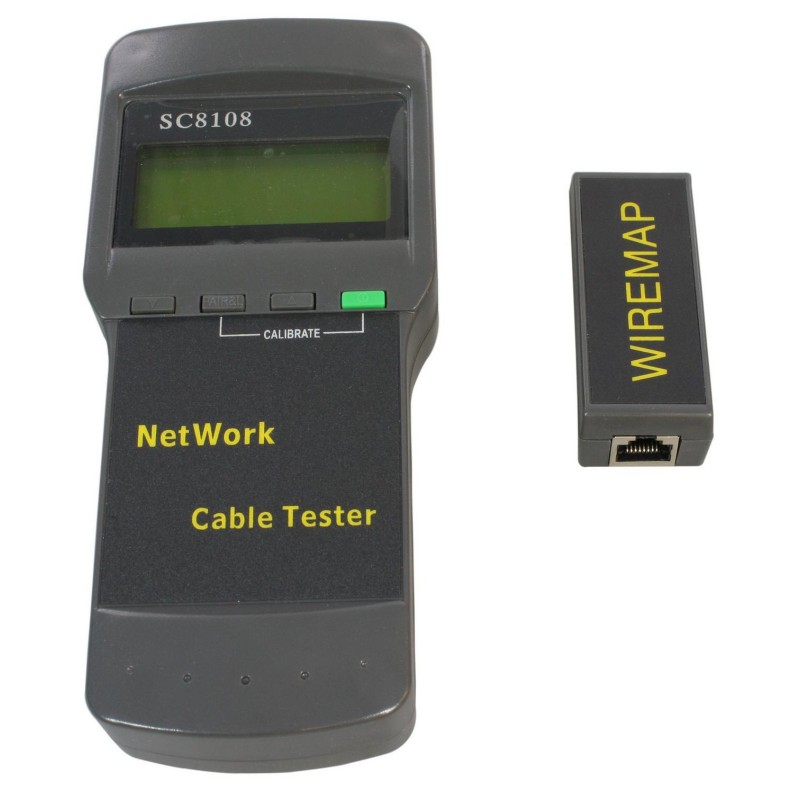

CAB-TEST2

Features:
- One person enough to complete cable continuity check
- Checks wiring error in 5E, 6E, coaxial and telephone line
- Such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
- Locates the wiring or connection error
- Measures cable length and determines the distance of open circuit and short circuit
- Dynamically calibrates cable length and makes length measurement as accurate as 97%
- Simple and easy use, big screen to display test clear
- Portable unit with long battery life (wait-case 50 hours)
- Automatically time-delay shut off
- Measures length and pair with or without far-end recognizer
- Locates cable and there are 8 far-end passive test jacks (ID no.: ID1 - ID 8)
- Far-end recognize with prompting voice
- Self-checking function and automatically compensates any change in battery capacity or ambient temperature
- Single board computer software watchdog design and reliable operating

Microconnect CAB-TEST2. Supported connectors: RJ-45, Test type: Short circuit testing, Display type: LCD. Weight: 6.35 oz (180 g). Package width: 10.7" (272 mm), Package depth: 9.02" (229 mm), Package height: 2.36" (60 mm)

Supported connectors	RJ-45
Test type	Short circuit testing
Display type	LCD
Product color	Black
Self-checking function	Yes
Auto shut-off delay time	Yes
Measuring cable length	Yes
Easy to use	Yes
Weight	6.35 oz (180 g)
Package width	10.7" (272 mm)
Package depth	9.02" (229 mm)
Package height	2.36" (60 mm)
Package weight	26.3 oz (746 g)
