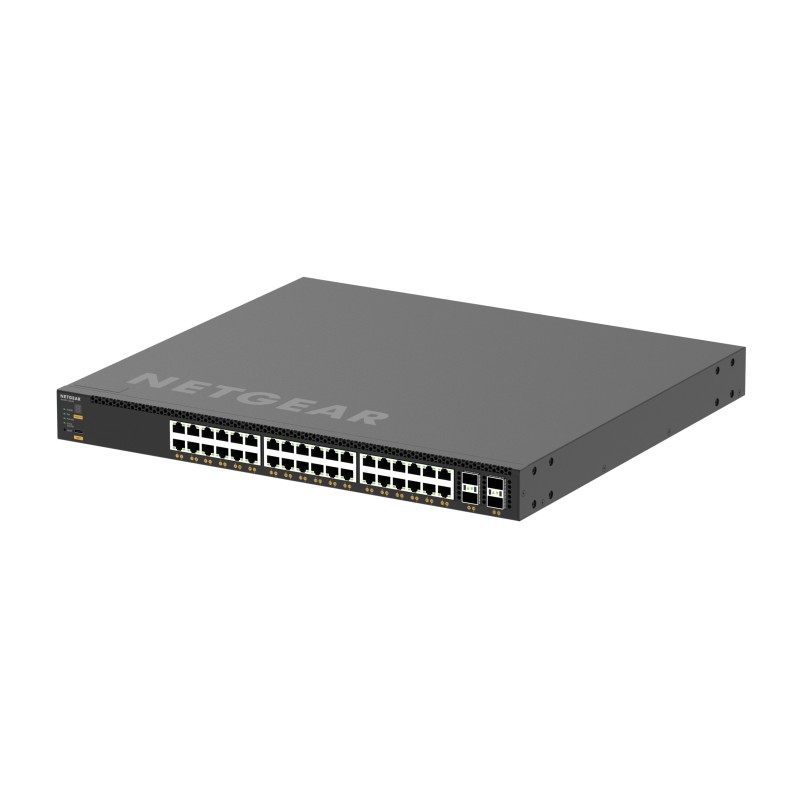

XSM4340CV-100NES - W128602442

Data sheet

Product color

Black

Weight

16.2 lbs (7.33 kg)

Internal memory

4096 MB

Processor model

ARM Cortex-A57

AC input frequency

60 Hz

Width

17.3" (440 mm)

Height

1.7" (43.2 mm)

AC input voltage

100 - 240 V

Depth

15.7" (400 mm)

Memory type

DDR4-SDRAM

Format

1U

Power source

AC

LED indicators

Yes

Power supply

750 W

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

User guide

Yes

Processor frequency

1800 MHz

Cables included

AC, USB Type-C

Included power plug types

EU, NA, UK

Built-in processor

Yes

Sustainability compliance

Yes

Networking standards

Power consumption (typical)

148 W

Compliance certificates

Power consumption (max)

454 W

Flash memory

512 MB

Operating altitude

0 - 118110.2" (0 - 3000 m)

Non-operating altitude

0 - 118110.2" (0 - 3000 m)

Password protection

Yes

Web-based management

Yes

Quality of Service (QoS) support

Yes

Switch type

Managed

Basic switching RJ-45 Ethernet ports quantity

36

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Power connector

AC-in jack

10G support

Yes

Full duplex

Yes

Switching capacity

920 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

12000

Packet buffer memory

64 MB

Rate limiting

Yes

MAC address filtering

Yes

Management protocols

SNMP V1, V2, V3

Power over Ethernet (PoE)

Yes

VLAN support

Yes

Virtual LAN features

Access Control List (ACL)

Yes

Rack mounting

Yes

Stackable

Yes

Switch layer

L3

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Number of VLANs

4093

MAC address table

16000 entries

DHCP features

Authentication type

RADIUS, TACACS+

Queue scheduling algorithms

Multicast support

Yes

Power over Ethernet (PoE) power per port

90 W

Total Power over Ethernet (PoE) budget

1760 W

ARP inspection

Yes

IGMP snooping

Yes

Loop protection

Yes

BPDU filtering/protection

Yes

Authentication

Noise level

54 dB

Power supply included

Yes

Access Control List (ACL) egress

1023

Access Control List (ACL) ingress

511

Root protection

Yes

DoS attack prevention

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

Routing protocols

Static port security

Yes

Multicast Listener Discovery (MLD) snooping

Y

sFlow

Yes

Rack mount kit

Yes

Throughput

684.48 Mpps

Policy-based routing

Yes

IPv4 routes

512

IPv6 routes

256

10G Ethernet (copper) ports quantity

36

SFP28 ports quantity

4

Airflow direction

Front-to-back airflow

Latency (1 Gbps)

2.54 µs

Latency (10 Gbps)

2.75 µs

IGMP proxy

Yes

Power over Ethernet 4PPoE (PoE++) ports quantity

36

6to4 tunnel

Yes

Specific References

UPC

606449165104

EAN13

0606449165104

MPN

XSM4340CV-100NES
