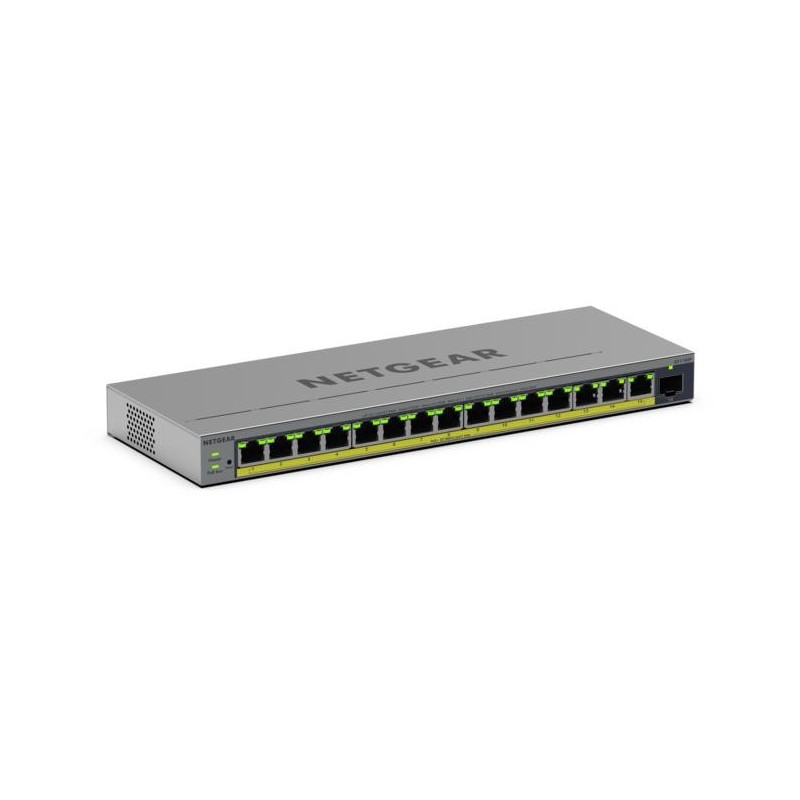

GS116EP-100EUS - W129177350

Data sheet

Product color

Gray

Ethernet LAN data rates

1000 Mbit/s

Weight

29.3 oz (830 g)

Width

11.3" (286 mm)

Height

1.06" (27 mm)

Power source type

AC/DC

Depth

3.98" (101 mm)

Warranty period

5 year(s)

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Quick start guide

Yes

Networking standards

IEEE 802.1p, IEEE 802.3az

Manual

Yes

Housing material

Metal

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), KC, VCCI

Power consumption (max)

198.7 W

Mean time between failures (MTBF)

784742 h

Operating altitude

0 - 118110.2" (0 - 3000 m)

Quality of Service (QoS) support

Yes

Switch type

Managed

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Switching capacity

1 Gbit/s

Jumbo frames support

Yes

Jumbo frames

10000

Packet buffer memory

4.1 MB

Rate limiting

Yes

Power over Ethernet (PoE)

Yes

VLAN support

Yes

Virtual LAN features

Port-based VLAN

Bandwidth

32 Gbit/s

SFP module slots quantity

1

Switch layer

L2/L3

Installed SFP modules quantity

1

Number of VLANs

64

MAC address table

8000 entries

Queue scheduling algorithms

Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast support

Yes

Power over Ethernet plus (PoE+) ports quantity

15

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

180 W

IGMP snooping

Yes

Number of multicast groups filtered

128

Specific References

UPC

606449174816

EAN13

0606449174816

MPN

GS116EP-100EUS
