MS305E-100EUS - W129020724

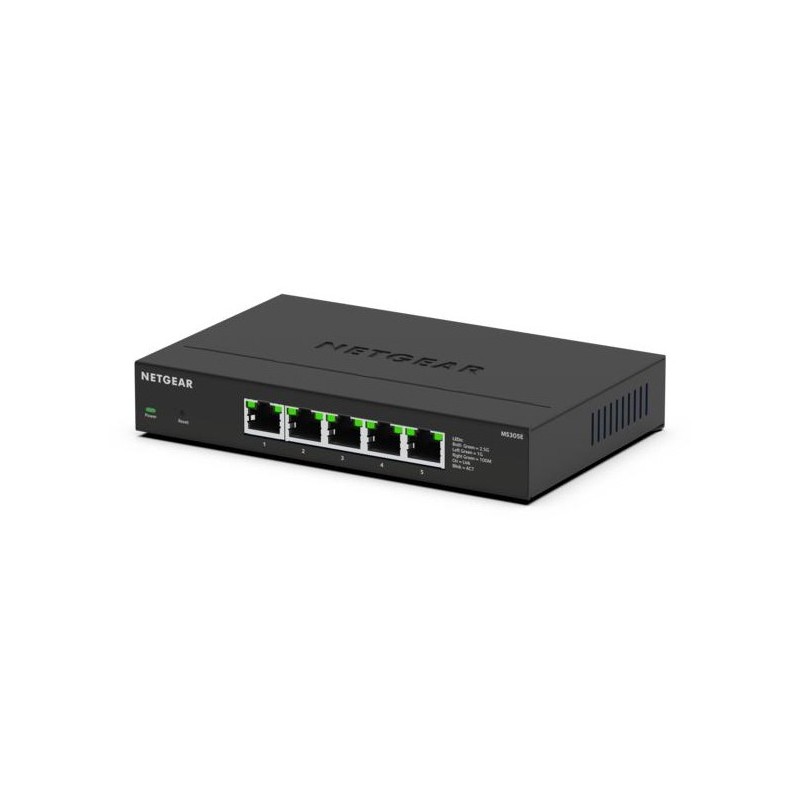

NETGEAR MS305E, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Wall mountable
Description
NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch
MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
NETGEAR MS305E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Wall mountable
MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
NETGEAR MS305E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Wall mountable
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Cable length detection | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 3.72 Mpps |
| Latency (1 Gbps) | 4.9 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Packet buffer memory | 1 MB |
| Rack mounting | No |
| Stackable | No |
| Product color | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| Number of fans | 0 fan(s) |
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 4273003 h |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Input voltage | 12 V |
| Power consumption (max) | 5.6 W |
| Power over Ethernet (PoE) | No |
| Warranty period | 5 year(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Height | 1.06" (27 mm) |
| Weight | 15.9 oz (450 g) |
| Compliance certificates | CCC, Low Voltage Directive (LVD) |
Product Details
W129020724
13 Items
New
Data sheet
- Product color
- Black
- Ethernet LAN data rates
- 100,1000,2500 Mbit/s
- Weight
- 15.9 oz (450 g)
- Input voltage
- 12 V
- Width
- 6.22" (158 mm)
- Height
- 1.06" (27 mm)
- Depth
- 3.98" (101 mm)
- Warranty period
- 5 year(s)
- Power source
- DC
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Number of fans
- 0 fan(s)
- Auto MDI/MDI-X
- Yes
- Input current
- 1 A
- Networking standards
- IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- Housing material
- Metal
- Compliance certificates
- CCC, Low Voltage Directive (LVD)
- Power consumption (max)
- 5.6 W
- Mean time between failures (MTBF)
- 4273003 h
- Operating altitude
- 0 - 118110.2" (0 - 3000 m)
- Wall mountable
- Yes
- Quality of Service (QoS) support
- Yes
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- 2.5G Ethernet (100/1000/2500)
- 10G support
- No
- Full duplex
- Yes
- Switching capacity
- 40 Gbit/s
- Forwarding rate
- 3.72 Mpps
- Jumbo frames support
- Yes
- Jumbo frames
- 12288
- Packet buffer memory
- 1 MB
- Power over Ethernet (PoE)
- No
- Rack mounting
- No
- DC input voltage
- 12 V
- Stackable
- No
- MAC address table
- 16000 entries
- Noise level
- 0 dB
- Power supply included
- Yes
- Half duplex
- Yes
- Head-of-line (HOL) blocking
- Yes
- Fanless
- Yes
- Cable length detection
- Yes
- Latency (1 Gbps)
- 4.9 µs
Specific References
- UPC
- 606449170634
- EAN13
- 0606449170634
- MPN
- MS305E-100EUS
