XS512EM-100EUS - XS512EM-100EUS

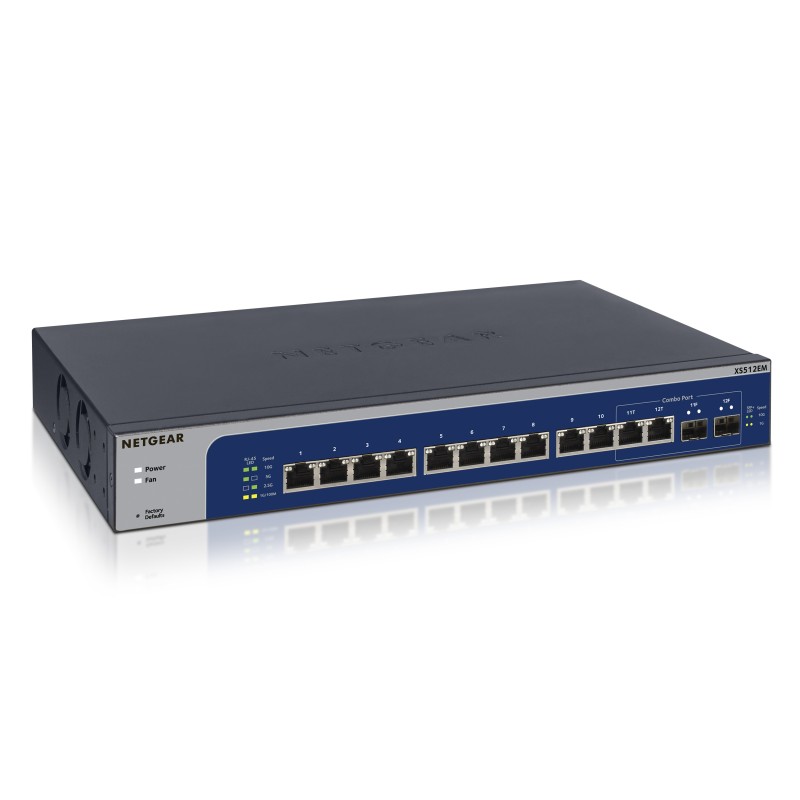

NETGEAR XS512EM, Managed, L2, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Description
Unlock your Network Potential with 10-Gigabit/Multi-Gigabit 5-Speed Networking Switches
Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.
With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle
NETGEAR XS512EM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 12. MAC address table: 32000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U
Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.
With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle
NETGEAR XS512EM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 12. MAC address table: 32000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 64 |
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Rack mounting | Yes |
| Form factor | 1U |
| Product color | Blue, Gray |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Mean time between failures (MTBF) | 1113477 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 261.38 BTU/h |
| Width | 12.9" (328 mm) |
| Depth | 8.03" (204 mm) |
| Height | 1.69" (43 mm) |
| Weight | 5.53 lbs (2.51 kg) |
| Sustainability certificates | ENERGY STAR |
| Certification | 47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1 |
| Harmonized System (HS) code | 85176990 |
Product Details
XS512EM-100EUS
3 Items
New
Data sheet
- Product color
- Blue, Gray
- Weight
- 5.53 lbs (2.51 kg)
- Harmonized System (HS) code
- 85176990
- AC input frequency
- 50 - 60 Hz
- Width
- 12.9" (328 mm)
- Height
- 1.69" (43 mm)
- AC input voltage
- 100 - 240 V
- Depth
- 8.03" (204 mm)
- Format
- 1U
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Number of fans
- 2 fan(s)
- Input current
- 2 A
- Sustainability certificates
- ENERGY STAR
- Networking standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Mean time between failures (MTBF)
- 1113477 h
- Quality of Service (QoS) support
- Yes
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- Power connector
- DC-in jack
- 10G support
- Yes
- Switching capacity
- 240 Gbit/s
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Packet buffer memory
- 3 MB
- MAC address filtering
- Yes
- Power over Ethernet (PoE)
- No
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN
- Rack mounting
- Yes
- Switch layer
- L2
- Broadcast storm control
- Yes
- Number of VLANs
- 64
- MAC address table
- 32000 entries
- DHCP features
- DHCP client
- Heat dissipation
- 261.38 BTU/h
- SFP+ module slots quantity
- 2
- IGMP snooping
- Yes
Specific References
- UPC
- 606449129441
- EAN13
- 0606449129441
- MPN
- XS512EM-100EUS
