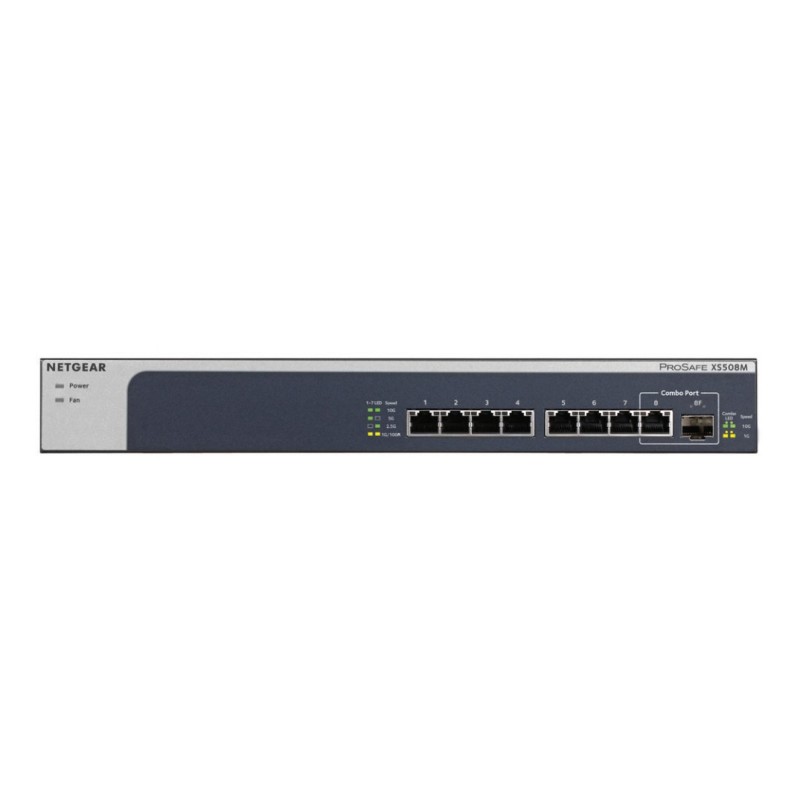

XS508M-100EUS - XS508M-100EUS

Data sheet

Product color

Gray, Silver

Weight

3.28 lbs (1.49 kg)

Harmonized System (HS) code

85176990

AC input frequency

50 - 60 Hz

Width

12.9" (328 mm)

Height

1.7" (43.2 mm)

AC input voltage

100 - 240 V

Certification

47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438

Depth

6.65" (169 mm)

Power source

AC

LED indicators

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Input current

1.5 A

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Power consumption (typical)

21.31 W

Power consumption (max)

39 W

Mean time between failures (MTBF)

1145157 h

Operating altitude

0 - 118110.2" (0 - 3000 m)

Quality of Service (QoS) support

Yes

Switch type

Unmanaged

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Power connector

DC-in jack

10G support

Yes

Switching capacity

160 Gbit/s

Jumbo frames support

Yes

Jumbo frames

9000

Rack mounting

Yes

Safety

CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI

MAC address table

2000 entries

Heat dissipation

147.86 BTU/h

SFP+ module slots quantity

1

Gigabit Ethernet (copper) ports quantity

7

Specific References

UPC

606449131116

EAN13

0606449131116

MPN

XS508M-100EUS
