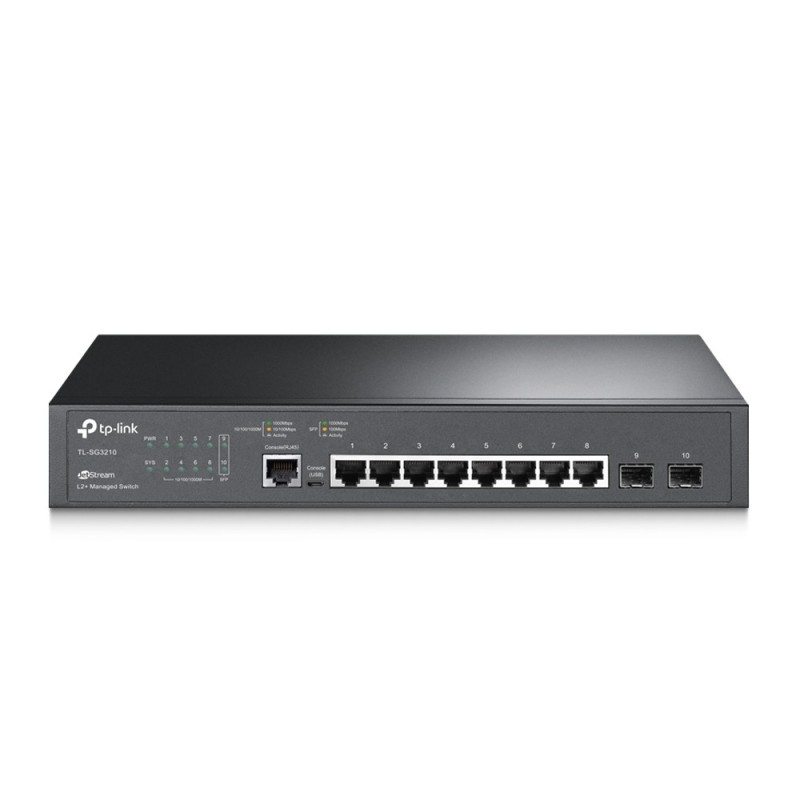

TL-SG3210
TP-Link JetStream TL-SG3210, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Description
Convenient Gigabit Switch
for a Complete Omada Network
JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
TP-Link JetStream TL-SG3210. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/micro-USB. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1U
for a Complete Omada Network
JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
TP-Link JetStream TL-SG3210. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/micro-USB. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Console port | RJ-45/micro-USB |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.9 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | RADIUS |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Rack mounting | Yes |
| Form factor | 1U |
| Product color | Black |
| LED indicators | Yes |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Minimum system requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 6.84 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 11.6" (294 mm) |
| Depth | 7.09" (180 mm) |
| Height | 1.73" (44 mm) |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
| Package width | 15.7" (400 mm) |
| Package depth | 9.84" (250 mm) |
| Package height | 3.15" (80 mm) |
| Package weight | 4.19 lbs (1.9 kg) |
| Harmonized System (HS) code | 85176990 |
Product Details
New
Data sheet
- Product color
- Black
- Harmonized System (HS) code
- 85176990
- AC input frequency
- 50/60 Hz
- Width
- 11.6" (294 mm)
- Height
- 1.73" (44 mm)
- Power source type
- AC
- AC input voltage
- 100 - 240 V
- Depth
- 7.09" (180 mm)
- Package weight
- 4.19 lbs (1.9 kg)
- Package width
- 15.7" (400 mm)
- Package depth
- 9.84" (250 mm)
- Package height
- 3.15" (80 mm)
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- User guide
- Yes
- Quick start guide
- Yes
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Manual
- Yes
- Power consumption (max)
- 6.84 W
- Web-based management
- Yes
- Quality of Service (QoS) support
- Yes
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- 10G support
- No
- Switching capacity
- 20 Gbit/s
- Forwarding rate
- 14.9 Mpps
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Packet buffer memory
- 4.1 MB
- Minimum system requirements
- Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
- System event log
- Yes
- Firmware upgradeable
- Yes
- Rate limiting
- Yes
- MAC address filtering
- Yes
- Management protocols
- SNMPv1/v2c/v3, SNTP
- Power over Ethernet (PoE)
- No
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Access Control List (ACL)
- Yes
- Console port
- RJ-45/micro-USB
- Rack mounting
- Yes
- SFP module slots quantity
- 2
- Switch layer
- L2/L3
- MIB support
- Yes
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Spanning tree protocol
- Yes
- Number of VLANs
- 4000
- MAC address table
- 8000 entries
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- Authentication type
- RADIUS
- Multicast support
- Yes
- ARP inspection
- Yes
- Port mirroring
- Yes
- Number of IP interfaces
- 16
- IGMP snooping
- Yes
- SSH/SSL support
- Yes
- Loop protection
- Yes
- BPDU filtering/protection
- Yes
- Authentication
- MAC-based authentication, Port-based authentication
- Power supply included
- Yes
- Head-of-line (HOL) blocking
- Yes
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Static port security
- Yes
- Configuring Location Settings (CLI)
- Yes
- IP-MAC-Port binding
- Yes
- IP routing
- Yes
- Static route
- Yes
- Multicast Listener Discovery (MLD) snooping
- Y
- Rack mount kit
- Yes
- Cloud-managed
- Yes
- Fanless
- Yes
- IPv4 & IPv6 features
- IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
- IPv4 routes
- 48
- IPv6 routes
- 48
- Formfaktor
- 1U
Specific References
- MPN
- TL-SG3210
16 other products in the same category:
CHF92.0
tax incl.
CHF85.1
tax excl.
Will be ordered for you
CHF4,067.2
tax incl.
CHF3,762.4
tax excl.
Will be ordered for you
Reference: AMG510-24GAT-4XS-RP540
Brand: AMG
AMG510-24GAT-4XS-RP540-UK
Commercial Managed Switch, 24 x 10/100/1000TX 30W PoE (540W Budget*) & 4 x 100M/1G/2.5G/10G SFP+ UK
CHF4,277.6
tax incl.
CHF3,957.1
tax excl.
Will be ordered for you
CHF321.5
tax incl.
CHF297.4
tax excl.
Will be ordered for you
Reference: W128263825
Brand: Cisco
C9300L-48T-4G-A
Catalyst 9300 48-Port Data Ntw Ess Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey
CHF6,947.8
tax incl.
CHF6,427.2
tax excl.
Will be ordered for you
Brand: D-Link
DGS-1530-52/E
D-Link DGS-1530-52/E, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
CHF1,084.9
tax incl.
CHF1,003.6
tax excl.
Will be ordered for you
Reference: 6770K26
Brand: Cisco
WS-C3650-48FS-S-RFB
Catalyst 3650-48FS-S, Standalone, 1U, 48 x 10/100/1000 Ethernet PoE+, 4x1G Uplink ports, DRAM 4GB, Flash 2GB, 1025W, IP Base
CHF158.7
tax incl.
CHF146.8
tax excl.
In stock
CHF1,433.5
tax incl.
CHF1,326.1
tax excl.
In stock
Reference: JH178A-RFB
Brand: Hewlett Packard Enterprise
JH178A-RFB
SU FF 5930-2Slot+2QSFP+ Switch ****
CHF124.9
tax incl.
CHF115.5
tax excl.
In stock
CHF61.5
tax incl.
CHF56.9
tax excl.
Will be ordered for you
CHF724.4
tax incl.
CHF670.1
tax excl.
In stock
Brand: Omada
TL-SG1428PE
TP-Link TL-SG1428PE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
CHF271.7
tax incl.
CHF251.3
tax excl.
Will be ordered for you
Reference: Z000055
Brand: TP-Link
TL-SF1008P
TP-Link TL-SF1008P, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)
CHF70.9
tax incl.
CHF65.6
tax excl.
Will be ordered for you
CHF707.2
tax incl.
CHF654.2
tax excl.
In stock
CHF1,270.6
tax incl.
CHF1,175.4
tax excl.
Will be ordered for you
CHF177.3
tax incl.
CHF164.0
tax excl.
In stock
TP-Link JetStream TL-SG3210, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
