CHF337.7
tax incl.
CHF312.4
tax excl.
In stock
CHF145.3
tax incl.
CHF134.4
tax excl.
In stock

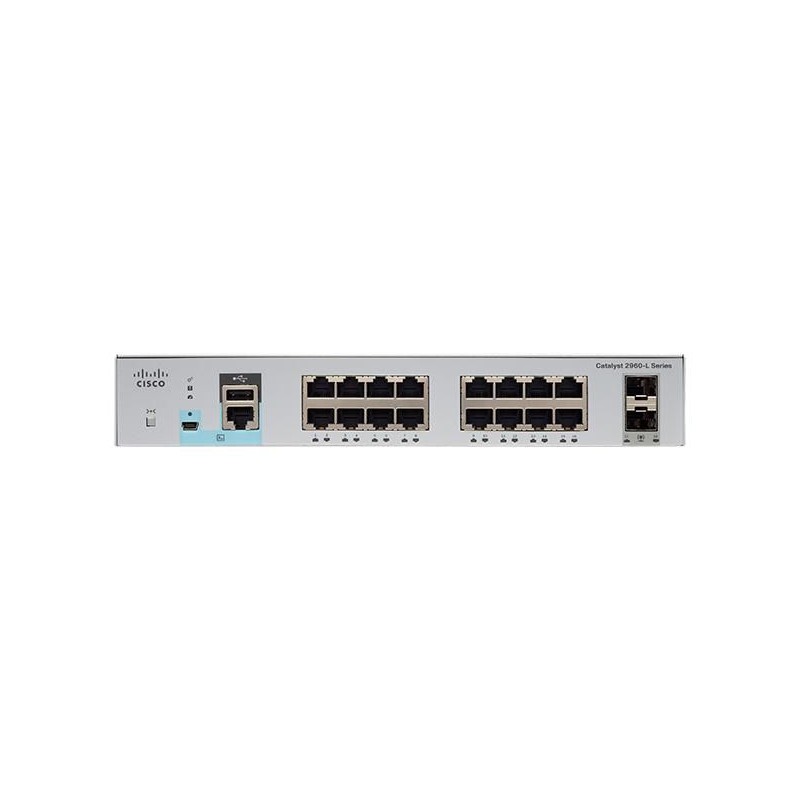

WS-C2960L-16TS-LL-RFB
The Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications.
Description
The Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOS® Software features.
- Layer 2
- 2 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding.
- Layer 2
- 2 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding.
Specifications
Data transmission
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 36 Gbit/s |
Design
| Electromagnetic compatibility | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
| Form factor | 1U |
| LED indicators | Activity/Link/PoE/Speed/System |
| Product colour | Grey |
| Rack mounting | Yes |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
Management features
| ARP inspection | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
Multicast features
| Multicast support | Yes |
Network
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Full duplex | Yes |
| Networking standards | IEEE 802.1ab/IEEE 802.1af/IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of VLANs | 4094 |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
Operational conditions
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
Performance
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 2416689 h |
| Processor frequency | 800 MHz |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Installed SFP modules quantity | 2 |
| SFP module slots quantity | 2 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 110 - 240 V |
| Input current | 0.26 A |
| Power consumption (typical) | 19.3 W |
Protocols
| Management protocols | SNMPv3, Telnet, RMON |
Security
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client/DHCP server |
| IGMP snooping | Yes |
| Security algorithms | SNMP/SSH |
| SSH/SSL support | Yes |
Vendor information
| Brand Name | Cisco |
| Warranty | 1 |
Product Details
17 Items
Refurbished
Data sheet
- Auto MDI/MDI-X
- Yes
- Flash memory
- 256 MB
- Virtual LAN features
- Private VLAN
- Safety
- UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
- Broadcast storm control
- Yes
- Number of VLANs
- 4094
- DHCP features
- DHCP client/DHCP server
- Electromagnetic compatibility
- 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
- ARP inspection
- Yes
- MAC-Adresstabelle
- 16000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Ebene wechseln
- L2
- Schaltertyp
- Managed
- Multicast-Unterstützung
- Yes
- Kupfer-Ethernet-Verkabelungstechnologie
- 1000BASE-T/100BASE-TX/10BASE-T
- Netzwerkstandards
- IEEE 802.1ab/IEEE 802.1af/IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- Spanning-Tree-Protokoll
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 16
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Konsolenport
- RJ-45
- Verwaltungsprotokolle
- SNMPv3, Telnet, RMON
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- Prozessorfrequenz
- 800 MHz
- Quality of Service (QoS)-Unterstützung
- Yes
- MIB-Unterstützung
- Y
- SSH/SSL-Unterstützung
- Yes
- Mean time between failures (MTBF)
- 2416689 h
- Breaking capacity
- 36 Gbit/s
- Formfaktor
- 1U
- LED-Anzeigen
- Activity/Link/PoE/Speed/System
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 110 - 240 V
- Stromverbrauch (typisch)
- 19.3 W
- Sicherheitsalgorithmen
- SNMP/SSH
- Eingangsstrom
- 0.26 A
- Vollduplex
- Yes
- Eingebauter Prozessor
- Yes
- Betriebshöhe
- 0 - 3000 m
- Nichtbetriebshöhe
- 0 - 4500 m
- VLAN-Unterstützung
- Yes
- Brand Name
- Cisco
- Warranty
- 1
- Betriebstemperatur (TT)
- -5 - 40 °C
- Lagertemperatur (TT)
- -25 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 90 %
- Interner Speicher
- 512 MB
- Produktfarbe
- Grey
- Anzahl der SFP-Modulsteckplätze
- 2
- Anzahl der installierten SFP-Module
- 2
Specific References
