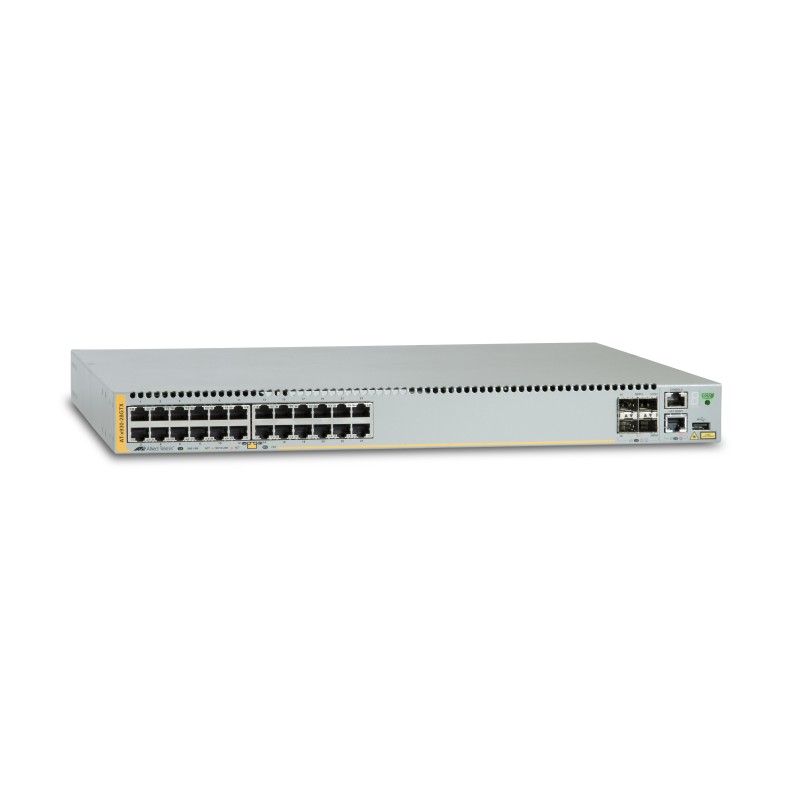

AT-X930-28GTX

Data sheet

Product color

Gray

Weight

11.2 lbs (5.1 kg)

Harmonized System (HS) code

85176990

AC input frequency

47/63 Hz

Width

17.3" (440 mm)

Height

1.73" (44 mm)

AC input voltage

90 - 260 V

Depth

16.5" (420 mm)

LED indicators

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Storage relative humidity (H-H)

5 - 95%

Copper ethernet cabling technology

100BASE-TX, 1000BASE-TX

Power consumption (typical)

84 W

Security algorithms

802.1x RADIUS

Fiber ports quantity

4

Operating altitude

0 - 120000" (0 - 3048 m)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Switch type

Managed

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

10G support

Yes

Full duplex

Yes

Switching capacity

2.88 Gbit/s

System event log

Yes

Firmware upgradeable

Yes

Power over Ethernet (PoE)

No

VLAN support

Yes

Virtual LAN features

Private VLAN

Rack mounting

Yes

Safety

UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL

Stackable

Yes

Switch layer

L3

MIB support

Y

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

Link aggregation

Yes

Spanning tree protocol

Yes

MAC address table

64000 entries

DHCP features

DHCP server, DHCP client

Multicast support

Yes

Heat dissipation

285 BTU/h

Traffic classification

Yes

ARP inspection

Yes

SFP+ module slots quantity

4

Port mirroring

Yes

Routing entries

2000

IGMP snooping

Yes

Multicast MAC address table

2000 entries

Noise level

39.7 dB

Gigabit Ethernet (copper) ports quantity

24

Throughput

214.3 Mpps

Expansion module support

Yes

Latency (1 Gbps)

3.7 µs

Latency (10 Gbps)

2.6 µs

Specific References

UPC

767035199450

MPN

AT-X930-28GTX
