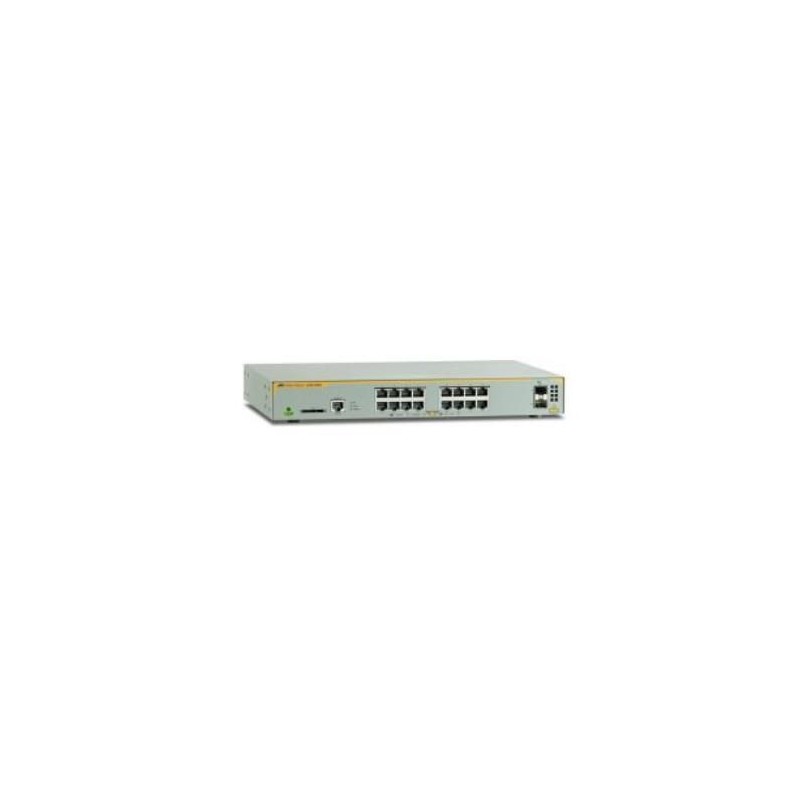

AT-X230-18GT-50
L2+ managed switch, 16 x 10/100/1000Mbps, 2 x SFP uplink slots, 1 Fixed AC power supply EU Power cord
Description
The Allied Telesis x230-18GT features 16 x 10/100/1000T ports with 2 SFP Gigabit uplink ports. A full feature-set and compact design makes it ideal for applications at the network edge, supporting Gigabit to the desktop for maximum network performance.
Specifications
Data transmission
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Packet buffer memory | 1.5 MB |
| Switching capacity | 40 Gbit/s |
| Throughput | 26.8 Mpps |
Design
| Certification | RoHS/UL, cUL, UL-EU/UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | Yes |
Management features
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Traffic classification | Yes |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | No |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ad/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1v/IEEE 802.1w/IEEE 802.1x/IEEE 802.2/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN/Stacked VLAN/Tagged VLAN |
| VLAN support | Yes |
Operational conditions
| Heat dissipation | 61 BTU/h |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
Optical fiber
| Fiber ethernet cabling technology | 1000BASE-X/1000BASE‑LX/1000BASE‑SX/1000BASE‑ZX |
Performance
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Memory type | DDR-SDRAM |
| Noise level | 29 dB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Compatible memory cards | SD/SDHC |
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 2 |
| SFP module slots quantity | 2 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 18 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Protocols
| Management protocols | SNMP, Telnet |
| Supported network protocols | IPv4 / IPv6 |
Security
| Access Control List (ACL) | Yes |
| Authentication | Guest VLAN/MAC-based authentication/Port-based authentication |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client/DHCP server |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Security algorithms | 3DES/802.1x RADIUS/AES/DES/HTTPS/MD5/RSA/SHA-1/SHA-2/SSH/SSH-2/SSL/TLS |
Vendor information
| Brand Name | Allied Telesis |
| Warranty | 1 |
