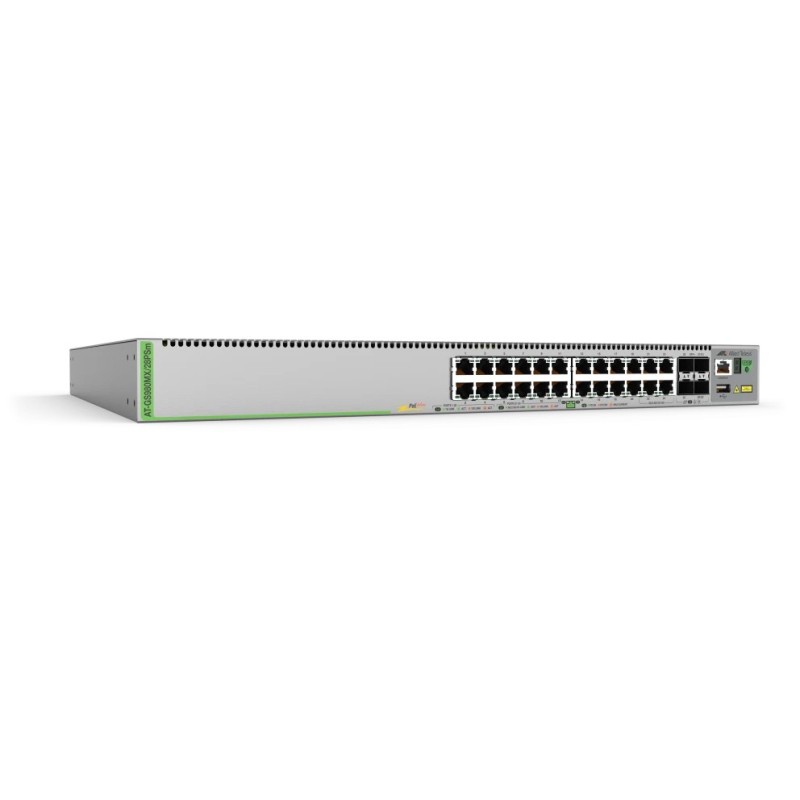

AT-GS980MX/28PSM-50
Allied Telesis AT-GS980MX/28PSM-50, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Description
Stackable Multi-Gigabit Layer 3 Lite Switches
The GS980MX Series of stackable Layer 3 Lite switches feature high capacity, resiliency, and easy management. With Multi-Gigabit ports and Power over Ethernet, and available in both compact and high port density models, they provide an ideal choice for high-speed connectivity at the network edge.
- Support high-speed Wi-Fi 6 solutions, and network upgrades over legacy cabling, with 2.5G and 5G connectivity (PoE models)
- Connect and power endpoints such as IP phones, wireless APs, and more with up to 30 Watts of PoE+
- Support high-power devices such as outdoor PTZ cameras with heaters/blowers and enhanced lighting controllers, with up to 90 Watts of PoE++ (10 and 18 port models)
- Build a resilient network with the ability to stack multiple units using VCStack™
- Extend network reach in distributed environments using long-distance stacking
- Reduce costs and automate network management with Autonomous Management Framework™ Plus (AMF Plus)
Allied Telesis AT-GS980MX/28PSM-50. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20, Installed SFP+ modules quantity: 4, Console port: USB. MAC address table: 16000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
The GS980MX Series of stackable Layer 3 Lite switches feature high capacity, resiliency, and easy management. With Multi-Gigabit ports and Power over Ethernet, and available in both compact and high port density models, they provide an ideal choice for high-speed connectivity at the network edge.
- Support high-speed Wi-Fi 6 solutions, and network upgrades over legacy cabling, with 2.5G and 5G connectivity (PoE models)
- Connect and power endpoints such as IP phones, wireless APs, and more with up to 30 Watts of PoE+
- Support high-power devices such as outdoor PTZ cameras with heaters/blowers and enhanced lighting controllers, with up to 90 Watts of PoE++ (10 and 18 port models)
- Build a resilient network with the ability to stack multiple units using VCStack™
- Extend network reach in distributed environments using long-distance stacking
- Reduce costs and automate network management with Autonomous Management Framework™ Plus (AMF Plus)
Allied Telesis AT-GS980MX/28PSM-50. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20, Installed SFP+ modules quantity: 4, Console port: USB. MAC address table: 16000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | USB |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| MAC address table | 16000 entries |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119 Mpps |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP Option 82, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 3DES, AES, MD5, SHA-1, SHA-2, SHA-256, SHA-384, SHA-512, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast support | Yes |
| Management protocols | SNMPv1, v2c, v3 |
| Routing protocols | RIP, RIP-2, RIPng |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product color | Gray |
| LED indicators | Yes |
| Physical stacking (units) | 2 |
| Memory type | DDR3-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
| Noise level | 42 dB |
| Power consumption (typical) | 70 W |
| Power consumption (max) | 510 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 1741 BTU/h |
| Width | 17.4" (441 mm) |
| Depth | 16.6" (421 mm) |
| Height | 1.73" (44 mm) |
| Weight | 12.3 lbs (5.6 kg) |
| Package width | 22.2" (563 mm) |
| Package depth | 21" (534 mm) |
| Package height | 5.04" (128 mm) |
| Package weight | 16.8 lbs (7.6 kg) |
| Compliance certificates | RoHS, cTUVus |
| Certification | EN55024 FCC Class A, EN55032 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, RCM EN55024, EN61000-3-levels 2 UL60950-1, CSA-C22.2 No. 60950-1, EN60950-1, UL62368-1 cUL, cULus |
| Sustainability compliance | Yes |
Product Details
2 Items
New
Data sheet
- Product color
- Gray
- Ethernet LAN data rates
- 10,100,1000,2500,5000 Mbit/s
- Weight
- 12.3 lbs (5.6 kg)
- Internal memory
- 1000 MB
- Width
- 17.4" (441 mm)
- Height
- 1.73" (44 mm)
- Certification
- EN55024 FCC Class A, EN55032 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, RCM
EN55024, EN61000-3-levels 2
UL60950-1, CSA-C22.2 No. 60950-1,
EN60950-1, UL62368-1
cUL, cULus - Depth
- 16.6" (421 mm)
- Package weight
- 16.8 lbs (7.6 kg)
- Memory type
- DDR3-SDRAM
- Package width
- 22.2" (563 mm)
- Package depth
- 21" (534 mm)
- Package height
- 5.04" (128 mm)
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -25 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
- Storage relative humidity (H-H)
- 5 - 95%
- Sustainability compliance
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Power consumption (typical)
- 70 W
- Compliance certificates
- RoHS, cTUVus
- Power consumption (max)
- 510 W
- Flash memory
- 256 MB
- Security algorithms
- 3DES, AES, MD5, SHA-1, SHA-2, SHA-256, SHA-384, SHA-512, SSH, SSH-2, SSL/TLS
- Operating altitude
- 0 - 118110.2" (0 - 3000 m)
- Web-based management
- Yes
- Quality of Service (QoS) support
- Yes
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 20
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- 10G support
- Yes
- Switching capacity
- 160 Gbit/s
- Forwarding rate
- 119 Mpps
- Jumbo frames support
- Yes
- Jumbo frames
- 10000
- Packet buffer memory
- 1.5 MB
- System event log
- Yes
- MAC address filtering
- Yes
- Management protocols
- SNMPv1, v2c, v3
- Power over Ethernet (PoE)
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
- Access Control List (ACL)
- Yes
- Console port
- USB
- Rack mounting
- Yes
- Stackable
- Yes
- Switch layer
- L3
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 4
- Link aggregation
- Yes
- Spanning tree protocol
- Yes
- Number of VLANs
- 4094
- MAC address table
- 16000 entries
- DHCP features
- DHCP Option 82, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
- Queue scheduling algorithms
- SP, WRR+SP, Weighted Round Robin (WRR)
- Multicast support
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 370 W
- Heat dissipation
- 1741 BTU/h
- Traffic classification
- Yes
- ARP inspection
- Yes
- Port mirroring
- Yes
- Number of queues
- 8
- IGMP snooping
- Yes
- Loop protection
- Yes
- BPDU filtering/protection
- Yes
- Authentication
- MAC-based authentication, Port-based authentication, Web-based authentication
- Noise level
- 42 dB
- Routing protocols
- RIP, RIP-2, RIPng
- Physical stacking (units)
- 2
- Configuring Location Settings (CLI)
- Yes
- Static route
- Yes
- Gigabit Ethernet (copper) ports quantity
- 24
- Formfaktor
- 1U
Specific References
- UPC
- 767035212937
- EAN13
- 0767035212937
- MPN
- AT-GS980MX/28PSM-50
