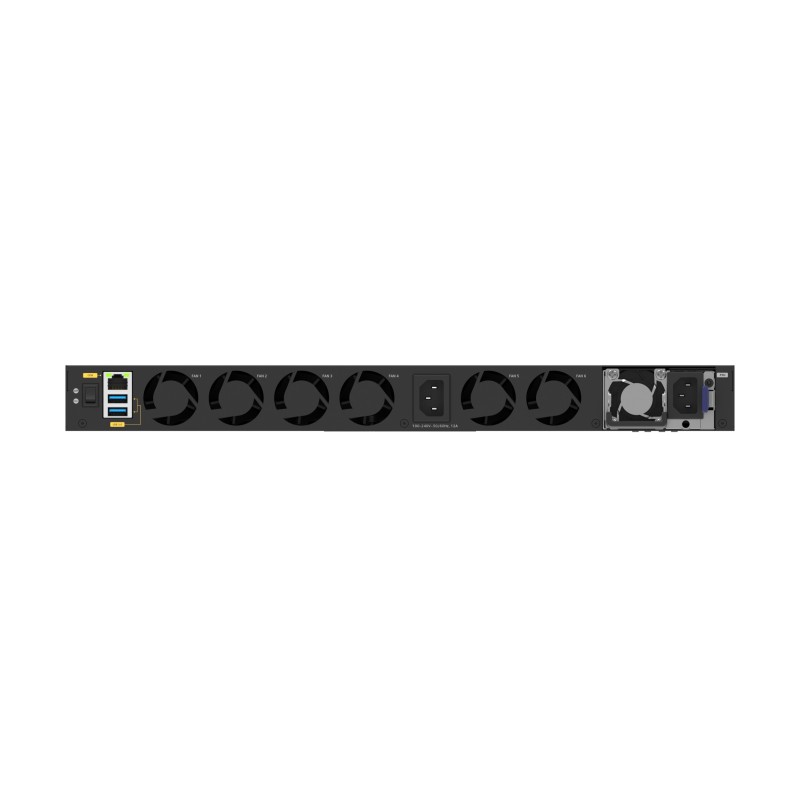

XSM4344C-100NES

Data sheet

Product color

Black

Weight

17.1 lbs (7.76 kg)

Internal memory

4096 MB

Processor model

ARM Cortex-A57

Width

17.3" (440 mm)

Height

1.7" (43.2 mm)

Power source type

AC

Depth

15.7" (400 mm)

Memory type

DDR4-SDRAM

LED indicators

Yes

Power supply

750 W

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Cables included

AC, USB Type-C

Included power plug types

EU, UK, NA

Quick start guide

Yes

Built-in processor

Yes

Sustainability compliance

Yes

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u

Power consumption (typical)

200.4 W

Compliance certificates

BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Power consumption (max)

413 W

Flash memory

512 MB

Operating altitude

0 - 118110.2" (0 - 3000 m)

Non-operating altitude

0 - 118110.2" (0 - 3000 m)

Password protection

Yes

Web-based management

Yes

Quality of Service (QoS) support

Yes

Switch type

Managed

Basic switching RJ-45 Ethernet ports quantity

40

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Power connector

AC-in jack

10G support

Yes

Full duplex

Yes

Switching capacity

1600 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

12000

Packet buffer memory

256 MB

Rate limiting

Yes

MAC address filtering

Yes

Management protocols

SNMP V1, V2, V3

Power over Ethernet (PoE)

Yes

VLAN support

Yes

Virtual LAN features

MAC address-based VLAN, Private VLAN, Voice VLAN

Access Control List (ACL)

Yes

Rack mounting

Yes

Stackable

Yes

Switch layer

L3

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Number of VLANs

4093

MAC address table

16000 entries

DHCP features

DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping

Authentication type

RADIUS, TACACS+

Queue scheduling algorithms

Strict Priority Queue (SPQ), Weighted random early detection (WRED)

Multicast support

Yes

Power over Ethernet plus (PoE+) ports quantity

40

Power over Ethernet (PoE) power per port

90 W

Total Power over Ethernet (PoE) budget

1676 W

ARP inspection

Yes

IGMP snooping

Yes

Loop protection

Yes

BPDU filtering/protection

Yes

Authentication

Guest VLAN, MAC-based authentication

Power supply included

Yes

Access Control List (ACL) egress

1023

Access Control List (ACL) ingress

511

Root protection

Yes

DoS attack prevention

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

Routing protocols

OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2

Static port security

Yes

Multicast Listener Discovery (MLD) snooping

Y

sFlow

Yes

Rack mount kit

Yes

Throughput

1190.4 Mpps

Policy-based routing

Yes

QSFP28 ports quantity

4

IPv4 routes

512

IPv6 routes

256

10G Ethernet (copper) ports quantity

40

Airflow direction

Front-to-back airflow

Latency (10 Gbps)

2.71 µs

IGMP proxy

Yes

Formfaktor

1U

6to4 tunnel

Yes

Processor frequency

1800 MHz

Specific References

UPC

606449165197

EAN13

0606449165197

MPN

XSM4344C-100NES
