Description

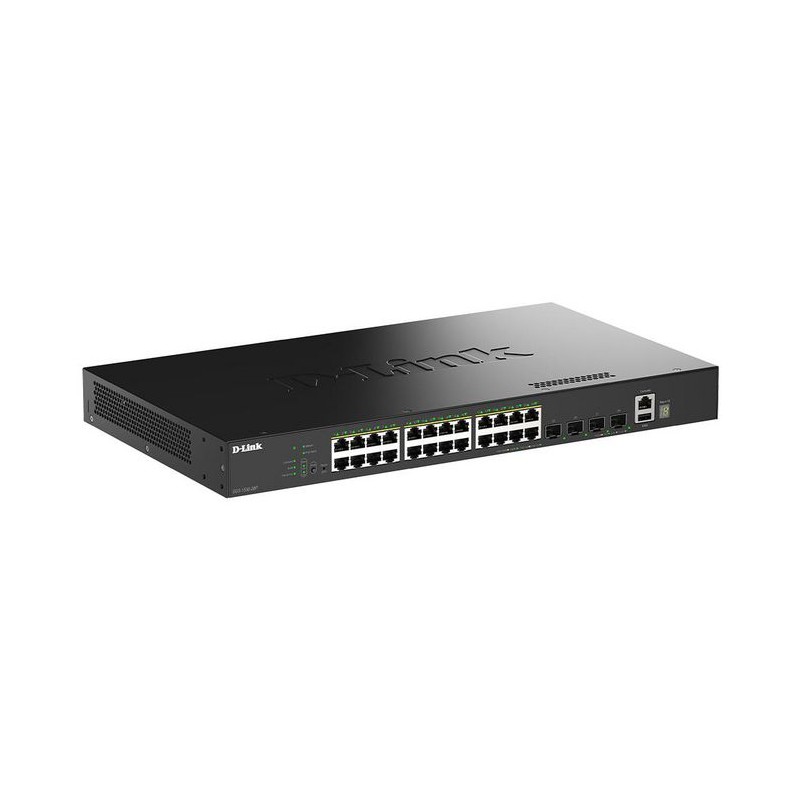

24 Ports GE PoE(30W) + 4 Ports 10G SFP+ Smart Managed Switch, 370W
- 24 Ports Gigabit PoE for downlink
- 4 Ports 10G SFP+ for uplink
- PoE IEEE802.3af/at options, power budget 370 W
- 6kV surge protection on all Gigabit Ethernet ports
- Physical stacking up to 9 switches
- ZTP (Zero-Touch Provisioning)
- Ethernet Ring Protection Switching (ERPS)
- IEEE 802.1ag for Connectivity Fault Management
- ITU-T Y.1731 for Delay Measurement Massages
- Manage through the Nuclias Network Controller
Specifications
Data transmission
| Forwarding rate | 95.24 Mpps |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | Yes |
| Switching capacity | 128 Gbit/s |
Design
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | Yes |
Management features
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Traffic classification | Yes |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs | 4096 |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Operational conditions
| Heat dissipation | 1554.96 BTU/h |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
Performance
| Mean time between failures (MTBF) | 330520 h |
| Noise level | 54.7 dB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| USB Type-A ports quantity | 1 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 456 W |
| Power source | AC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
Security
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 1000 |
| Access Control List (ACL) ingress | 2000 |
| Authentication type | RADIUS/TACACS+ |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Security algorithms | SNMP/SNMPv2/SNMPv3 |
| SSH/SSL support | Yes |
Vendor information
| Brand Name | D-Link |
| Warranty | 2 Month(s) |
Product Details
2026-03-13
New
Data sheet
- Auto MDI/MDI-X
- Yes
- Password protection
- Yes
- Stackable
- Yes
- Broadcast storm control
- Yes
- Number of VLANs
- 4096
- Heat dissipation
- 1554.96 BTU/h
- ARP inspection
- Yes
- Policy-based routing
- Yes
- MAC-Adresstabelle
- 16000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Anzahl Fans
- 3 Lüfter
- Gestellmontage
- Yes
- Ebene wechseln
- L2
- Schaltertyp
- Managed
- Verkehrsklassifizierung
- Yes
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3u/IEEE 802.3x
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Konsolenport
- RJ-45
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 24
- Gesamtbudget für Power over Ethernet (PoE)
- 370 W
- Stromversorgung über Ethernet (PoE)
- Yes
- Authentifizierungsart
- RADIUS/TACACS+
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- MAC-Adressfilterung
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Inklusive Netzteil
- Yes
- Anzahl der USB 2.0-Anschlüsse
- 1
- Paketpufferspeicher
- 1.5 MB
- Speichern und weiterleiten
- Yes
- Standorteinstellungen konfigurieren (CLI)
- Yes
- Portspiegelung
- Yes
- Anzahl der SFP+-Modulsteckplätze
- 4
- SSH/SSL-Unterstützung
- Yes
- Weiterleitungstarif
- 95.24 Mpps
- Schleifenschutz
- Yes
- Mean time between failures (MTBF)
- 330520 h
- Breaking capacity
- 128 Gbit/s
- LED-Anzeigen
- Yes
- Geräuschpegel
- 54.7 dB
- AC-Eingangsfrequenz
- 50/60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Sicherheitsalgorithmen
- SNMP/SNMPv2/SNMPv3
- Vollduplex
- Yes
- Stromverbrauch (max.)
- 456 W
- 10G-Unterstützung
- Yes
- VLAN-Unterstützung
- Yes
- Energiequelle
- AC
- Brand Name
- D-Link
- Warranty
- 2 Month(s)
- Betriebstemperatur (TT)
- -5 - 50 °C
- Lagertemperatur (TT)
- -20 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 0 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 95 %
- Produktfarbe
- Black
- Auto-Negotiation
- Yes
- Ausgang der Zugriffssteuerungsliste (ACL)
- 1000
- Zugriff auf Zugriffskontrollliste (ACL)
- 2000
- USB Type-A ports quantity
- 1
Specific References
- UPC
- 790069474590
- EAN13
- 0790069474590
- MPN
- DGS-1530-28P/E
