Description
Features
Cost-Effective, Reliable and Secure Access Layer Switches
- The HP 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.
Security and Quality of Service (QoS)
- The HP 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.
Simple Deployment and Management
- The HP 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.
Single View of the Network
- The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Cost-Effective, Reliable and Secure Access Layer Switches
- The HP 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.
Security and Quality of Service (QoS)
- The HP 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.
Simple Deployment and Management
- The HP 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.
Single View of the Network
- The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Specifications
Data transmission
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 2.3 µs |
| Latency (10-100 Mbps) | 7.4 µs |
| MAC address table | 16000 entries |
| Packet buffer memory | 3 MB |
| Switching capacity | 104 Gbit/s |
| Throughput | 77.3 Mpps |
Design
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Stackable | Yes |
Management features
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3u |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Operational conditions
| Heat dissipation | 236 BTU/h |
| Operating relative humidity (H-H) | 15 - 95 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 15 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Performance
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 256 MB |
| Memory type | DDR3-SDRAM |
| Processor frequency | 800 MHz |
| Virtual stacking (units) | 16 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 476 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 382 W |
Security
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| SSH/SSL support | Yes |
Vendor information
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 |
Product Details
J9772A
5 Items
Refurbished
Data sheet
- Auto MDI/MDI-X
- Yes
- Flash memory
- 128 MB
- Stackable
- Yes
- DHCP features
- DHCP server
- Heat dissipation
- 236 BTU/h
- MAC-Adresstabelle
- 16000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Ebene wechseln
- L2
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Kupfer-Ethernet-Verkabelungstechnologie
- 1000BASE-T/100BASE-TX/10BASE-T
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3u
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 48
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Gesamtbudget für Power over Ethernet (PoE)
- 382 W
- Stromversorgung über Ethernet (PoE)
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- Prozessorfrequenz
- 800 MHz
- Quality of Service (QoS)-Unterstützung
- Yes
- Durchsatz
- 77.3 Mpps
- Paketpufferspeicher
- 3 MB
- MIB-Unterstützung
- Y
- Portspiegelung
- Yes
- Ratenbegrenzung
- Yes
- SSH/SSL-Unterstützung
- Yes
- Breaking capacity
- 104 Gbit/s
- Formfaktor
- 1U
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 476 W
- Speichertyp
- DDR3-SDRAM
- Vollduplex
- Yes
- Eingebauter Prozessor
- Yes
- 10G-Unterstützung
- No
- VLAN-Unterstützung
- Yes
- Brand Name
- Hewlett Packard Enterprise
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 45 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 15 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 15 - 95 %
- Interner Speicher
- 256 MB
- Produktfarbe
- Grey
- Automatische Erkennung
- Yes
- Anzahl der installierten SFP-Module
- 4
- Latenz (1 Gbit/s)
- 2.3 µs
- Virtuelles Stapeln (Einheiten)
- 16
- Latenz (10-100 Mbit/s)
- 7.4 µs
Specific References
- EAN13
- 5712505684955
- MPN
- RP000345304
16 other products in the same category:
CHF93.9
tax incl.
CHF86.9
tax excl.
Last items in stock
CHF780.2
tax incl.
CHF721.7
tax excl.
In stock
CHF195.3
tax incl.
CHF180.7
tax excl.
In stock
CHF133.8
tax incl.
CHF123.8
tax excl.
In stock
CHF176.2
tax incl.
CHF163.0
tax excl.
In stock
Reference: W128277299
Brand: Hewlett Packard Enterprise
JL810A
Aruba Instant On 1830 8G Managed L2 Gigabit Ethernet (10/100/1000)
CHF124.7
tax incl.
CHF115.4
tax excl.
In stock
Brand: D-Link
GO-SW-24G/E
D-Link GO-SW-24G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
CHF131.4
tax incl.
CHF121.6
tax excl.
In stock
Reference: 777079
Brand: Black Box
LGB408A-R2
GIGABIT UNMANAGED SWITCH 10/100/1000 RJ-45 8 PORT LGB408A-R2, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex
CHF180.9
tax incl.
CHF167.3
tax excl.
Will be ordered for you
Brand: Advantech
EKI-7708E-4FPI-AE
4FE PoE and 4G SFP Managed Ethernet Switch, IEEE802.3af/at, 46~57VDC, -40~75?
CHF969.3
tax incl.
CHF896.7
tax excl.
Will be ordered for you
Reference: 1070268
Brand: Hewlett Packard Enterprise
JL813A
Aruba Instant On 1830 24G 12P Class4 Poe 2Sfp 195W Managed L2 Gigabit Ethernet (10/100/1000) Power Over Ethernet (Poe) 1U
CHF291.4
tax incl.
CHF269.6
tax excl.
In stock
Reference: W128280647
Brand: Hewlett Packard Enterprise
R8N88A
Aruba 6000 24G 4Sfp Managed L3 Gigabit Ethernet (10/100/1000) 1U
CHF650.3
tax incl.
CHF601.6
tax excl.
In stock
CHF195.7
tax incl.
CHF181.0
tax excl.
In stock
Reference: 876435
Brand: Hewlett Packard Enterprise
JL809A
Aruba Instant On 1960 48G 40P Class4 8P Class6 Poe 2Xgt 2Sfp+ 600W Managed L2+ Gigabit Ethernet (10/100/1000) Power Over Ethernet (Poe)
CHF1,682.1
tax incl.
CHF1,556.1
tax excl.
In stock
CHF85.7
tax incl.
CHF79.3
tax excl.
In stock
Brand: Hewlett Packard Enterprise
JL815A_ABB
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
CHF575.5
tax incl.
CHF532.4
tax excl.
In stock
You might also like
Reference: J9142B
Brand: Lanview
MO-CDL10J9142B
Lanview MO-CDL10J9142B, 1250 Mbit/s, SFP, LC, 393700.8" (10000 m)
CHF53.5
tax incl.
CHF49.5
tax excl.
Will be ordered for you

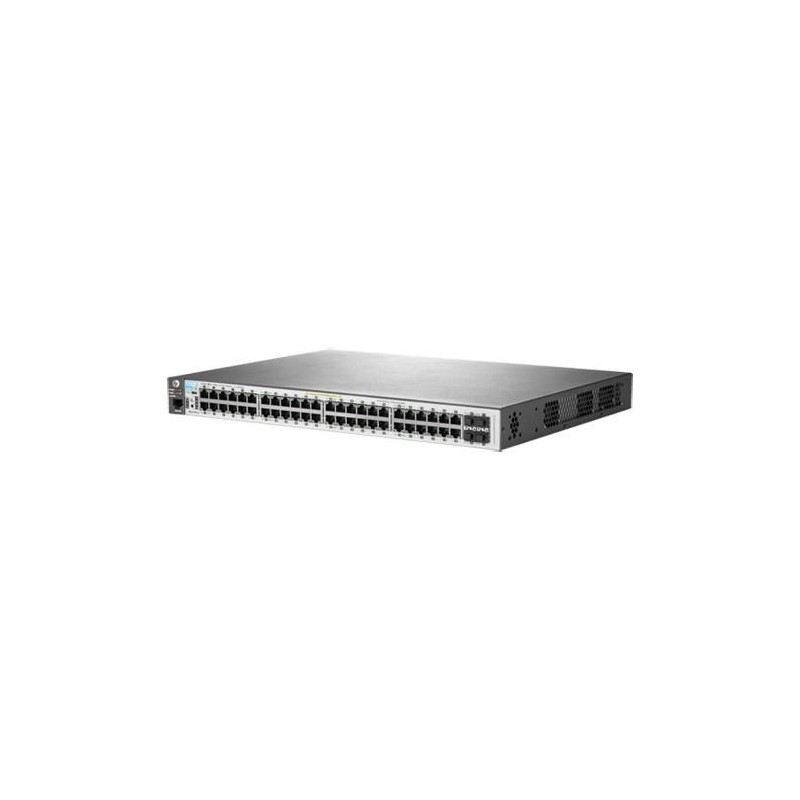

2530-48G-PoE+ Switch, refurbished
