Description
What This Product Does

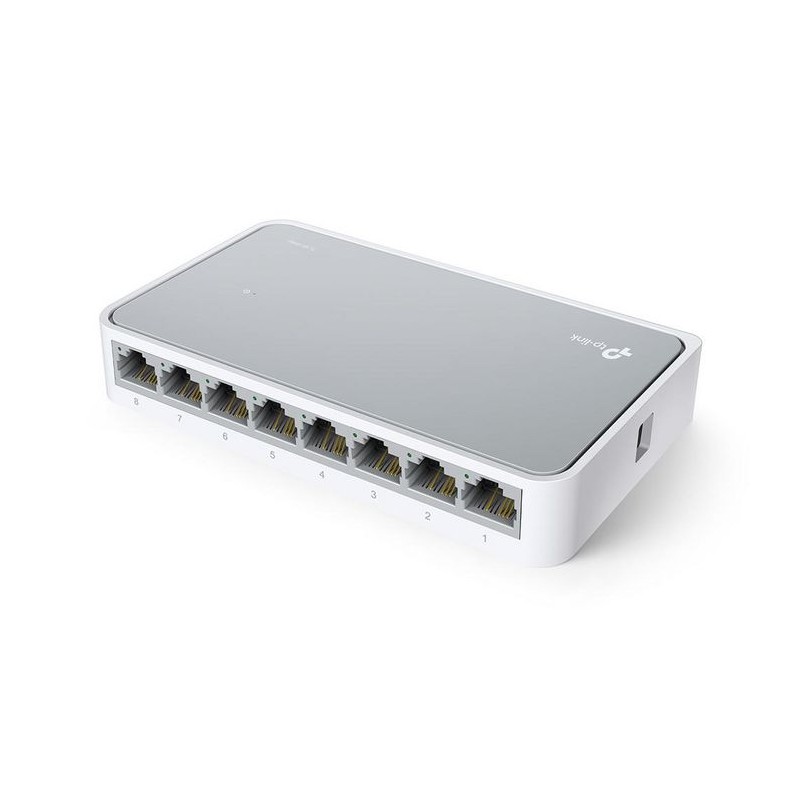

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 60% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
TP-LINK Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 60% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
TP-LINK Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
- 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop design
- Plug and play, no configuration required
Specifications
Data transmission
| MAC address table | 1000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 2 MB |
| Store-and-forward | Yes |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1.6 Gbit/s |
Design
| Certification | FCC, CE, RoHS |
| LED indicators | Yes |
| Product colour | White |
Management features
| Switch type | Unmanaged |
Network
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3u/IEEE 802.3x |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Connectivity LEDs | Y |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 140 x 87 x 27.5 mm |
Packaging content
| Quick start guide | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 2.2 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Protocols
| Supported network protocols | CSMA/CD, TCP/IP |
Vendor information
| Brand Name | TP-Link |
| Homepage | http://www.tplink.com |
| Warranty | 3 |
Product Details
NE00508
587 Items
New
Data sheet
- MAC-Adresstabelle
- 1000 Eintragungen
- Schaltertyp
- Unmanaged
- Kupfer-Ethernet-Verkabelungstechnologie
- 100BASE-TX/10BASE-T
- Netzwerkstandards
- IEEE 802.3u/IEEE 802.3x
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 8
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Fast Ethernet (10/100)
- Stromversorgung über Ethernet (PoE)
- No
- Maximum Datenübertragungsrate
- 0.1 Gbit/s
- Schnellstartanleitung
- Yes
- Paketpufferspeicher
- 2 MB
- Speichern und weiterleiten
- Yes
- Dimensions (WxDxH)
- 140 x 87 x 27.5 mm
- Homepage
- http://www.tplink.com
- Breaking capacity
- 1.6 Gbit/s
- LED-Anzeigen
- Yes
- Unterstützte Netzwerkprotokolle
- CSMA/CD, TCP/IP
- Konnektivitätstechnologie
- Wired
- Zertifizierung
- FCC, CE, RoHS
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stecker
- DC-in jack
- Vollduplex
- Yes
- Stromverbrauch (max.)
- 2.2 W
- 10G-Unterstützung
- No
- Brand Name
- TP-Link
- Warranty
- 3
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Produktfarbe
- White
- Konnektivitäts-LEDs
- Y
- Unterstützte Datenübertragungsraten
- 10/100 Mbps
Specific References
- EAN13
- 4250236800127
- MPN
- TL-SF1008D
