RP001235667 - J9019B

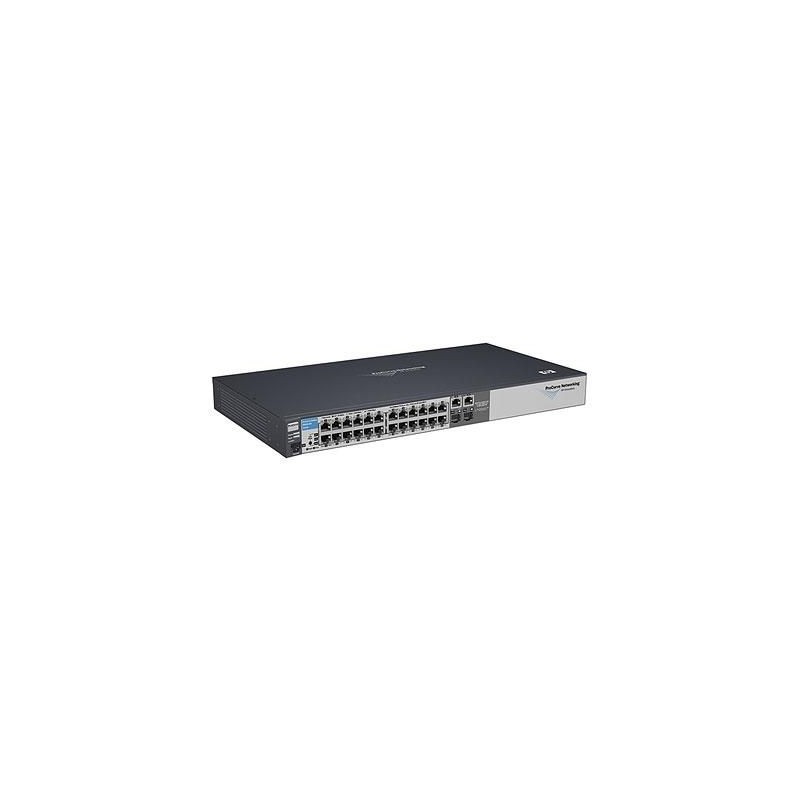

The ProCurve Switch 2510 Series consists of the 2510-24, a managed, Layer 2, 24-port 10/100 switch with 2 dual- personality Gigabit ports providing 10/100/1000T or mini-GBIC connectivity
Description
The ProCurve Switch 2510-24 is a managed, Layer 2, 24-port 10/100 switch with 2 dual-personality Gigabit ports providing 10/100/1000-T or mini-GBIC connectivity. The 2510-24 is fanless, ensuring quiet operation and making it ideal for deployment in open spaces. And it offers a basic Layer 2 feature set, including access security and basic traffic prioritization. Designed to cost-effectively meet the needs of small and growing networks, the 2510-24 brings commercial-grade quality to all businesses at an affordable price. It is also standards-based, facilitating interoperability with existing infrastructure and making it easy to deploy and manage.
Specifications
Data transmission
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.384 MB |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 8.8 Gbit/s |
| Throughput | 6.5 Mpps |
Design
| Electromagnetic compatibility | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3 |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | cUL (CSA 22.2 No. 60950); UL 60950-1; IEC 60950; EN 60950 |
| Stackable | Yes |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x |
| Spanning tree protocol | Yes |
Operational conditions
| Operating temperature (T-T) | 32 - 113 °F |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Authentication method | RADIUS, TACACS+ |
| Connectivity technology | Wired |
| Latency | 100 Mb Latency: <lt/> 4.9 µs (64-byte packets); 1000 Mb Latency: <lt/> 2.6 µs (64-byte packets) |
Performance
| Built-in processor | Yes |
| Flash memory | 8 MB |
| Internal memory | 64 MB |
| Memory type | SDRAM |
| Processor frequency | 264 MHz |
| Processor model | MIPS |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Console port | RJ-45 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 0.4 - 0.7 A |
| Power consumption (typical) | 20 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Protocols
| Management protocols | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP |
Security
| SSH/SSL support | Yes |
Vendor information
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 |
Product Details
J9019B
5 Items
Refurbished
Data sheet
- Auto MDI/MDI-X
- Yes
- Flash memory
- 8 MB
- Safety
- cUL (CSA 22.2 No. 60950); UL 60950-1; IEC 60950; EN 60950
- Stackable
- Yes
- Electromagnetic compatibility
- FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3
- MAC-Adresstabelle
- 8000 Eintragungen
- Gestellmontage
- Yes
- Ebene wechseln
- L2
- Schaltertyp
- Managed
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Konsolenport
- RJ-45
- Stromversorgung über Ethernet (PoE)
- No
- Verwaltungsprotokolle
- SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP
- Prozessormodell
- MIPS
- Prozessorfrequenz
- 264 MHz
- Maximum Datenübertragungsrate
- 1 Gbit/s
- Quality of Service (QoS)-Unterstützung
- Yes
- Authentifizierungsmethode
- RADIUS, TACACS+
- Durchsatz
- 6.5 Mpps
- Paketpufferspeicher
- 0.384 MB
- SSH/SSL-Unterstützung
- Yes
- Breaking capacity
- 8.8 Gbit/s
- Formfaktor
- 1U
- Konnektivitätstechnologie
- Wired
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 20 W
- Eingangsstrom
- 0.4 - 0.7 A
- Speichertyp
- SDRAM
- Vollduplex
- Yes
- Eingebauter Prozessor
- Yes
- 10G-Unterstützung
- No
- Brand Name
- Hewlett Packard Enterprise
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 45 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Interner Speicher
- 64 MB
- Produktfarbe
- Black
- Unterstützte Datenübertragungsraten
- 10/100/1000 Mbps
Specific References
- EAN13
- 5711783766292
- MPN
- RP001235667
