GSM4230PX-100EUS

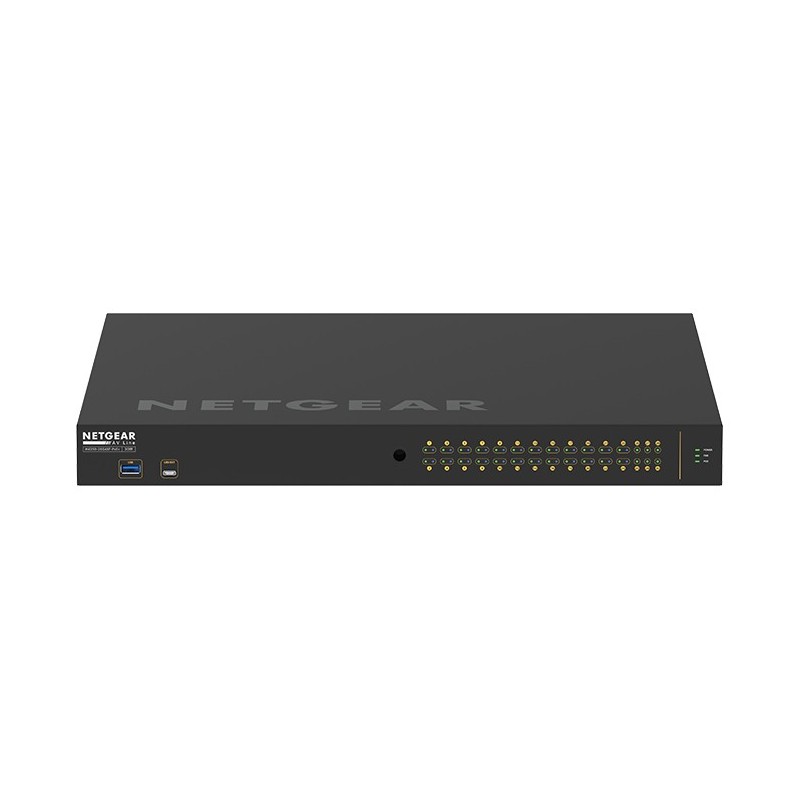

NETGEAR M4250-26G4XF-PoE+, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Description
Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back
Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables
Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
Adjustable fan functionality
Quiet mode with 42dB@25ºC, or fanless mode when PoE load and temperature allow
Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.
Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
NETGEAR M4250-26G4XF-PoE+. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 132 Gbit/s. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back
Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables
Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
Adjustable fan functionality
Quiet mode with 42dB@25ºC, or fanless mode when PoE load and temperature allow
Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.
Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
NETGEAR M4250-26G4XF-PoE+. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 132 Gbit/s. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| IPv4 routes | 512 |
| IPv6 routes | 128 |
| VLAN support | Yes |
| Number of VLANs | 4 |
| MAC address table | 16000 entries |
| Switching capacity | 132 Gbit/s |
| Throughput | 98.21 Mpps |
| Latency (1 Gbps) | 2.29 µs |
| Latency (10 Gbps) | 0.83 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| IPv4 FIB entries | 256 |
| IPv6 FIB entries | 16 |
| Rack mounting | Yes |
| Form factor | 1U |
| Product color | Black |
| Temperature sensor | Yes |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A57 |
| Noise level | 42 dB |
| Fanless | Yes |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 45 W |
| Width | 17.3" (440 mm) |
| Depth | 1.7" (43.2 mm) |
| Height | 15.7" (400 mm) |
| Weight | 12 lbs (5.45 kg) |
| Cables included | AC, LAN (RJ-45), USB Type-C |
| Rack mount kit | Yes |
| Harmonized System (HS) code | 85176990 |
Product Details
127 Items
New
Data sheet
- Product color
- Black
- USB 2.0 ports quantity
- 1
- Weight
- 12 lbs (5.45 kg)
- Harmonized System (HS) code
- 85176990
- Processor model
- ARM Cortex-A57
- Width
- 17.3" (440 mm)
- Height
- 15.7" (400 mm)
- Depth
- 1.7" (43.2 mm)
- Cables included
- AC, LAN (RJ-45), USB Type-C
- Built-in processor
- Yes
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Switching capacity
- 132 Gbit/s
- Jumbo frames support
- Yes
- Jumbo frames
- 12000
- Packet buffer memory
- 16 MB
- Power over Ethernet (PoE)
- Yes
- VLAN support
- Yes
- Rack mounting
- Yes
- Temperature sensor
- Yes
- Switch layer
- L2/L3
- Number of VLANs
- 4
- MAC address table
- 16000 entries
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Power over Ethernet (PoE) power per port
- 45 W
- SFP+ module slots quantity
- 4
- Noise level
- 42 dB
- Power supply included
- Yes
- Rack mount kit
- Yes
- Throughput
- 98.21 Mpps
- Fanless
- Yes
- IPv4 routes
- 512
- IPv6 routes
- 128
- Latency (1 Gbps)
- 2.29 µs
- Latency (10 Gbps)
- 0.83 µs
- IPv4 FIB entries
- 256
- IPv6 FIB entries
- 16
- Formfaktor
- 1U
Specific References
- UPC
- 606449151619
- EAN13
- 0606449151619
- MPN
- GSM4230PX-100EUS
