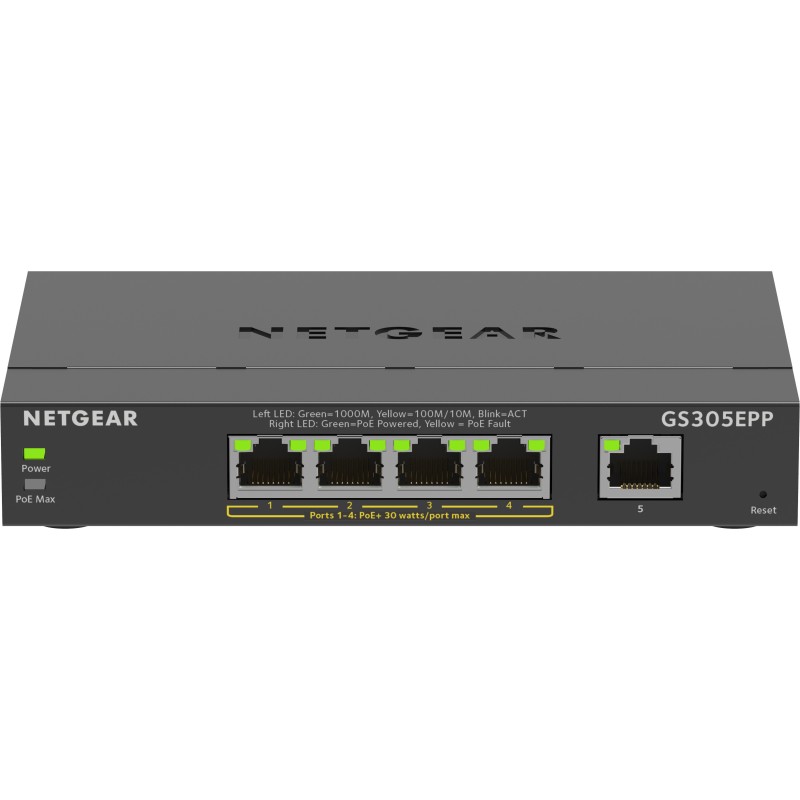

GS305EPP-100PES

Data sheet

Product color

Black

Ethernet LAN data rates

100 Mbit/s

Harmonized System (HS) code

85176990

Width

6.22" (158 mm)

Height

1.06" (27 mm)

Power source type

DC

Depth

3.98" (101 mm)

LED indicators

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Cables included

AC

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af

Operating altitude

0 - 118110.2" (0 - 3000 m)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Switch type

Managed

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

10G support

No

Full duplex

Yes

Switching capacity

10 Gbit/s

Jumbo frames support

Yes

Jumbo frames

9216

Power over Ethernet (PoE)

Yes

VLAN support

Yes

Switch layer

L2/L3

MIB support

Y

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

MAC address table

4000 entries

DHCP features

DHCP client

Multicast support

Yes

Power over Ethernet plus (PoE+) ports quantity

4

Port mirroring

Yes

IGMP snooping

Yes

Loop protection

Yes

Power supply included

Yes

Power over Ethernet (PoE) ports quantity

4

Specific References

UPC

606449153194

EAN13

0606449153194

MPN

GS305EPP-100PES
