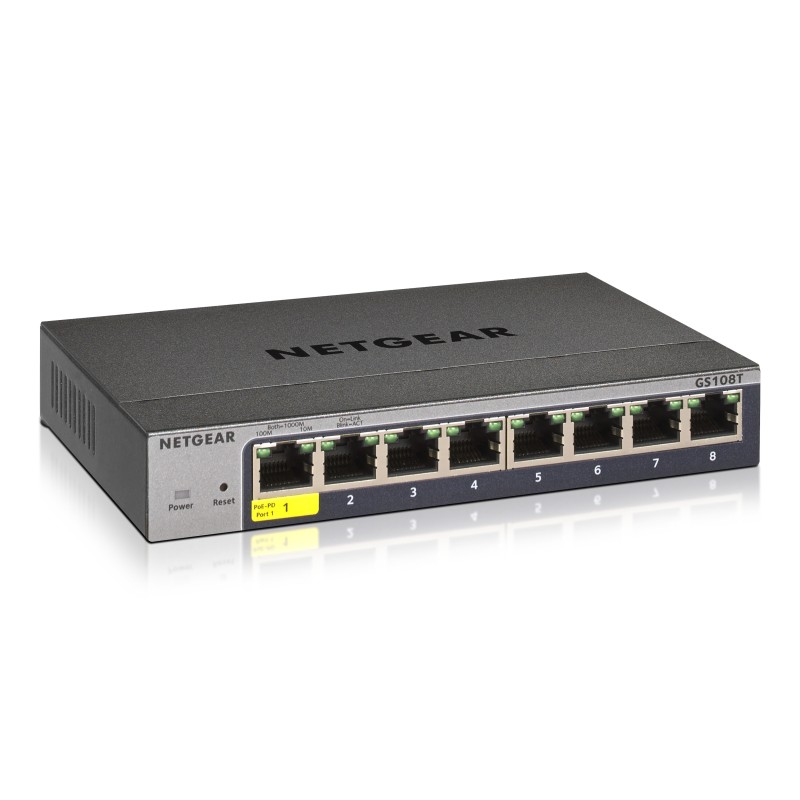

GS108T-300PES

Data sheet

Product color

Gray

Package type

Box

Weight

15.2 oz (430 g)

Harmonized System (HS) code

85176990

Internal memory

128 MB

AC input frequency

50 - 60 Hz

Width

6.22" (158 mm)

Height

1.06" (27 mm)

AC input voltage

100 - 240 V

Certification

CE, FCC, VCCI Class B, C-Tick

Depth

3.98" (101 mm)

Package weight

27.5 oz (780 g)

Memory type

RAM

Master (outer) case width

8.43" (214 mm)

Master (outer) case length

18.7" (474 mm)

Master (outer) case height

12.3" (312 mm)

Master (outer) case weight

12.1 lbs (5.49 kg)

Quantity per master (outer) case

6 pc(s)

Package width

8.9" (226 mm)

Package depth

10.6" (270 mm)

Package height

2.52" (64 mm)

LED indicators

Activity, LAN, Link, PoE, Power, Speed

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Input current

1.25 A

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-TX

Networking standards

IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

Manual

Yes

Power consumption (max)

5.5 W

Flash memory

32 MB

Security algorithms

802.1x RADIUS

Supported network protocols

HTTP, HTTPS

Mean time between failures (MTBF)

2388657 h

Operating altitude

0 - 118110.2" (0 - 3000 m)

Non-operating altitude

0 - 118110.2" (0 - 3000 m)

Quality of Service (QoS) support

Yes

Switch type

Managed

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

Full duplex

Yes

Switching capacity

16 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Packet buffer memory

0.5 MB

Firmware upgradeable

Yes

Rate limiting

Yes

MAC address filtering

Yes

Management protocols

SNMP

Power over Ethernet (PoE)

No

Access Control List (ACL)

Yes

DC input voltage

54 V

Stackable

No

Switch layer

L2

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Number of VLANs

64

MAC address table

8000 entries

DHCP features

DHCP client

Multicast support

Yes

Heat dissipation

18.66 BTU/h

Port mirroring

Yes

IGMP snooping

Yes

Power supply included

Yes

MAC address auto-learning supported

Yes

Data link protocols

Ethernet, Fast Ethernet, Gigabit Ethernet

Switching protocols

SNMP

Number of multicast groups filtered

256

IPv4 multicast entries

32

Access Control List (ACL) IPv6 entries

100

Processor frequency

500 MHz

Specific References

UPC

606449138634

EAN13

0606449138634

MPN

GS108T-300PES
