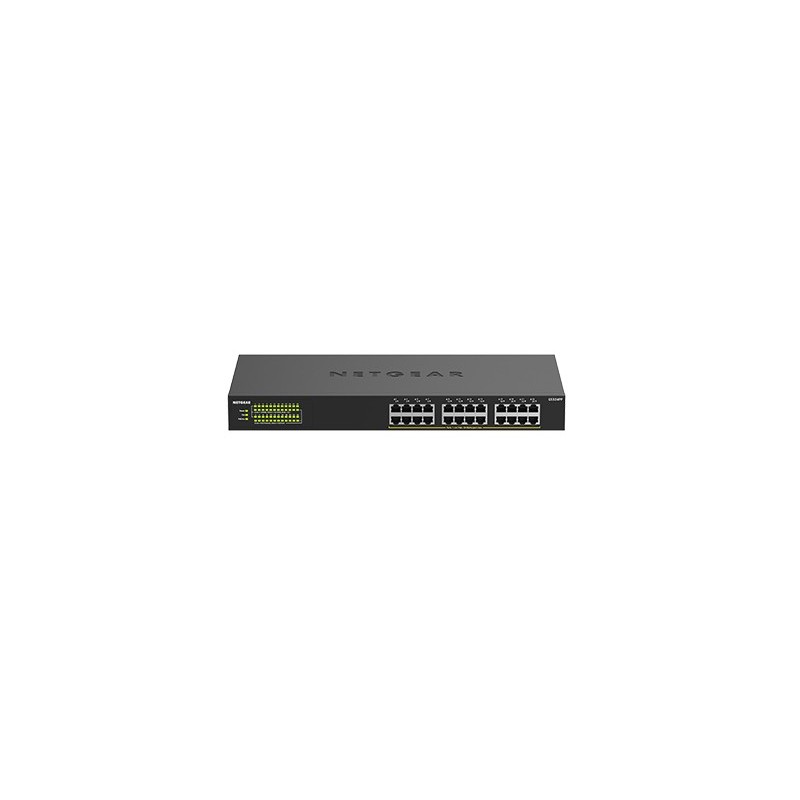

GS324PP-100EUS

Data sheet

Product color

Black

Weight

7.28 lbs (3.3 kg)

Harmonized System (HS) code

85176990

AC input frequency

50 - 60 Hz

Width

17.3" (440 mm)

Height

1.69" (43 mm)

AC input voltage

100 - 240 V

Certification

CB, CE LVD, UL

Depth

8.03" (204 mm)

LED indicators

Activity, Link, PoE, Power, Speed

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 95%

Number of fans

2 fan(s)

Auto MDI/MDI-X

Yes

Input current

8 A

Networking standards

IEEE 802.1p, IEEE 802.3at

Housing material

Metal

Power consumption (max)

400 W

Mean time between failures (MTBF)

667762 h

Operating altitude

0 - 118110.2" (0 - 3000 m)

Quality of Service (QoS) support

Yes

Switch type

Unmanaged

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

10G support

No

Full duplex

Yes

Switching capacity

48 Gbit/s

Jumbo frames support

Yes

Jumbo frames

10000

Packet forwarding rate (1 Gbps)

1448000 pps

Packet buffer memory

0.192 MB

Power over Ethernet (PoE)

Yes

Rack mounting

Yes

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

Auto-negotiation

Yes

MAC address table

8000 entries

Queue scheduling algorithms

Weighted Round Robin (WRR)

Electromagnetic compatibility

CE, FCC 15 A, IC A, RCM, VCCI, KC

Power over Ethernet plus (PoE+) ports quantity

24

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

380 W

Latency (1 Gbps)

4 µs

Specific References

UPC

606449144826

EAN13

0606449144826

MPN

GS324PP-100EUS
