GSM4248UX-100EUS

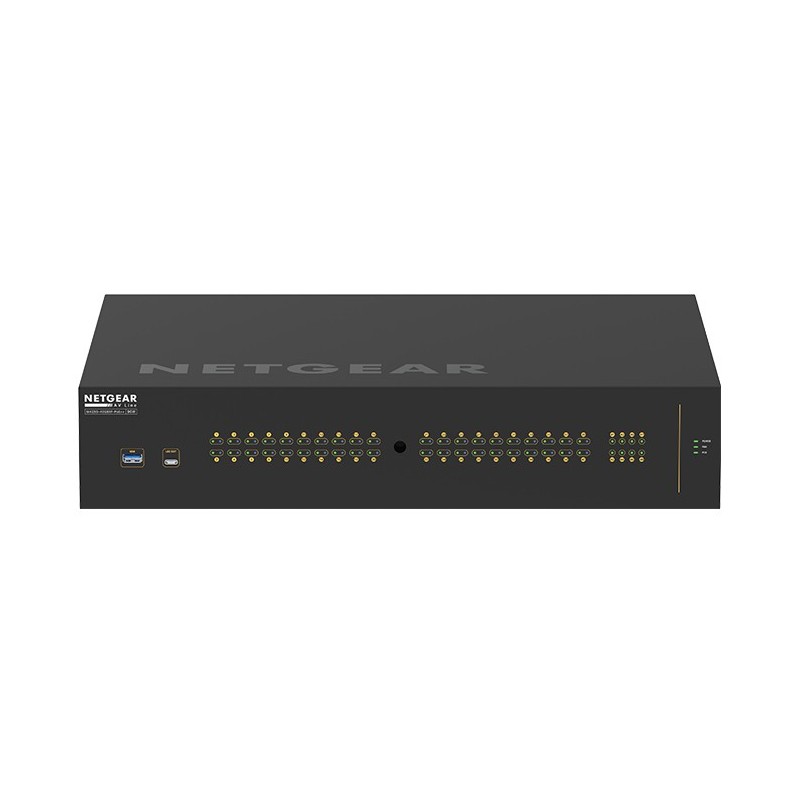

NETGEAR M4250-40G8XF-PoE++, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 2U
Description
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.
Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
M4250 AV Line Switches
An entirely new series of switches developed and engineered for the growing AV over IP market.
NETGEAR M4250-40G8XF-PoE++. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 40, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting, Form factor: 2U
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.
Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
M4250 AV Line Switches
An entirely new series of switches developed and engineered for the growing AV over IP market.
NETGEAR M4250-40G8XF-PoE++. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 40, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting, Form factor: 2U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 8 |
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Throughput | 178.56 Mpps |
| Latency (1 Gbps) | 2.78 µs |
| Latency (10 Gbps) | 0.73 µs |
| Jumbo frames support | Yes |
| Rack mounting | Yes |
| Form factor | 2U |
| Product color | Black |
| Noise level | 60 dB |
| Fanless | Yes |
| Power supply included | Yes |
| Power consumption (typical) | 912 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Total Power over Ethernet (PoE) budget | 2880 W |
| Heat dissipation | 3113.57 BTU/h |
| Width | 17.3" (440 mm) |
| Depth | 3.4" (86.4 mm) |
| Height | 13.8" (350 mm) |
| Weight | 22.7 lbs (10.3 kg) |
| Cables included | LAN (RJ-45), USB Type-C |
| User guide | Yes |
| Rack mount kit | Yes |
| Rack rails | Yes |
| Harmonized System (HS) code | 85176990 |
Product Details
22 Items
New
Data sheet
- Product color
- Black
- USB 2.0 ports quantity
- 1
- Weight
- 22.7 lbs (10.3 kg)
- Harmonized System (HS) code
- 85176990
- Width
- 17.3" (440 mm)
- Height
- 13.8" (350 mm)
- Depth
- 3.4" (86.4 mm)
- User guide
- Yes
- Cables included
- LAN (RJ-45), USB Type-C
- Networking standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Power consumption (typical)
- 912 W
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 40
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- 10G support
- Yes
- Switching capacity
- 240 Gbit/s
- Jumbo frames support
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- Active PoE
- Rack mounting
- Yes
- Switch layer
- L2/L3
- MAC address table
- 16000 entries
- Power over Ethernet plus (PoE+) ports quantity
- 40
- Total Power over Ethernet (PoE) budget
- 2880 W
- Heat dissipation
- 3113.57 BTU/h
- SFP+ module slots quantity
- 8
- Noise level
- 60 dB
- Power supply included
- Yes
- Rack mount kit
- Yes
- Throughput
- 178.56 Mpps
- Fanless
- Yes
- Latency (1 Gbps)
- 2.78 µs
- Rack rails
- Yes
- Latency (10 Gbps)
- 0.73 µs
- Formfaktor
- 2U
Specific References
- UPC
- 606449151763
- EAN13
- 0606449151763
- MPN
- GSM4248UX-100EUS
