CHF343.6
tax incl.
CHF317.9
tax excl.
In stock
CHF144.7
tax incl.
CHF133.9
tax excl.
In stock
Description
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.

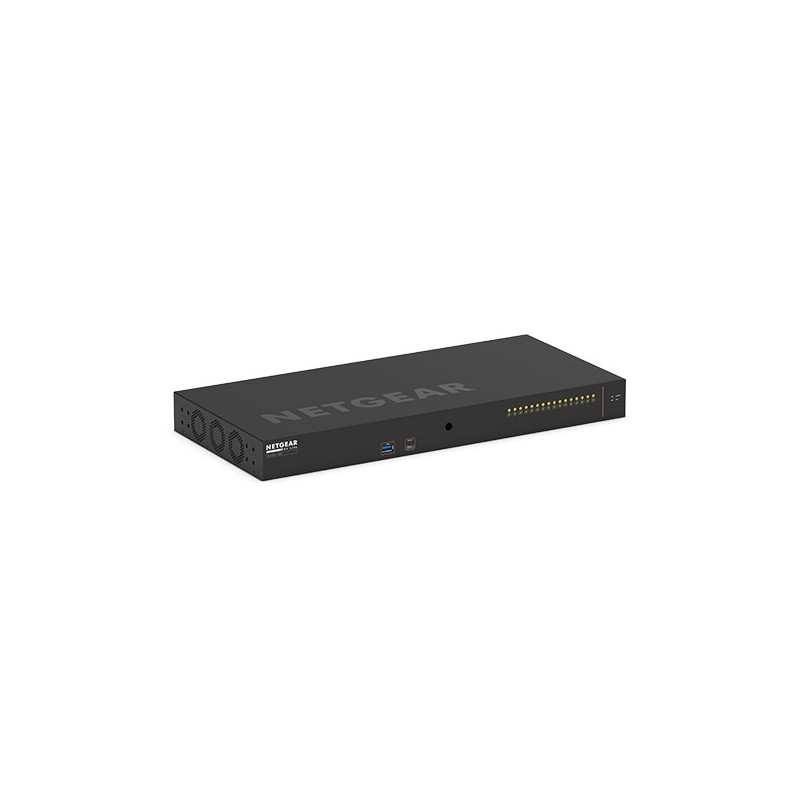

NETGEAR M4250-16XF. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/USB Type-C. Full duplex. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
NETGEAR M4250-16XF. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/USB Type-C. Full duplex. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 16 |
| Console port | RJ-45/USB Type-C |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Throughput | 238.08 Mpps |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 1.274 µs |
| Latency (10 Gbps) | 0.811 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| Multicast support | Yes |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
| Rack mounting | Yes |
| Form factor | 1U |
| Product color | Black |
| LED indicators | PoE, Power, Status |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1250 MHz |
| Internal memory | 2048 MB |
| Noise level | 56.7 dB |
| Mean time between failures (MTBF) | 778769 h |
| Power consumption (typical) | 47.84 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 163.33 BTU/h |
| Width | 17.3" (440 mm) |
| Depth | 3.94" (100 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 3.84 lbs (1.74 kg) |
| Harmonized System (HS) code | 85176990 |
Product Details
15 Items
New
Data sheet
- Product color
- Black
- Weight
- 3.84 lbs (1.74 kg)
- Harmonized System (HS) code
- 85176990
- Internal memory
- 2048 MB
- Processor model
- ARM Cortex-A9
- Width
- 17.3" (440 mm)
- Height
- 1.7" (43.2 mm)
- Depth
- 3.94" (100 mm)
- LED indicators
- PoE, Power, Status
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Built-in processor
- Yes
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
- Power consumption (typical)
- 47.84 W
- Mean time between failures (MTBF)
- 778769 h
- Operating altitude
- 0 - 118110.2" (0 - 3000 m)
- Quality of Service (QoS) support
- Yes
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- Basic switching RJ-45 Ethernet ports type
- No
- 10G support
- Yes
- Full duplex
- Yes
- Switching capacity
- 320 Gbit/s
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 12000
- Packet buffer memory
- 16 MB
- Rate limiting
- Yes
- Power over Ethernet (PoE)
- No
- VLAN support
- Yes
- Virtual LAN features
- MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Access Control List (ACL)
- Yes
- Console port
- RJ-45/USB Type-C
- Rack mounting
- Yes
- Switch layer
- L2/L3
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Spanning tree protocol
- Yes
- Number of VLANs
- 4093
- MAC address table
- 16000 entries
- DHCP features
- DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
- Authentication type
- RADIUS
- Multicast support
- Yes
- Heat dissipation
- 163.33 BTU/h
- SFP+ module slots quantity
- 16
- Number of queues
- 8
- IGMP snooping
- Yes
- SSH/SSL support
- Yes
- Loop protection
- Yes
- BPDU filtering/protection
- Yes
- Authentication
- MAC-based authentication
- Noise level
- 56.7 dB
- Throughput
- 238.08 Mpps
- Latency (1 Gbps)
- 1.274 µs
- IPv4 multicast entries
- 2000
- IPv6 multicast entries
- 2000
- Latency (10 Gbps)
- 0.811 µs
- Formfaktor
- 1U
- Processor frequency
- 1250 MHz
Specific References
- UPC
- 606449149708
- EAN13
- 0606449149708
- MPN
- XSM4216F-100EUS
