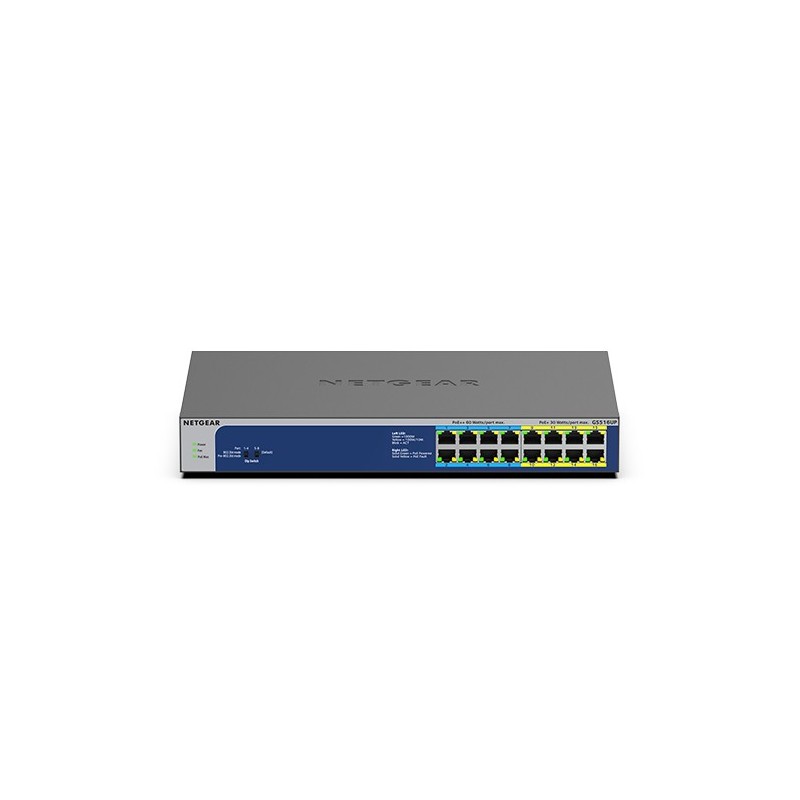

GS516UP-100EUS

Instant Connectivity and Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516UP joins the series and offers 8 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 380W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.

The GS516UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Powerful Ultra60 PoE++
Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS516UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.

NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power.

The GS516UP includes 8 UltraPoE++ ports that can deliver up to 60W of power per port.

PoE Mode
Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS516UP solves this problem by providing power to both pre-bt and bt standard devices.

- GS516UP by default uses 802.3bt standard, only compatible for bt standard devices
- 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power
- Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power
- If the GS516UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)

NETGEAR GS516UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE.... Power over Ethernet (PoE). Rack mounting

Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u
10G support	No
Full duplex	Yes
Half duplex	Yes
Auto MDI/MDI-X	Yes
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Latency (1 Gbps)	12 µs
Jumbo frames support	Yes
Packet forwarding rate (1 Gbps)	1448000 pps
Packet buffer memory	0.192 MB
Rack mounting	Yes
Product color	Gray
Housing material	Metal
LED indicators	Activity, Link, PoE, Power, Speed
Number of fans	3 fan(s)
Mean time between failures (MTBF)	1213791 h
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	8 - 4 A
Power consumption (max)	456.8 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	60 W
Total Power over Ethernet (PoE) budget	380 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Heat dissipation	1559.5152 BTU/h
Width	15.4" (390 mm)
Depth	8.66" (220 mm)
Height	1.69" (43 mm)
Weight	5.73 lbs (2.6 kg)
Harmonized System (HS) code	85176990
