SwitchBlade x3100 Series access edge chassis switches are available in either 12- or 6-slot versions and primarily targeted for service provider fiber access networks. Equally at home in the enterprise network edge or in the data center, the SwitchBlade x3100 is designed to deliver high availability and maximum performance with a wirespeed non-blocking backplane and high port count.

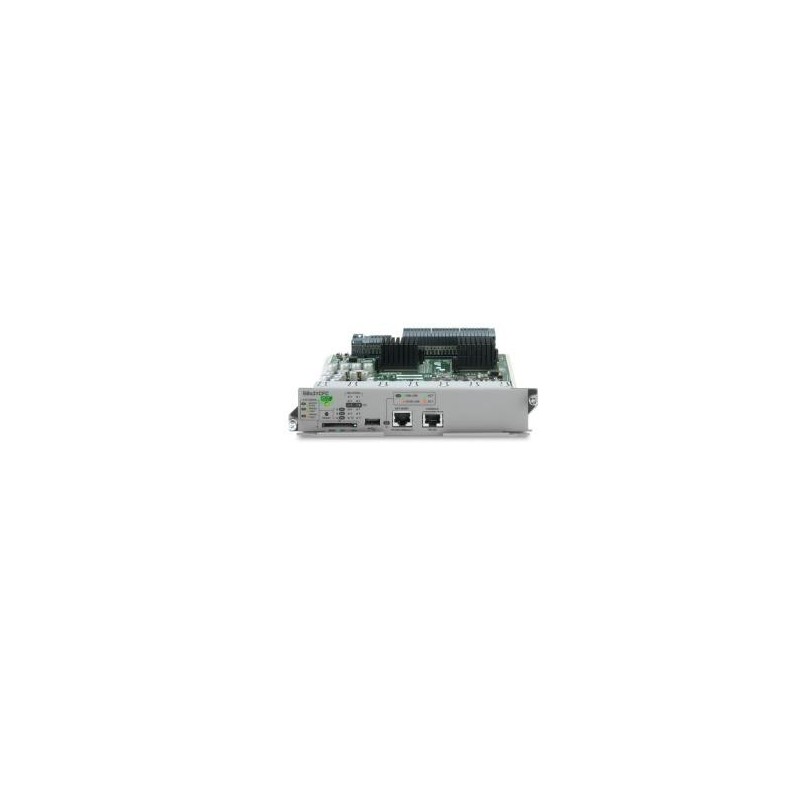

Allied Telesis AT-SBx31CFC. Product color: Gray, Heat dissipation: 206.01 BTU/h. Connectivity technology: Wired. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 48.3 W. Safety: CULUS, TUV, C-TICK, CE, Certification: FCC Class A, EN55022 Class A, CISPR Class A, ICES 003 Class A EN55024 EN60950-1 (TUV), UL60950-1.... Internal memory: 512 MB
Product color
Gray
Internal
Yes
LED indicators
Yes
Heat dissipation
206.01 BTU/h
Connectivity technology
Wired
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
48.3 W
Safety
CULUS, TUV, C-TICK, CE
Certification
FCC Class A, EN55022 Class A, CISPR Class A, ICES 003 Class A
EN55024
EN60950-1 (TUV), UL60950-1 (CULUS), EN60825
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Non-operating altitude
196.9 - 3740.2" (5 - 95 m)
Internal memory
512 MB
Dimensions (WxDxH)
8.14 x 12.3 x 1.6" (206.7 x 313.2 x 40.6 mm)
Weight
2.4 lbs (1.09 kg)
Product Details
2026-01-28
New
Data sheet
Product color
Gray
Connectivity technology
Wired
Weight
2.4 lbs (1.09 kg)
Internal
Yes
Internal memory
512 MB
AC input frequency
50 - 60 Hz
AC input voltage
100-240 V
Certification
FCC Class A, EN55022 Class A, CISPR Class A, ICES 003 Class A
EN55024
EN60950-1 (TUV), UL60950-1 (CULUS), EN60825
