MC1400

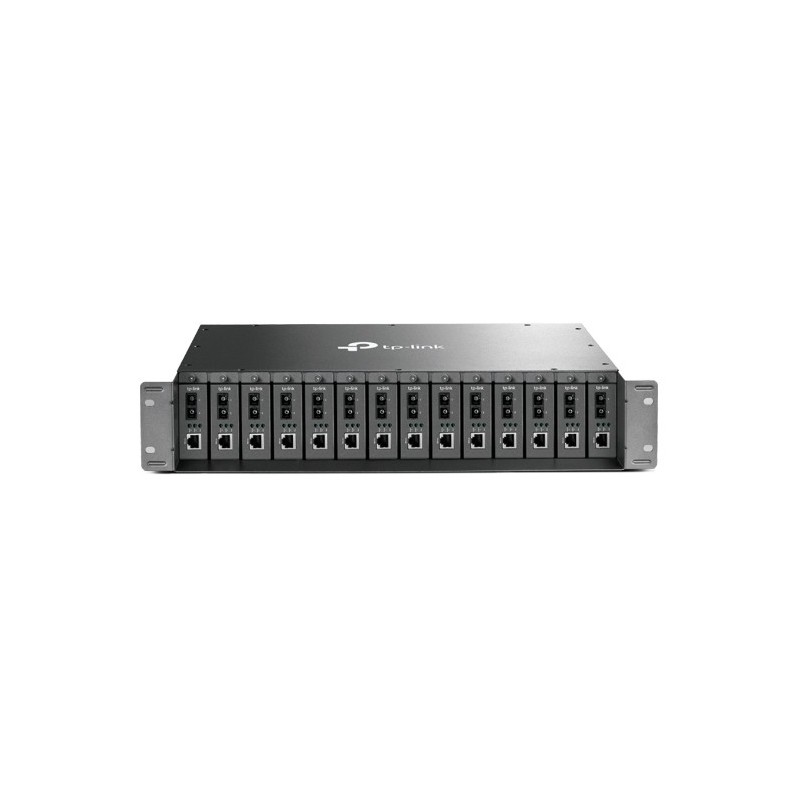

The TL-MC1400 14-Slot Rack-mount Chassis is specially designed to accommodate 14 TP-LINKs Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.

Features
- 14 bays to house up to 14 media converters;
- Standard 19-inch rack-mountable with, 2U height;
- - Optional redundant power supply to ensure non-stop reliable operation;
- Provides hot-swapping of media converters and redundant power supplies;
- - Two cooling fans (internal) mounted at the rear panel for system cooling;
- Media converter power isolation for electrical isolation from each bay;
- Offers over-voltage and over-current protections.

TP-Link TL-MC1400 V3. Power requirements: 100-240V, AC input frequency: 50 - 60 Hz, AC adapter output voltage: 9.5 V. Width: 19" (482 mm), Depth: 14.1" (358 mm), Height: 3.39" (86 mm)

Rack capacity	2U
Dimensions (WxDxH)	19 x 14.1 x 3.39" (482 x 358 x 86 mm)
Size (imperial)	19"
Ports quantity	14
Number of fans	2 fan(s)
Power requirements	100-240V
AC input frequency	50 - 60 Hz
AC adapter output voltage	9.5 V
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	19" (482 mm)
Depth	14.1" (358 mm)
Height	3.39" (86 mm)
Weight	17.6 lbs (8 kg)
